Chain Feeder Carton Box Printing Slotting Die Cutting Machine | WELLDOING

Products Details

Products Description

The semi-automatic cardboard box printing die-cutting machine is an important equipment in cardboard box packaging production. The following is its related introduction: Working principle Printing principle: Similar to the semi-automatic cardboard box printing machine, there are methods such as flexographic printing. The ink is transferred to the graphic and text parts of the flexible printing plate through a mesh roller. When the cardboard passes between the printing plate roller and the pressure roller, the ink is transferred to the cardboard under pressure to form the graphic and text.

Die cutting principle: Using a steel knife, steel wire (or a template carved from steel plate), applying a certain pressure through an embossing plate, the printed product or cardboard is rolled into a certain shape. For example, flatbed die-cutting is the process of pressing a pressure plate onto a board and cutting it; Circular die cutting is a process of die-cutting cardboard using a reciprocating flat plate table and a rotating cylindrical pressure roller; Circular die cutting is the process of cutting cardboard by clamping it between a molded plate roller and a pressure roller.

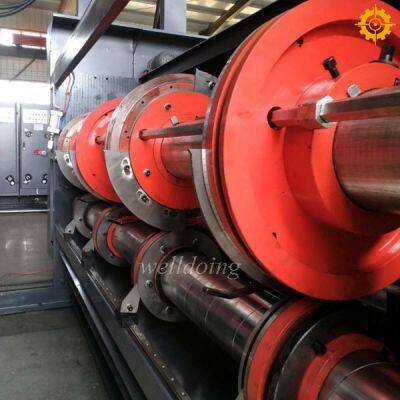

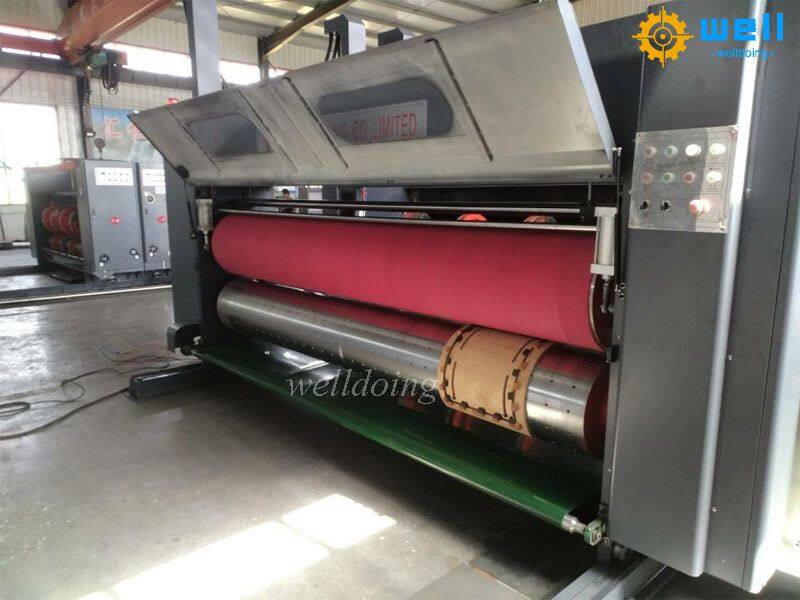

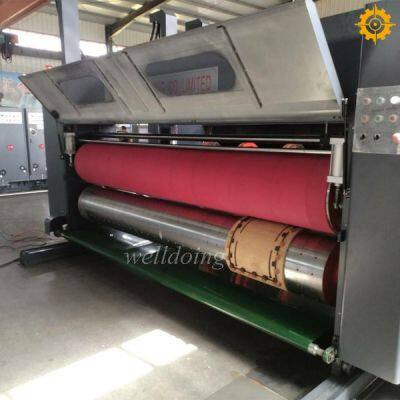

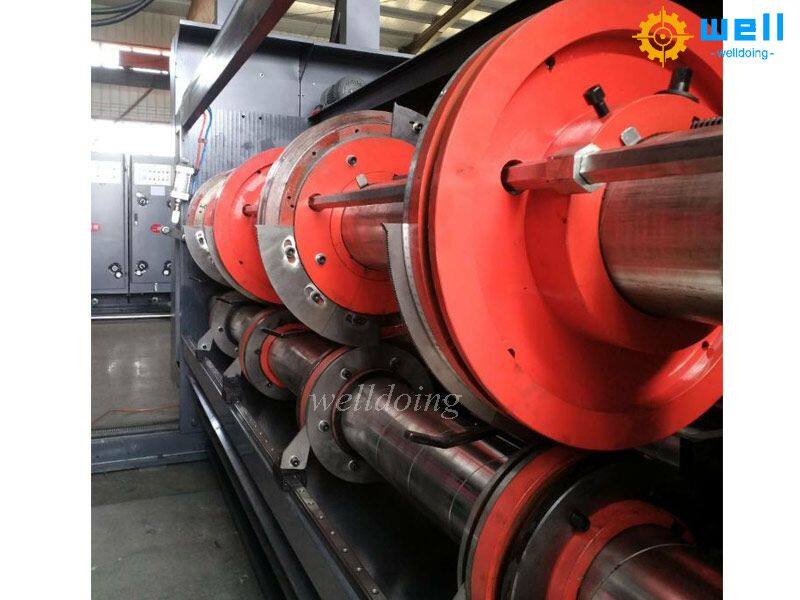

The structural composition of the printing part includes a paper feeding mechanism, plate rollers, ink rollers, scrapers, drying devices, etc. The paper feeding mechanism manually feeds the cardboard in, the plate rollers complete the ink transfer and printing, and the drying device dries the printed cardboard. Die cutting part: composed of a plate table, a cutting mechanism, cutting tools, molds, etc. The plate table and cutting mechanism can be flattened, round flattened, or round pressed according to different types. The cutting tools and molds can be replaced and adjusted according to the shape and size requirements of the cardboard box.

Control system: used to control the printing speed, ink volume, printing position, as well as the pressure, speed, accuracy and other parameters of die-cutting. It generally has a human-computer interaction interface for parameter setting and operation. Features and advantages: high flexibility: printing patterns, colors, die-cutting shapes, sizes, etc. can be flexibly adjusted according to different order requirements, suitable for small batch and multi variety carton production.

Lower cost: Compared to fully automated equipment, the price is lower, the initial investment is smaller, and manual participation in some operations reduces production costs to a certain extent. Easy to operate: After simple training, operators can master the operating methods, and the technical level requirements for operators are relatively low.

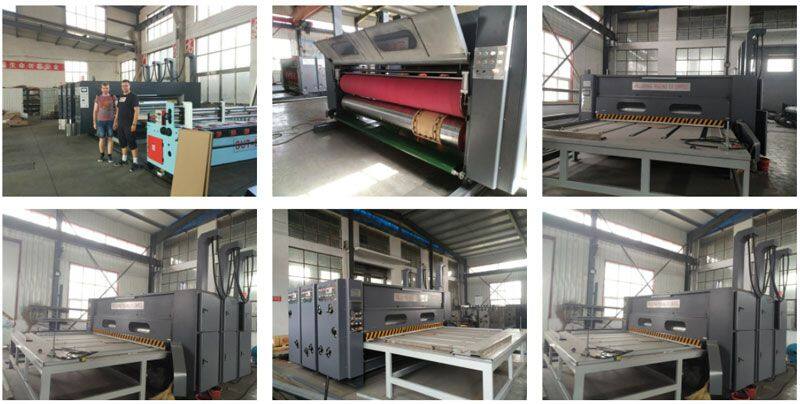

Finished Products
