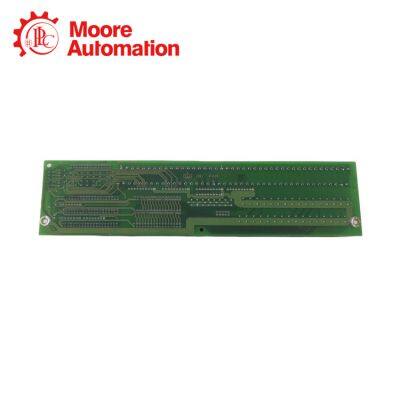

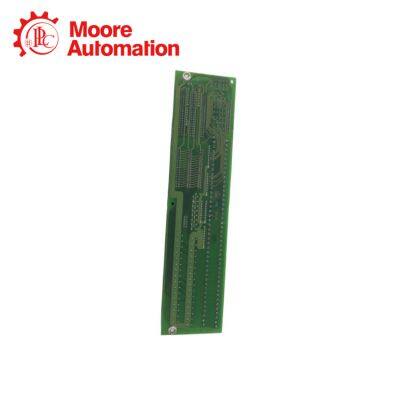

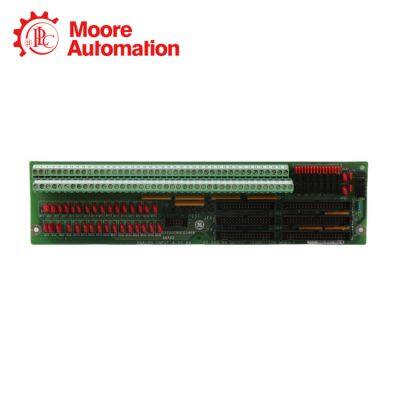

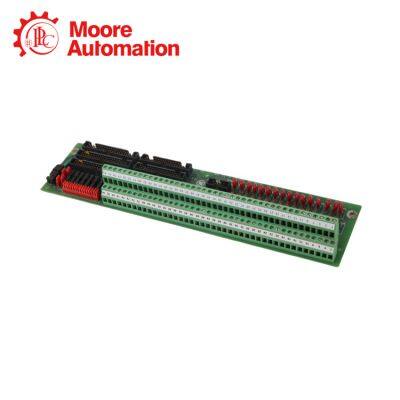

GE DS200TBQCG1ABB Analog Input Milliamp I/O Termination Module NEW

Manufacturers: GE

Part number: DS200TBQCG1ABB

Description: Analog Input Milliamp I/O Termination Module

Original from: USA

Series: Mark V LM

Number of channels: 12

Common Mode Voltage Range: +5 V dc

Maximum Lead Resistance: 15Ω

Analog output current: 0-20 mA

Operating temperature: -30 to 55 °C

Size: 8.26 cm high x 4.18 cm

Frequency: 50 or 60 Hz

Part Type: New

Customs Tariff: 8537101190

Shipping from: Xiamen, Fujian

MAQ: 1 PC

DS200TBQCG1ABB is an analog input milliampere input/output terminal module manufactured and designed by General Electric, and is part of the Mark V series used in GE Speedtronic gas turbine control systems. The Analog Input Termination Module (TBQC) is located at the ninth position on and. TBQC connects the 4-20mA input and LVDT/R position input to the corresponding cores of the TCQA board. Read 20-200mA output from the corresponding core TCQA board. By using the hardware jumper on the TBQC terminal board, the output can be configured for a maximum current of 20mA or 200mA. It is used to interface analog signals (usually 4-20mA current signals) with control systems such as PLCs (Programmable Logic Controllers). These modules are used to monitor analog sensors such as temperature, pressure, or flow sensors, which provide output in the form of current.

Moore is a very honest and trustworthy company, and we believe that fair prices will result in long-standing customer relationships.

At Moore, you will work with a customer manager who will be responsible for any inquiries you make. This account manager has undergone comprehensive

training to understand that you are looking for the highest quality, most favorable price, and fastest delivery time. Your account manager will be completely

open and honest, and always available to assist you, even with the smallest issues.

Sales manager: Lucky

Email: cn@mooreplc.com

mobile/whatsapp: +86 18020716847

wechat: +86 18020716847

Address: No.388 , Hubin south Road ,Siming district , Xiamen , Fujian,China

Warranty: We offer a one-year warranty for all original new products.

Delivery: We will choose DHL/FEDEX/TNT/UPS

Payment method: 100% advance payment bank wire transfer

Return: If there is a quality issue with the product within one year from the date of receipt, you can return it for replacement.
