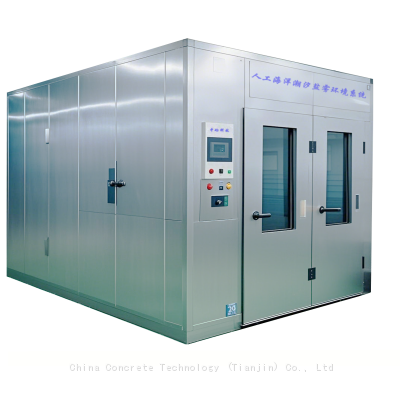

HCYF type artificial ocean tidal salt spray environment simulation system

Product Usage

The artificial ocean tidal salt spray environment system is a device used to reproduce the ocean tidal environment under laboratory conditions. By simulating complex conditions such as tidal fluctuations, frequency of seawater erosion, salt spray erosion, wet dry alternation, sea breeze level, rain, and environmental temperature, it can also simultaneously simulate the comprehensive environment of ocean tidal environment and ocean salt spray.

To study the durability and corrosion resistance of concrete in marine environments, evaluate durability, optimize materials and design, verify structural stability, predict lifespan, guide maintenance strategies, improve economic and environmental performance, and promote the development of relevant technical standards, providing scientific basis, while reducing safety hazards in actual engineering.

Through this system, the reliability of concrete in harsh marine environments can be significantly improved, providing technical support for the "Maritime Power" strategy.

Purpose of the experiment

1. Simulate real ocean environment

Reproduce tidal cycles (high tide, low tide), salt spray, seawater immersion and other conditions in the laboratory to compensate for the long and uncontrollable natural exposure test cycle.

2. Accelerate material aging

By strengthening corrosion factors (such as high salt concentration, temperature and humidity fluctuations), shortening the test cycle, and rapidly evaluating the durability of concrete.

3. Optimize material design

Provide data support for the proportioning design of new types of concrete, such as corrosion-resistant concrete and marine concrete, and screen one of the solutions for impermeability and chloride ion resistance.

4. Save costs and time

Avoiding the high cost of long-term testing in real marine environments, predicting material failure risks in advance, and reducing engineering maintenance costs.

5. Tide cycle simulation

1. Automatically control the rise and fall of water level, simulate multiple tidal cycles per day (such as 6-hour high tide/6-hour low tide);

2. Support the setting of different tidal ranges (such as high tide and low tide) to adapt to the simulation needs of different sea areas.

technical parameter

1. System functions: Marine environment simulation, salt spray test, tidal erosion test, high and low temperature test, sunshine test, wind speed simulation test, dry wet cycle test;

2. Control system: color touch screen;

3. Temperature range: 20 ℃~65 ℃ (customizable);

4. Salt solution concentration: 3.5% simulated standard seawater (adjustable by oneself);

5. Tide simulation: Standard 6/12 hour refers to half day tide or full day tide, and users can set the time themselves;

6. Water level rise and fall speed: 0.1~10 cm/min (adjusted according to experimental requirements);

7. Immersion depth: 5-45cm can be set;

8. Tide cycle times: adjustable from 0 to 9999 times;

9. Salt spray spray volume: 1.0~3.5ml/80 (cm2 • h);

10. Salt spray diameter: 5-10 μ m;

11. Sunlight simulation: simulated sunlight irradiation system;

12. Rain simulation: 0-26cm/h;

13. Wind speed system: Variable frequency turbo blower, adjustable wind speed and temperature;

14. Refrigeration system: fully enclosed imported compressor;

15. Equipment material: Key parts are made of 316 stainless steel;

16. Tide test slot size: standard 4 * 2 * 0.5m, customizable;

17. System footprint size: approximately 4 * 6.5 * 2m;

18. Power supply, power: 380V 50Hz, 20Kw;

19. Protection functions: high temperature protection, high and low voltage protection, missing item protection, overload protection, water shortage protection, and other software and hardware protection measures.

Before purchasing equipment, it is necessary to contact our unit to determine the user's testing requirements and equipment installation environment!
