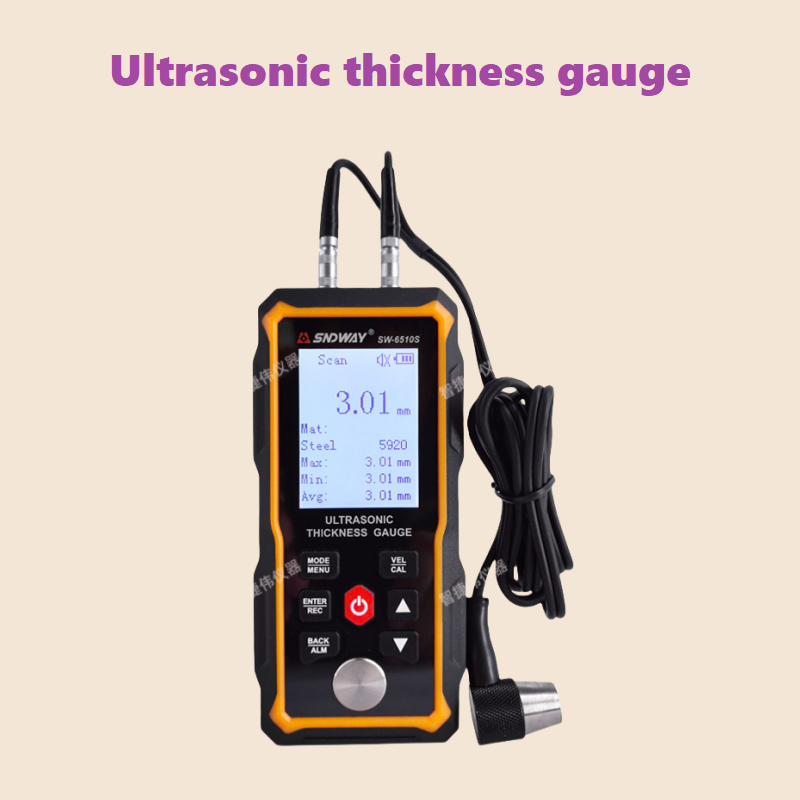

Thickness Gauge

This instrument is an intelligent ultrasonic thickness gauge. It adopts the latest high-performance, low-power microprocessor technology. Based on the principle of ultrasonic measurement, it can measure the thickness of metals and other materials, and can measure the sound speed of materials. It can monitor various pipes and pressure vessels in production equipment, monitor their thinning degree after being corroded during use, and can also accurately measure various plates and various processed parts. This instrument can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields.

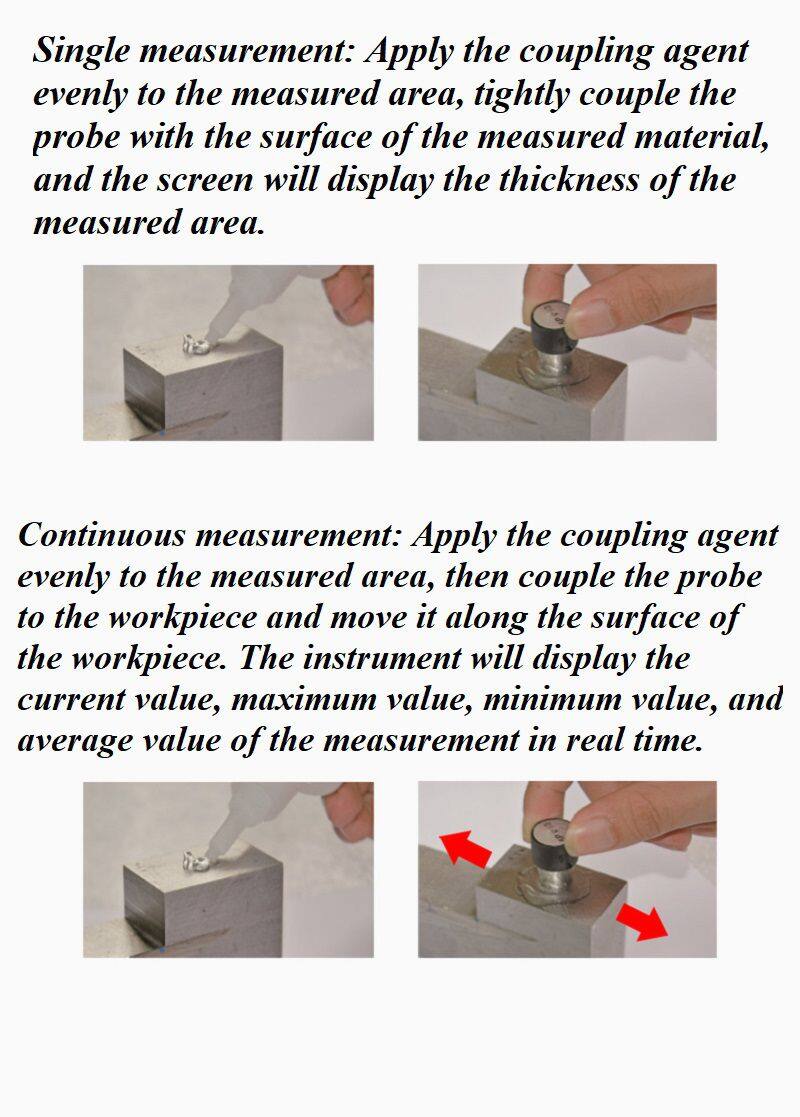

Working principle ：The thickness measurement of this ultrasonic thickness gauge is that the ultrasonic pulse generated by the probe passes through the couplant to reach the measured object, part of the ultrasonic signal is reflected by the bottom surface of the object, and the probe receives the echo reflected by the bottom surface of the measured object, and accurately calculates the ultrasonic wave round-trip time, and calculate the thickness value according to the formula, and then display the calculation result.

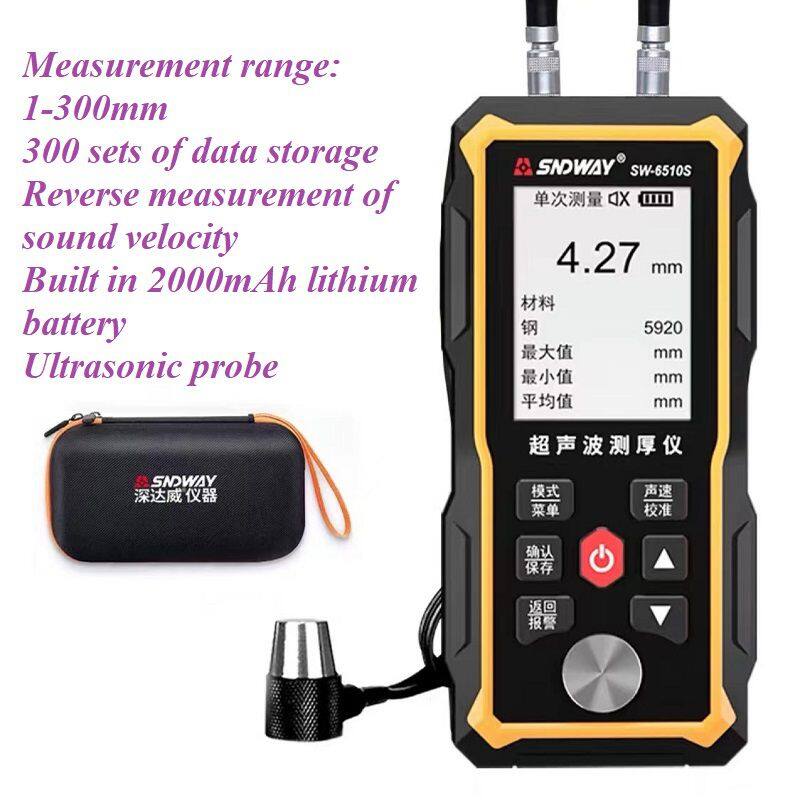

Product Features ：

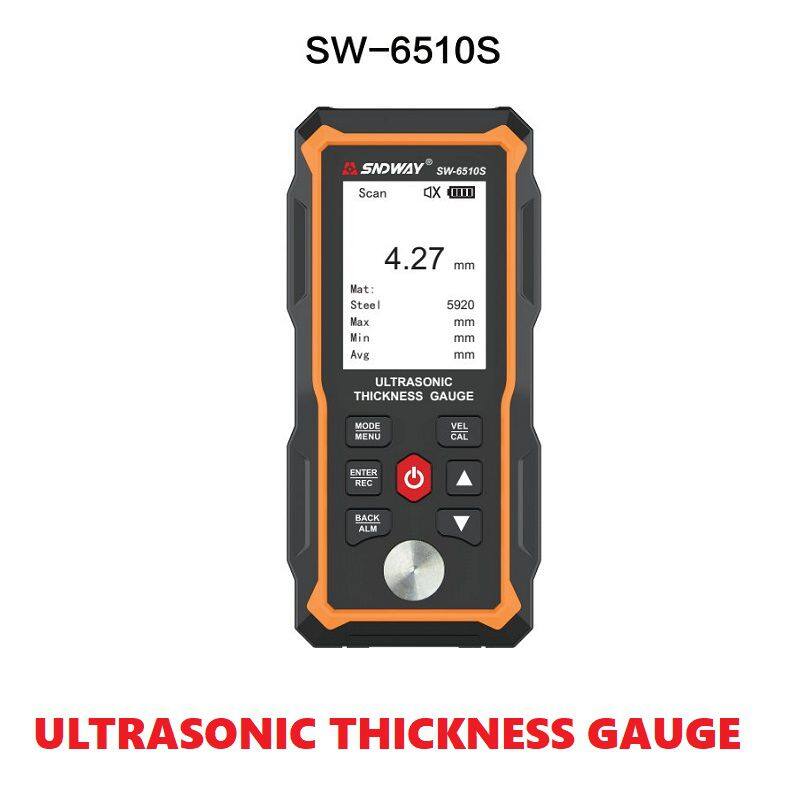

A. 2.4 inch black and white dot matrix screen

B. English display interface

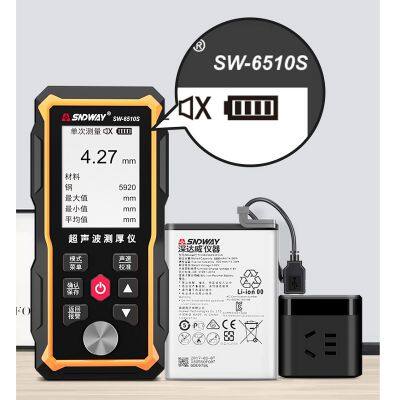

C. Built-in 2000mAh lithium battery

D. DC 5V/1A charging Type-C interface

E. 300 stored dat
