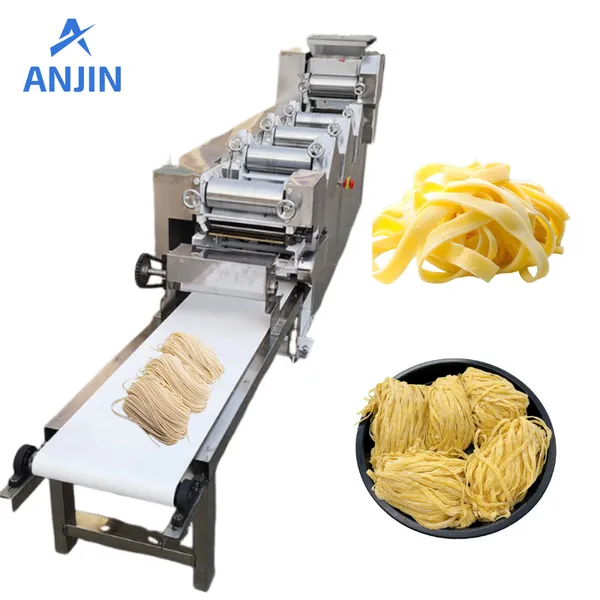

Automatic Fresh Noodle Making Machine Noodle Maker Noodle Forming Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
ANJIN
Place of Origin:
China
Model Number:
AJ-5-250A
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Related Products
-
Automatic Flour Mixer Powder Mixing Machine for Noodle Making MachineNegotiableMOQ: 1 Set -
Automatic Dry Stick Noodle Cutting MachineNegotiableMOQ: 1 Set
-
Automatic Diamond Chinchin Cutting Machine Chinchin Making MachineNegotiableMOQ: 1 Set
-
Automatic Dry Noodle Making Machine Stick Noodle Maker Noodle Forming MachineNegotiableMOQ: 1 Set
-
Automatic Encrusting Machine for Kubba, Mochi ,Falafel ,Momo Forming MachineNegotiableMOQ: 1 Set
Brand Name
ANJIN
Place of Origin
China
Model Number
AJ-5-250A
Type
Pastry
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Weight
510kg
Dimension(L*W*H)
3kw 1700×680×1370mm
Production Capacity
140-160Kg/h
Voltage
380/220V（50/60HZ） 1/3phase
Certification
CE
Condition
New
Power(W)
3000
This noodle-making machine can make fresh or wet noodles and dry stick noodles with different capacities. The more rollers with the equipment the more tasty of the finished noodles. By replacing the knives with different shapes or sizes of noodles.
Feature of Fresh Noodle Making Machine:
1. Full steel gear transmission, full bearing, small dimension, and compact structure;
2. Automatic conveying in the entire process, forming for one time, automatic cutting and hanging on rod and rising.
3. Noodles making machine is fitted with a heavy-duty mild steel fabricated structure;
4. Easy operation, rapid production, and the thickness of noodles is adjustable;
2. Automatic conveying in the entire process, forming for one time, automatic cutting and hanging on rod and rising.
3. Noodles making machine is fitted with a heavy-duty mild steel fabricated structure;
4. Easy operation, rapid production, and the thickness of noodles is adjustable;
Usage scenarios
Production of dried noodles, multi-grain noodles, vegetable nutritious noodles, colored noodles, hot dry noodles, hand-rolled noodles
Production of dried noodles, multi-grain noodles, vegetable nutritious noodles, colored noodles, hot dry noodles, hand-rolled noodles
Supporting equipment:
Flour mixer, elevator, noodle proofing machine, dryer, noodle steamer, Dry noodle cutting machine, packaging machine etc.
Finished Product:
Parameter datas:
| Model | Capacity | Voltage | Power | Dimension | weight |
| AJ-5-250A | 140-160Kg/h | 380V50HZ3P | 3kw | 1700×680×1370mm | 510kg |
| AJ-6-260A | 200-260Kg/h | 380V50HZ3P | 3kw | 2200×700×1370 | 680kg |
| AJ-6-300A | 250-300Kg/h | 380V50HZ3P | 4kw | 2200×750×1370 | 700kg |
| AJ-7-300A | 250-300Kg/h | 380V50HZ3P | 4kw | 2900×750×1370 | 750kg |
| AJ-7-350A | 280-320Kg/h | 380V50HZ3P | 4kw | 2900×800×1370 | 780kg |
| AJ-9-300A | 250-300Kg/h | 380V50HZ3P | 6kw | 4400×800×1370 | 1050kg |
| AJ-9-350A | 280-350Kg/h | 380V50HZ3P | 6kw | 4400×850×1370 | 1200kg |
Common Knives specification:
Flat knives:0.75mm, 1mm, 1.25mm, 1.5mm, 1.75mm, 2mm, 3mm, 4mm, 5, 6, 8, 10, 12, 15, 20mm;
Round knives: 1.25mm, 1.5mm, 1.75mm, 2mm, 2.5mm;
(Three flat knives are standard when shipped from the factory, and the price difference needs to be paid when replacing other knives)
