AB 1746-ITV16 | |
|
Manufacturer: ALLEN BRADLEY Product ID: 1746-ITV16 Description: SLC 500 sourcing discrete input module Original from: USA |
Part Type: New Customs Tariff: 8537101190 Shipping from: Xiamen, Fujian MAQ: 1 PC |
|
Dimensions: 3.6x13x14cm Weight: 0.22kg
Series: SLC 500 Product series: PowerFlex 400 Nominal input voltage: 24VDC Input voltage range: 10-30VDC Wiring configuration: Source wiring configuration Backboard current consumption: 0.085A Maximum signal delay: turn-on=0.3ms; Close=0.5 milliseconds Disconnected state voltage, maximum: 5VDC Disconnected current, maximum value: 1.0 mA Nominal input current: 8mA at 24VDC Voltage range: 10-30 volts DC power supply Input: 16 Backboard current (5V DC): 85mAh Signal delay: 0.3 or 0.5 milliseconds Turn off current: 1.5mA

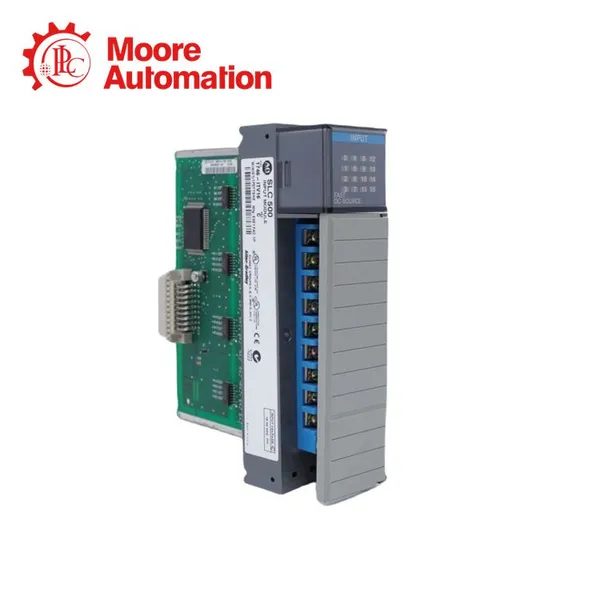

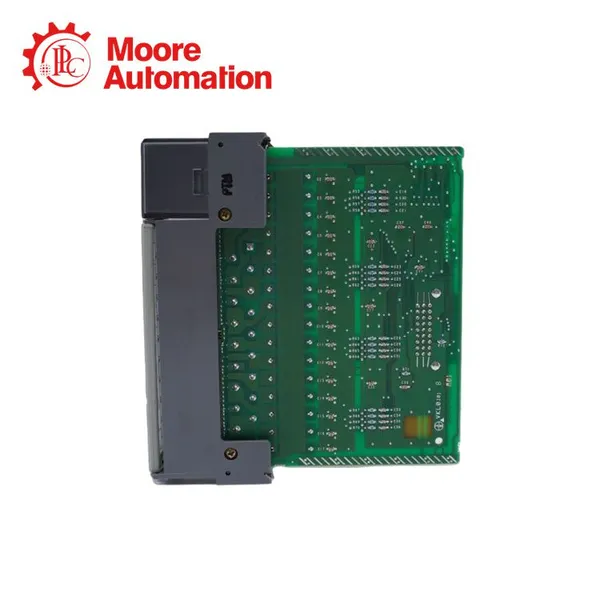

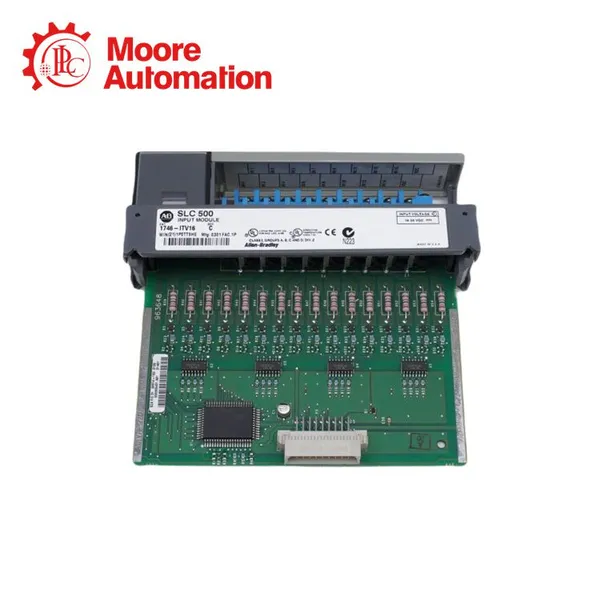

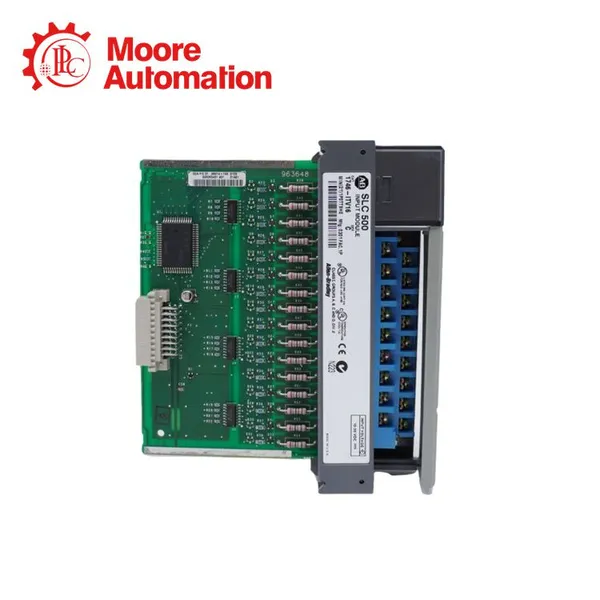

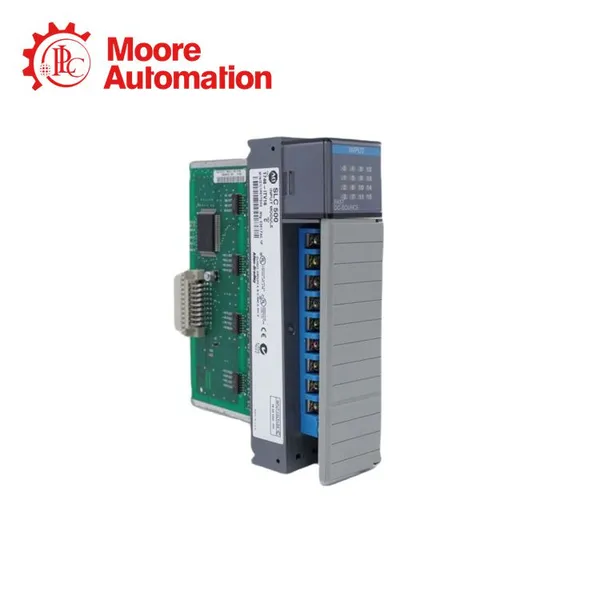

Allen Bradley 1746-ITV16 is a discrete input module purchased for SLC 500. This module has sixteen (16) fast response channels and can accept a nominal input voltage of 24VDC, with a working voltage range of 10-30VDC. It has one (1) set of 16 channels, with a backplane current consumption of 0.085A. Its maximum turn off voltage is 5VDC, and the nominal input current at 24VDC is 8mA. The maximum signal delay for each channel of this module during ON conversion is 0.30 ms, and the minimum signal delay during OFF conversion is 0.50 ms. | |
Contact info |
|
Sales manager: Lucky Email: cn@mooreplc.com mobile/whatsapp: +86 18020716847 wechat: +86 18020716847 Address: No.388 , Hubin south Road ,Siming district , Xiamen , Fujian,China |
Packing and shipping |
|
1. Delivery shall be made within 2-3 working days after payment. 2. Original packaging. 3. We can send it to you via DHL/TNT/UPS/EMS/FedEx. 4. Original and brand new |
FAQ |
|
Q1: Why choose Moore? A1: Moore provides global brand automation spare parts, covering industries such as steel, power, and chemicals to meet a variety of needs. Q2: Can the discontinued old models be found? A2: Yes. We focus on new and old spare parts and can provide hard-to-find discontinued parts. Q3: What are the characteristics of Moore's services? A3: High cost performance, fast delivery, professional technical support to ensure efficient operation of equipment. |
