Center Pivot Irrigation Machine Electricity Center Pivot Translation Sprinkler Irrigation System

FOB Price

US$ 5500 - 7000 / Piece

2 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

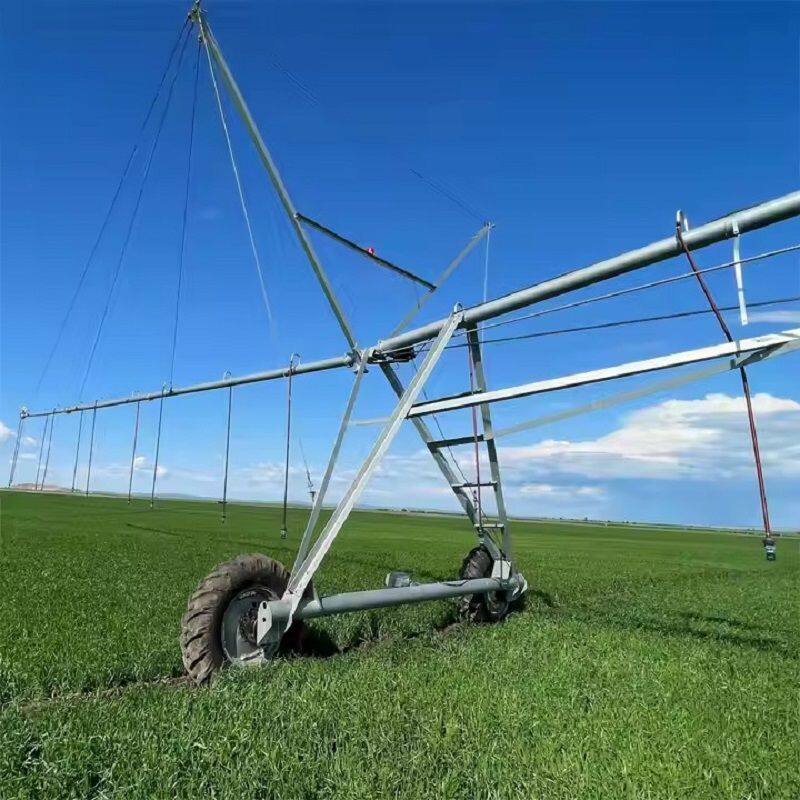

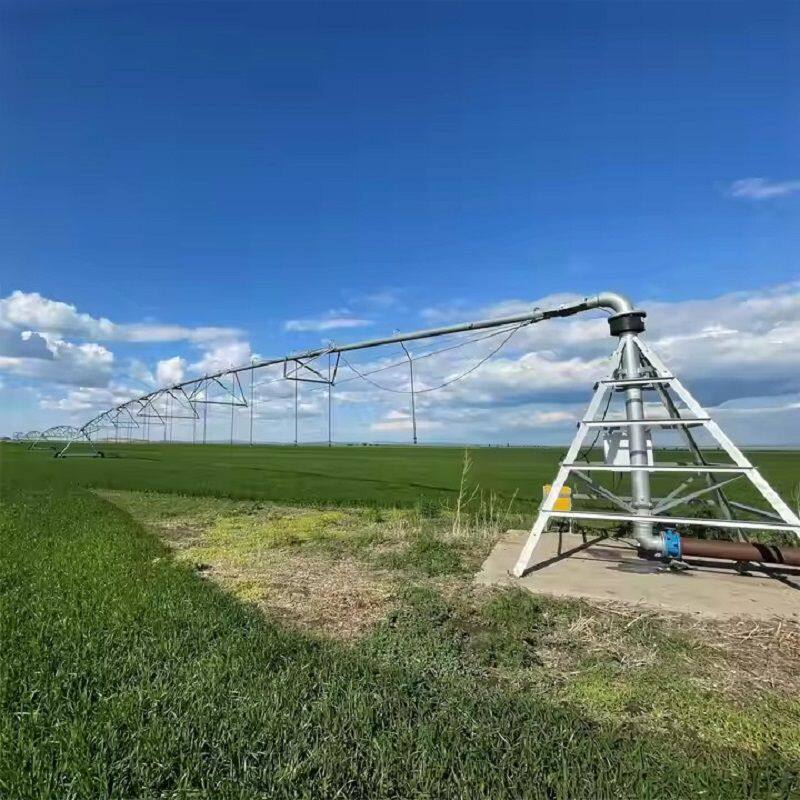

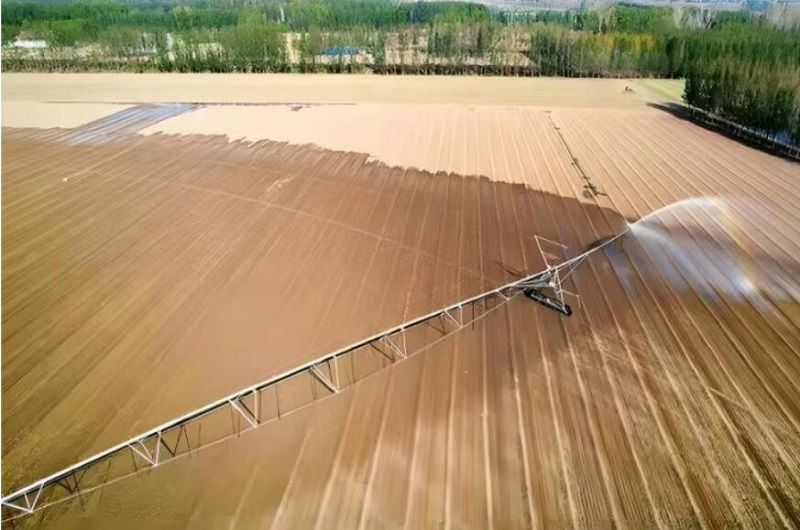

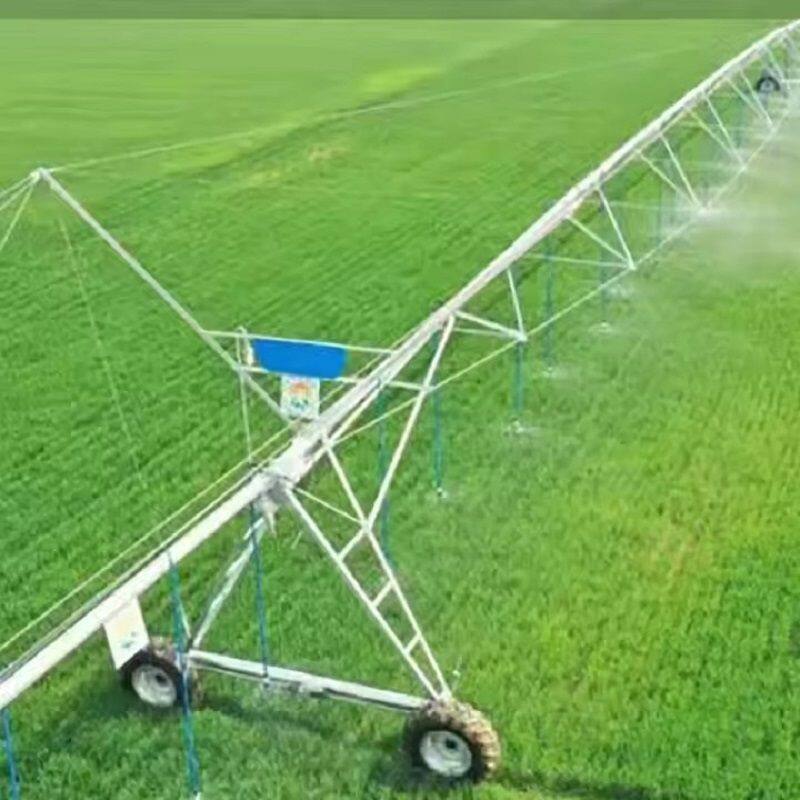

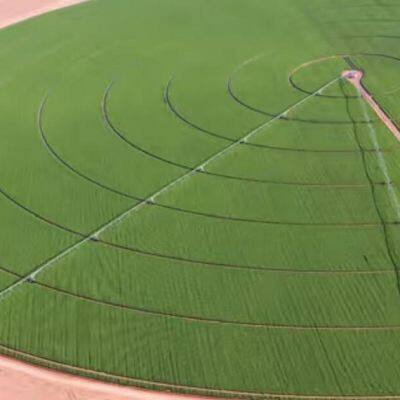

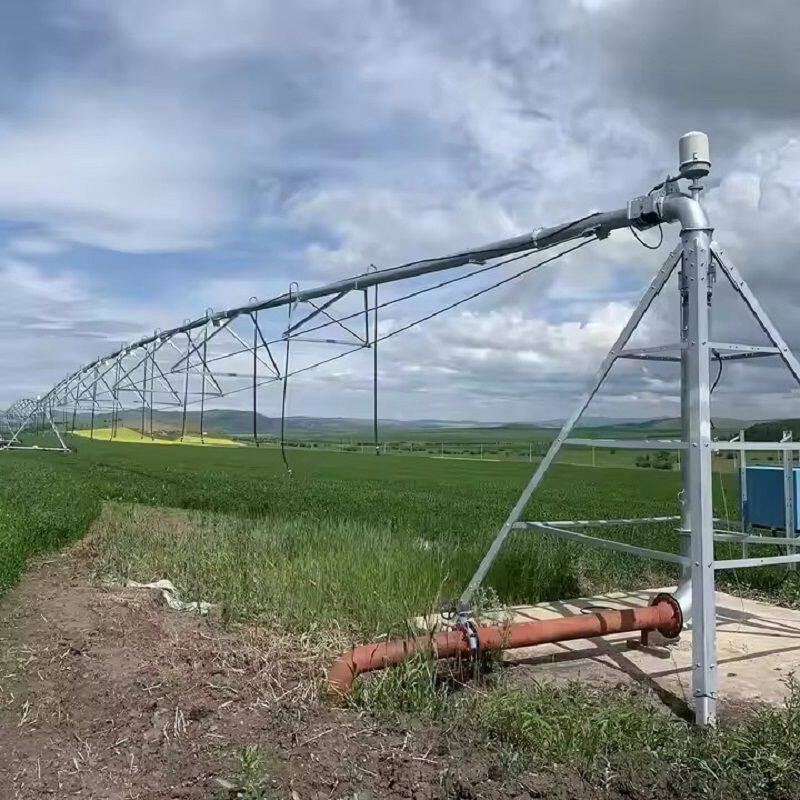

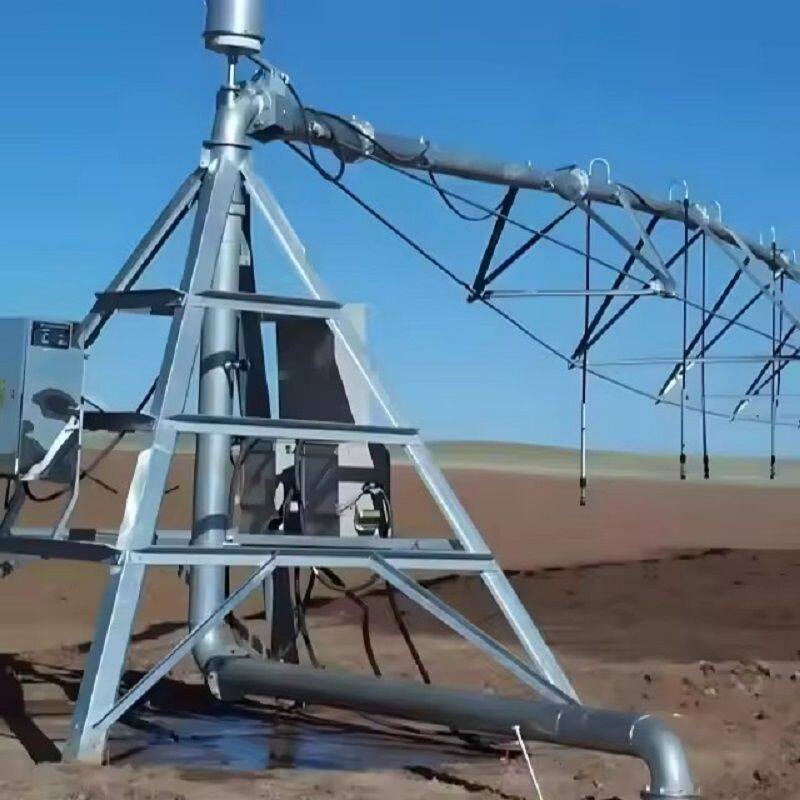

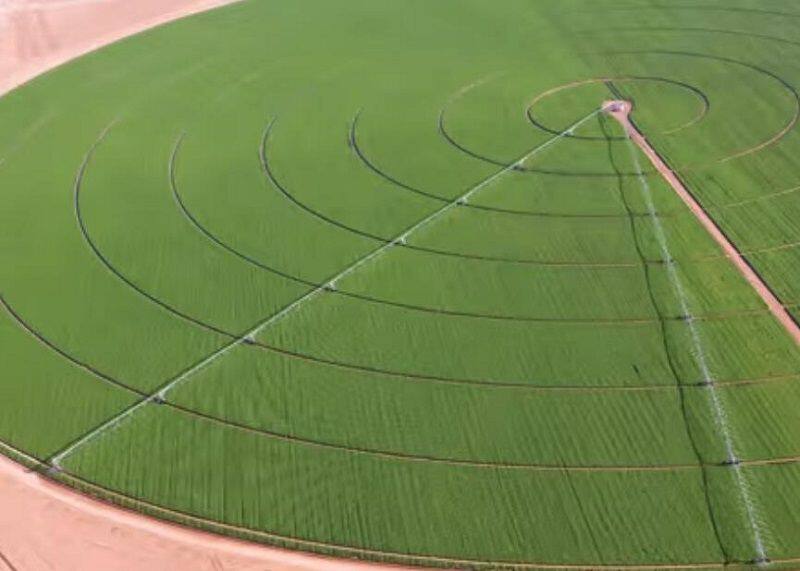

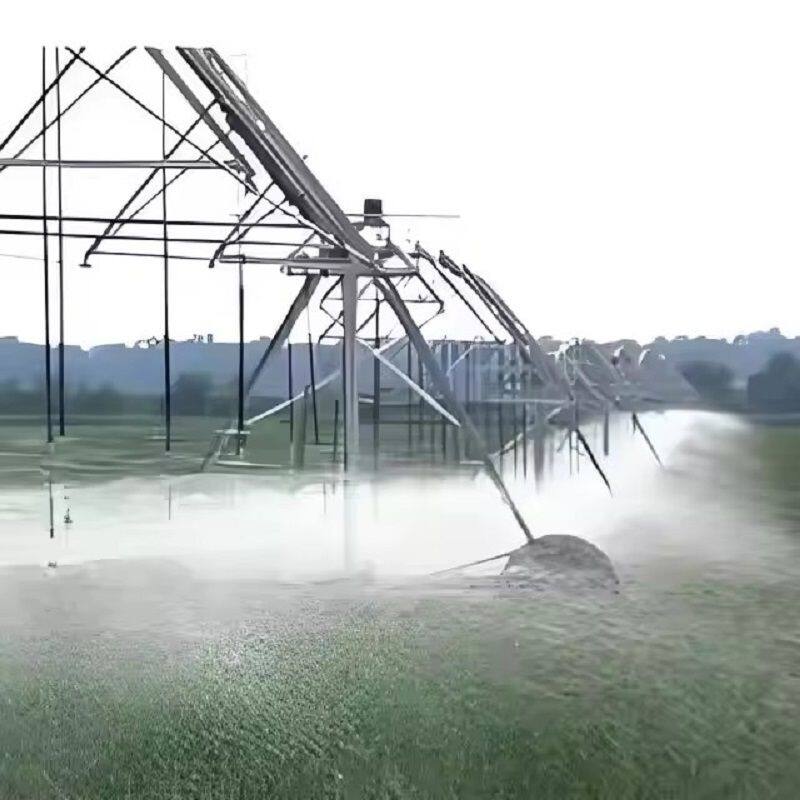

Center Pivot Irrigation Machine Electricity Center Pivot Translation Sprinkler Irrigation System

diameter

16.8cm

Product name

Center Pivot Irrigation System

Application

Medium Land Irrigation System

Style

ZIMMATIC STYLE

usage

Agriculture

Applicable Industries

Manufacturing Plant

Feature

increase irrigation ratio

Warranty of core components

5 years

Condition

New

Main pipe	Dia: 6-5/8" (168mm),Thickness:3.2mm, Length: 6.7m or 13.4m
Span	54.5m, 61.3m, 47.9m
Overhang	Dia: 5-9/16"(141mm) for the first 13.4m, 4" for the last 13.4m; Overhang Length：3.5m,6.7m,10m, 13.4m, 16.8m, 20.1m, 26.8m
Collector ring	Mounted externally around the pivot elbow
Flange thickness	10mm
Angles for to pivot legs	100mm100mm8mm
Angles for tower legs	100mm80mm8mm
Angles for the truss	50mm50mm5mm
Truss rod	Dia: 22mm
Working electricity	460--380V/50--60HZ
Power supply	Public power or the generator set
Electrical cable	Amoured, UV-resistant
Motor	Output: 0.75/0.6HP Volts: 460/380 Herz:60/50 RPM: 43/36,

Gearbox	Ratio: 50:1, from UMC factory in China
Tire	14.9-24 irrigation tire
Sprinkler	I-wob, option: D3000, R3000 etc.
Pressure regulator	15psi
Sprinkler spancing	2.2m or 4.4m
End light	LED
anti-corrosion	Hot-dip galvanization, option: poly lined
Maintenance ladder on the central tower	Available
Emergency protection if one of the carts moves faster than neighbouring ones	Available
Emergency protection in case of electrical fault (short circuit)	Available
Standard control panel functions	Main power switch (Disconnect switch)
