Deepsea Dse335 Mkii Automatic Transfer Switch ATS Controller

Fuzhou Sinostar Power Co.,ltd

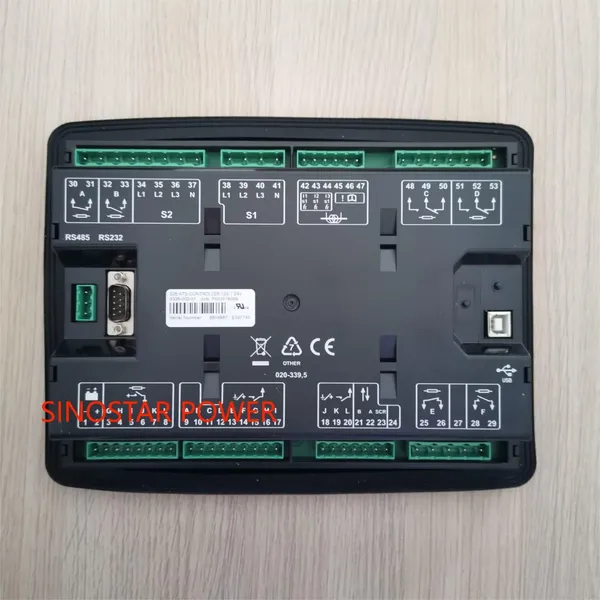

Deepsea Dse335 Mkii Automatic Transfer Switch ATS Controller thumbnail-1
Deepsea Dse335 Mkii Automatic Transfer Switch ATS Controller photo-1
US$ 800 - 1000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DEEPSEA
Place of Origin:
United Kingdom
Model Number:
DSE335 MKII
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DEEPSEA
Place of Origin United Kingdom
Model Number DSE335 MKII

DSE335 MKII Automatic transfer switch controller

The DSE335 MKII is an automatic transfer switch controller designed to monitor the voltage and frequency of incoming AC supplies from two different sources. These are either generator or mains (utility), or a combination of both. The module monitors S1 (source 1) and in the event of a failure issues a start command to S2 (source 2). Various timing sequences are available to prevent nuisance starting on minor supply breaks.
The module is configured using the DSE Configuration Suite PC Software. Selected front panel editing is also available. Configurable inputs and outputs make the DSE335 MKII fully flexible to suit a wide variety of applications.
OVERALL SIZE
240 mm x 181 mm x 42 mm  (9.4" x 7.1" x 1.6")
PANEL CUT-OUT
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8 mm (0.3")

KEY FEATURES
KEY BENEFITS
Configurable Inputs (12)
Provides advanced flexibility.
Configurable volt-free outputs (6)
Provides advanced flexibility.
Configurable DC outputs (6)
Provides advanced flexibility.
Single combined switching schemes
Offers simplified programming & operation.
Enhanced configurable closed transition menu (<100 ms)
Provides enhanced accuracy.
415 V AC S1/S2 sensing for full 600 V
Enables the module to fully support 600 volt systems.
Bi-colour front panel LEDs
Offers advanced status indication.
RS485 communications
Provides secure and simple off site monitoring. All ports are continuously active.
4-line back-lit LCD text display
Presents system information clearly.
Five key menu navigation
Ease of use for the operator.
Front panel editing with PIN protection
Protects operators gaining access to the editing functionality without permission.
Check sync feature.
Ensures the smoothest possible transfer is achieved.
Remote monitoring.
Allows operators to view system status from any location.
Source 1/source 2 control.
Allows flexible control of source inputs.
Manual restore to S1.
Allows flexible control of source inputs.
Supports multiple technologies
Offers added flexibility.
Automatic switch-over between supplies
Ensures there is no break in power when the changeover occurs.
Rotary ATS configuration.
Provides alternator breaker type control.
SPECIFICATION
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.
LEDs and backlight will not be maintained during cranking.
MAXIMUM OPERATING CURRENT
480 mA at 12 V, 360 mA at 24 V

MAXIMUM STANDBY CURRENT
126 mA at 12 V, 96 mA at 24 V
S1
VOLTAGERANGE
15 V to 333 V AC (L-N)
FREQUENCYRANGE
3.5 Hz to 75 Hz
OUTPUTS
OUTPUTS A & E
Normally closed ­­­volt-free output
8 A AC at 250 V AC
OUTPUTS B & F
Normally open volt-free output
8 A AC at 250 V AC
OUTPUT C & D
Changeover volt-free output
8 A AC at 250 V AC
AUXILIARY OUTPUTS G,H,I,J,K & L
2 A DC at supply voltage
­
S2
VOLTAGE RANGE
15 V to 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
