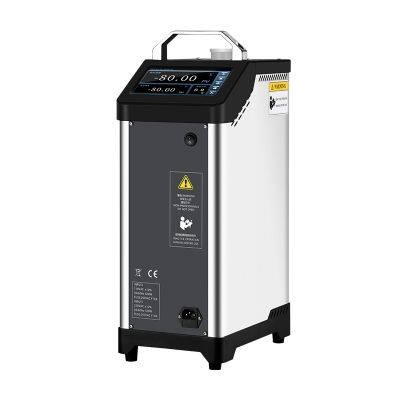

Ultra low dry block temperature calibrator

【 Product Introduction 】

1, ultra-low temperature (-100℃/-80℃/-60℃) temperature range, widely used in astronomical observation, medical and pharmaceutical, aerospace, science and technology research and development and other fields.

2, small size, high precision.

3, man-machine interface, Chinese display, touch operation, beautiful and generous.

4, one key temperature setting, simple operation, automatic adjustment of heating power. Rapid heating, temperature control.

5. It only takes 45 minutes for the room temperature to drop to -100 ° C.

【 Technical index 】

Model number

DY-GTL-D

Temperature range

- 100 ℃ / 80 ℃ to 60 ℃ and 40 ℃

Display resolution

0.1℃/0.01℃ (customizable)

accuracy

Plus or minus 0.5 ℃

Control mode

Touch screen

Check hole depth

145mm

Default display

Chinese display full color LCD ° C or ° F

Soaking block diameter

30mm

Check hole diameter

Standard: 4mm, 6mm, 8mm, 10mm (customizable)

Dimensions (L X W X H)

320mm*195mm*530mm

Rise and fall time

It takes 45 minutes for the room temperature to drop to -100 ° C

weight

15.23 kg

Power source

220V  AC 50HZ  10A

power

800W

Language

The test can be taken anywhere in the world on request

Working condition

15℃—22℃    15%RH--80%RH

Standard accessories

Power cord x 1 manual x 1 certificate x 1
