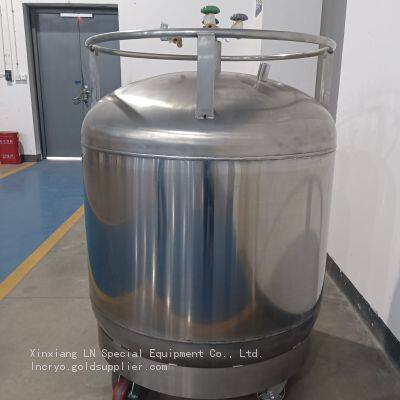

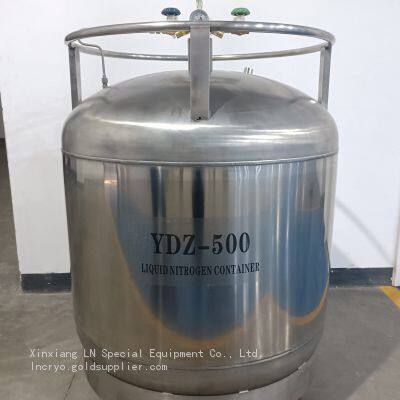

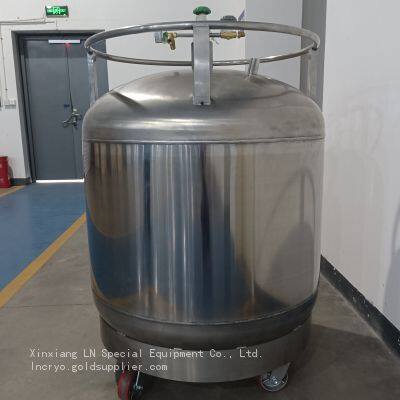

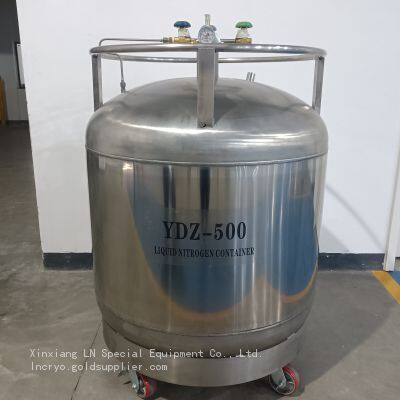

Help CenterSelf Pressurized Liquid Nitrogen Tank YDZ-500 Stainless Steel Tank Automatically Supplies Large Capacity Liquid Nitrogen
Related Products
-
YDZ-300 Stainless Steel Tank Automatic Supply of Liquid Nitrogen Large Capacity Self Pressurized Liquid Nitrogen TankUS$ 2800 - 3000MOQ: 1 Piece -
YDZ-300 Stainless Steel Tank Stable Automatic Supply of Liquid Nitrogen Self Pressurized Liquid Nitrogen TankUS$ 2800 - 3000MOQ: 1 Piece
-
Self Pressurized Liquid Nitrogen Tank Stainless Steel Tank YDZ-100 Stable Automatic Supply of Liquid NitrogenUS$ 1830 - 2000MOQ: 1 Piece
-
Self-Pressurizing Nitrogen Tank for Livestock Safety and StorageUS$ 1350 - 1500MOQ: 1 Piece
-
Ydz100durable Self-Pressurized Nitrogen Tank for Safe Liquid Nitrogen StorageUS$ 1830 - 2000MOQ: 1 Piece
Self-pressurized liquid nitrogen tank is a kind of equipment used for liquid replenishment and turnover transportation of liquid nitrogen, liquid oxygen and liquid argon biological containers. It is made of high-quality stainless steel with a booster system that generates its own pressure for continuous drainage. The self-pressurized liquid nitrogen tank is composed of a control system and a tank body. The control system includes inlet/discharge valve, booster valve, vent valve, double safety valve, liquid level gauge and pressure gauge, etc.

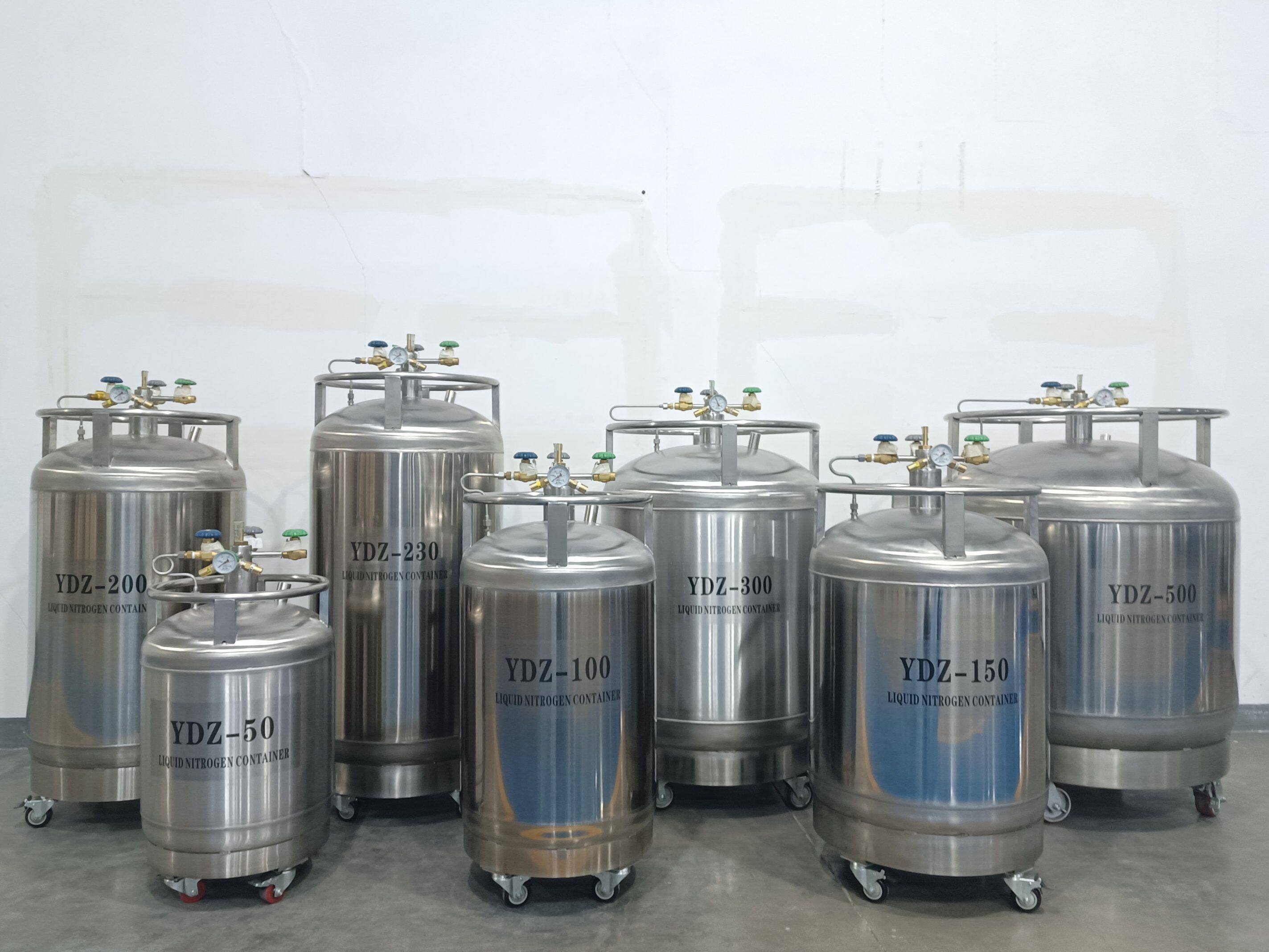

| Model Parameter: | ||||||||||
| Model | Cryostor 5 | Cryostor 15 | Cryostor 30 | Cryostor 50 | Cryostor 100 | Cryostor 150 | Cryostor 200 | Cryostor 240 | Cryostor 300 | Cryostor 500 |
| Cryostor 5A | Cryostor 15A | Cryostor 30A | Cryostor 50A | Cryostor 100A | Cryostor 150A | Cryostor 200A | Cryostor 240A | Cryostor 300A | Cryostor500A | |
| LN2 Capacity (L) | 5 | 15 | 30 | 50 | 100 | 150 | 200 | 240 | 300 | 500 |
| StaticDaily Evaporation (L D) | 0.15 | 0.38 | 0.75 | 1.0 | 1.3 | 2.0 | 2.4 | 2.9 | 3.3 | 5.5 |
| Overall Height (MM) | 510 | 750 | 879 | 991 | 1185 | 1188 | 1265 | 1379 | 1459 | 1576 |
| Outer Diameter (MM) | 329 | 404 | 454 | 506 | 606 | 706 | 758 | 758 | 857 | 1008 |
| Weight Empty (KG) | 15 | 23 | 32 | 54 | 75 | 102 | 130 | 154 | 202 | 255 |
| Standard Working Pressure(Mpa) | 0.05 | |||||||||
| HighestWorking Pressure(Mpa) | 0.09 | |||||||||
| PrimarySafety Valve Opening Pressure (Mpa) | 0.099 | |||||||||
| SecondarySafety Valve Opening Pressure(Mpa) | 0.15 | |||||||||
| Indication Range ofPressure Gauge(Mpa) | 0~0.25 | |||||||||
| *A-typesupply tank is equipped with regulator system and solenoid valve. | ||||||||||
*Revolutionary neck design ensures minimal evaporation loss rate;*Incorporates an impeccable safety structure;*Constructed with premium stainless steel tank;
*Equipped with smooth-gliding casters for effortless mobility;*Features a protective operating ring for enhanced safety;*Optional installation of a liquid level gauge available;
*Option to include a state-of-the-art low temperature regulator for precise control;
*Possibility to add a low temperature solenoid valve for advanced operations;*Option to integrate an automatic rehydration function for convenience;
PRODUCT ADVANTAGES Optional Level Display:
Capable of digital signal remote transmission for seamless monitoring;
Regulator available as an option to ensure stable pressure; Solenoid valve can be added as an optional feature;
Inclusion of an automatic filling system is available as an option.
1. **High quality and craftsmanship**
2. **Product Innovation**
3. **Comprehensive customer service**
Q1:Are you a manufacturer or a trading company?
A1:Manufacturer/factory
A2:You will receive an empty tank, you need to fill it with liquid nitrogen at your local gas station.
A3:Yes, but you have to make sure it's empty.
Q4:Can I use it for any other liquid?
A4:It is not recommended that you do so. Special cryogenic liquids should be stored in their respective storage containers and should not be confused.
Q5:How long can Xinxiang LN Container be refrigerated?
A5:We have good quality. It all depends on which size you buy. If it's bigger, then it will stay longer. But we have higher quality than other usual
Q6:What are your payment terms?
A6:T/T 30% as deposit and 70% before delivery. Before you pay the balance, we will show you photos of the product and packaging.
Q7:What is your delivery time?
A7:Products below 50L are in stock, which usually takes 3-5 days. If the goods are not in stock, it will take 15-20 days, depending on the quantity.
Q8:What is your warranty?
A8:We provide one-year warranty, during which any quality problems that belong to us will be responsible for replacing new products.Please keep video evidence to initiate complaints.
