37T Series Moisture Resistant Thermostat From Therm-O-Disc; 37T01/37T02/37T03/37T21/37T22/37T23

FOB Price

Negotiable / Piece

1000 Pieces(Min. Order)

Port Hong kong
Payment TermsT/T
Delivery Detail60 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Therm-O-Disc	Place of Origin	Mexico
Model Number	37T01/37T02/37T03/37T21/37T22/37T23 T-O-D 37T31, T-O-D 37T32, T-O-D 37T33,T-O-D 37TJ03,T-O-D 37TJ23,T-O-D 37TJ33,TJ03,T-O-D 37TJ23,T-O-D 37TJ33,	Temperature Range	-12℃-149℃
Usage	Household	Theory	Bimetal Thermometer
Accuracy	±3℃

Product Description

The 37T series of 3/4” (19mm) bimetal disc temperature controls from Therm-O-Disc offers

proven reliability in a moisture resistant sealed design. The snap-action of the bimetal disc
provides high-speed contact separation resulting in excellent life cycle characteristics at
electrical loads up to 10 amps at 120VAC and 5 amps at 250VAC. The sealed design provides
moisture resistance for moisture prone environments.

The 37T is the most popular and widely applied temperature control in refrigeration
applications such as defrost termination and ice cube maker control. It is also applied in arange of heat pump and air conditioning applications.

The 37T features include:
• Sealed construction provides moisture resistance for moisture prone environments.
• High-speed contact separation ensures long contact life.
• A wide variety of mounting configurations, lead wires and terminations provide maximum design flexibility.
• All materials have been selected to pass the refrigeration industry’s odor and taste tests.
• Controls are 100% operation checked and dielectric tested.

The 37T is available in two switch actions: Automatic Reset SPST /Automatic Reset SPDT

Mounting Configurations

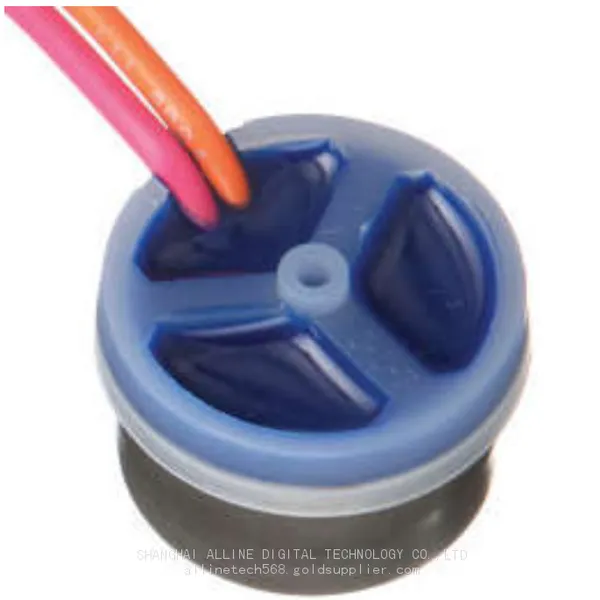

No Mounting Bracket – The 37T may be specified without a mounting bracket. The 37T (see figure 1) is available with a polyethylene cap or a phenolic centerpost which may be used for a customer’s bracket. The phenolic centerpost may be customized to meet unique requirements. mount configurations. Airstream mounting is typically used in applications where the temperature being sensed is contained within an enclosure such as an air duct or heater box.

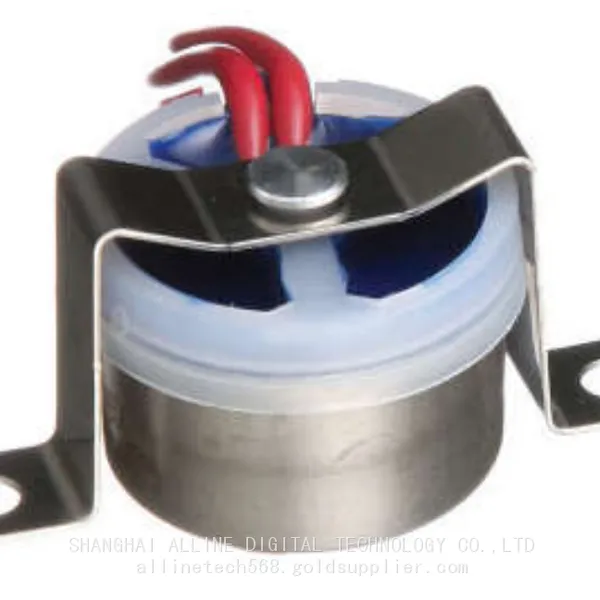

Surface Mounting – The surface mounting configuration (see figure 2) positions the sensing element firmly against the surface to be monitored.

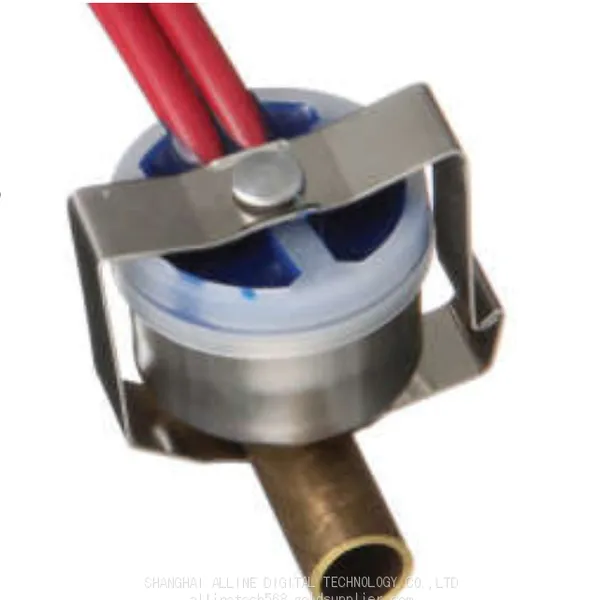

Tube Mounting – Several different tube mountings are available (see figures 4-7). These brackets firmly attach the 37T to tubes ranging from 1/4” (6.4mm) to 7/8” (22.2mm) in diameter. Radius cups provide best thermal response are available in stainless stell, tin plated copper, and Aluminum.

Product Name
T-O-D 37T01 ,T-O-D 37T02 , T-O-D 37T03 , T-O-D 37T21, T-O-D 37T22, T-O-D 37T23, T-O-D 37T31, T-O-D 37T32, T-O-D 37T33,T-O-D 37TJ03,T-O-D 37TJ23,T-O-D 37TJ33, T-O-D 37TA32,T-O-D 37TB01 , T-O-D 37TB02 , T-O-D 37TB03 , T-O-D 37TB21, T-O-D 37TB22, T-O-D 37TB23, T-O-D 37TB31, T-O-D 37TB32, T-O-D 37TB33,T-O-D 37TG01 , T-O-D 37TG02 , T-O-D 37TG03 , T-O-D 37TG21, T-O-D 37TG22, T-O-D 37TG23, T-O-D 37TG31, T-O-D 37TG32, T-O-D 37TG33,T-O-D 37TA01 , T-O-D 37TA02 , T-O-D 37TA03 , T-O-D 37TA21, T-O-D 37TA22, T-O-D 37TA23, T-O-D 37TA31, T-T-O-D 37TA33,T-O-D 37TF01 , T-O-D 37TF02 , T-O-D 37TF21, T-O-D 37TF22 , T-O-D 37TF31 , T-O-D 37TF32,T-O-D 37TE01 , T-O-D 37TE02 , T-O-D 37TE21 , T-O-D 37TE22 , T-O-D 37TE31 , T-O-D 37TE32,T-O-D 37TV01 , T-O-D 37TV02 , T-O-D 37TV03 , T-O-D 37TV21 , T-O-D 37TV22 , T-O-D 37TV23 , T-O-D 37TV31 , T-O-D 37TV32 , T-O-D 37TV33, T-O-D 37TFE01 ,T-O-D 37TFE02 , T-O-D 37TFE21 , T-O-D 37TFE22 , T-O-D 37TFE31 , T-O-D 37TFE32,T-O-D 37TVF01 , T-O-D 37TVF02 , T-O-D 37TVF03 , T-O-D 37TVF21 , T-O-D 37TVF22 , T-O-D 37TVF23 , T-O-D 37TVF31 , T-O-D 37TVF32 , T-O-D 37TVF33,T-O-D 37TVE01 ,T-O-D 37TVE02 , T-O-D 37TVE03 ,T-O-D 37TVE21,T-O-D 37TVE22,T-O-D 37TVE23,T-O-D 37TVE31,T-O-D 37TVE32,T-O-D 37TVE33,T-O-D 37TVG01 , T-O-D 37TVG02 ,T-O-D 37TVG03 , T-O-D 37TVG21 , T-O-D 37TVG22 , T-O-D 37TVG23 , T-O-D 37TVG31 ,T-O-D 37TVG32 , T-O-D 37TVG33,T-O-D 37TVFE01 , T-O-D 37TVFE02 , T-O-D 37TVFE03 , T-O-D 37TVFE21 , T-O-D 37TVFE22 , T-O-D 37TVFE23 , T-O-D 37TVFE31 , T-O-D 37TVFE32 , T-O-D 37TVFE3

Product Name

T-O-D 37T01 ,T-O-D 37T02 , T-O-D 37T03 , T-O-D 37T21, T-O-D 37T22, T-O-D 37T23, T-O-D 37T31, T-O-D 37T32, T-O-D 37T33,T-O-D 37TJ03,T-O-D 37TJ23,T-O-D 37TJ33,
T-O-D 37TA32,T-O-D 37TB01 , T-O-D 37TB02 , T-O-D 37TB03 , T-O-D 37TB21, T-O-D 37TB22, T-O-D 37TB23, T-O-D 37TB31, T-O-D 37TB32, T-O-D 37TB33,T-O-D 37TG01 , T-O-D 37TG02 , T-O-D 37TG03 , T-O-D 37TG21, T-O-D 37TG22, T-O-D 37TG23, T-O-D 37TG31, T-O-D 37TG32, T-O-D 37TG33,T-O-D 37TA01 , T-O-D 37TA02 , T-O-D 37TA03 , T-O-D 37TA21, T-O-D 37TA22, T-O-D 37TA23, T-O-D 37TA31, T-T-O-D 37TA33,T-O-D 37TF01 , T-O-D 37TF02 , T-O-D 37TF21, T-O-D 37TF22 , T-O-D 37TF31 , T-O-D 37TF32,T-O-D 37TE01 , T-O-D 37TE02 , T-O-D 37TE21 , T-O-D 37TE22 , T-O-D 37TE31 , T-O-D 37TE32,T-O-D 37TV01 , T-O-D 37TV02 , T-O-D 37TV03 , T-O-D 37TV21 , T-O-D 37TV22 , T-O-D 37TV23 , T-O-D 37TV31 , T-O-D 37TV32 , T-O-D 37TV33, T-O-D 37TFE01 ,T-O-D 37TFE02 , T-O-D 37TFE21 , T-O-D 37TFE22 , T-O-D 37TFE31 , T-O-D 37TFE32,T-O-D 37TVF01 , T-O-D 37TVF02 , T-O-D 37TVF03 , T-O-D 37TVF21 , T-O-D 37TVF22 , T-O-D 37TVF23 , T-O-D 37TVF31 , T-O-D 37TVF32 , T-O-D 37TVF33,T-O-D 37TVE01 ,T-O-D 37TVE02 , T-O-D 37TVE03 ,T-O-D 37TVE21,T-O-D 37TVE22,T-O-D 37TVE23,T-O-D 37TVE31,T-O-D 37TVE32,T-O-D 37TVE33,T-O-D 37TVG01 , T-O-D 37TVG02 ,T-O-D 37TVG03 , T-O-D 37TVG21 , T-O-D 37TVG22 , T-O-D 37TVG23 , T-O-D 37TVG31 ,T-O-D 37TVG32 , T-O-D 37TVG33,T-O-D 37TVFE01 , T-O-D 37TVFE02 , T-O-D 37TVFE03 , T-O-D 37TVFE21 , T-O-D 37TVFE22 , T-O-D 37TVFE23 , T-O-D 37TVFE31 , T-O-D 37TVFE32 , T-O-D 37TVFE3

General Electric Rating
