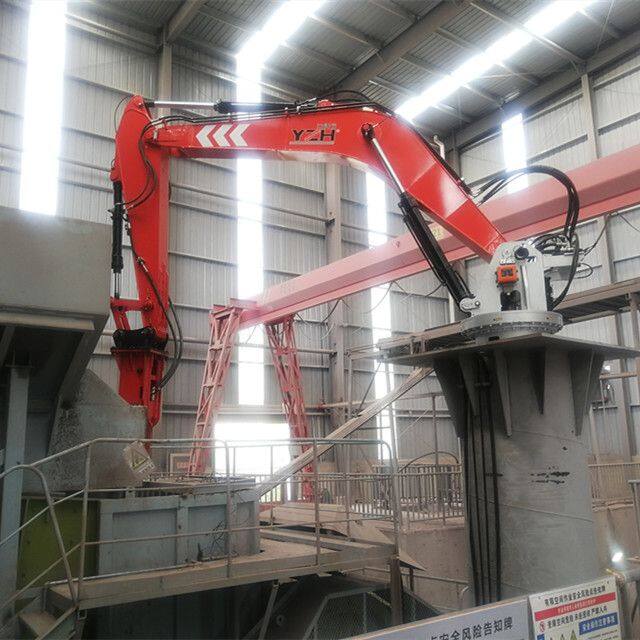

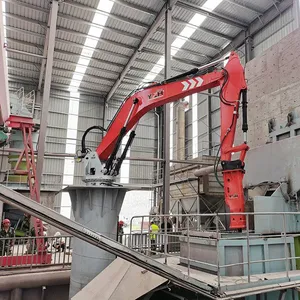

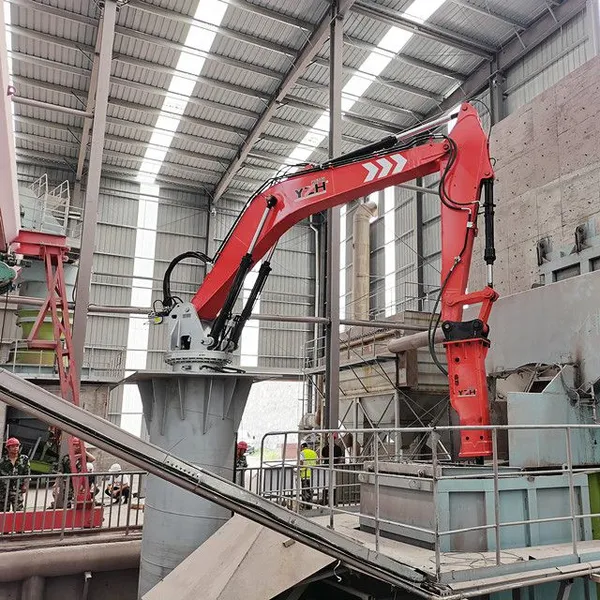

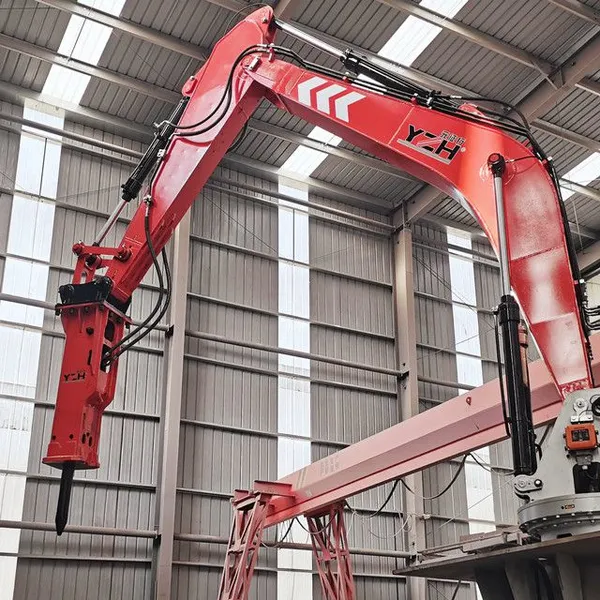

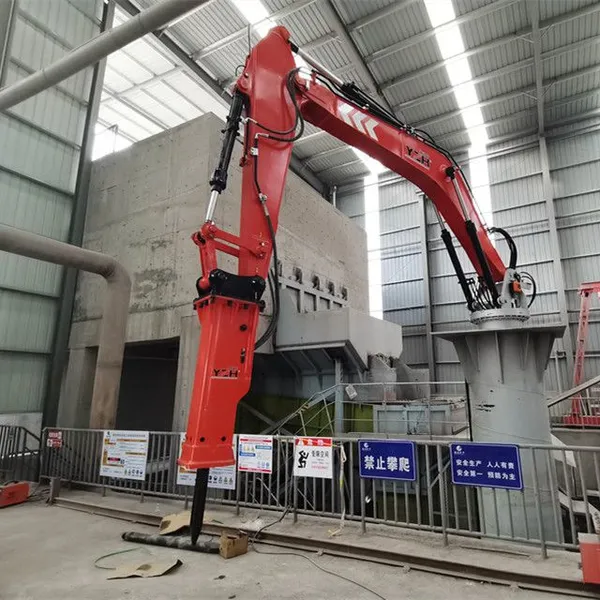

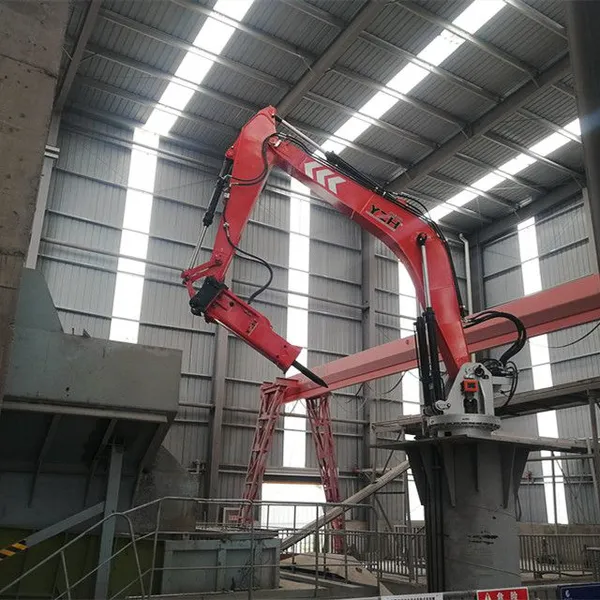

China Factory YZH Rockbreaker boom System
The main components and functions of Rockbreaker boom System are:
The Rockbreaker boom System consists of a hydraulic station, a slewing support system, a boom operation system, a control system, and an electrical control cabinet. The execution components can be equipped with attachments such as hydraulic hammers, hydraulic lotus claws, hydraulic shears, clamps, etc. Realize multiple functions such as crushing, pinching, shoveling, grabbing, digging, hooking, picking, and scraping. This product has high crushing capacity, smooth operation, low noise, reliable performance, easy operation, and can effectively reduce the labor intensity of workers, improve the on-site working environment, and enhance work efficiency. Years of experience have shown us that accurate understanding of user needs, good partnership relationships, and high-quality equipment combination can bring better results. Based on the various conditions and requirements of the mine, the Rockbreaker System selected by our company fully meets the usage requirements of most mines. The cab is fully sealed with air conditioning, creating a better working environment for workers!
Main parameter:
| Model No. | WHC1030 | |
| Boom weight(without hammer) | KG | 8715 |
| Max.Horizontal Working radius | MM | 12606 |
| Max.vertical working radius | MM | 10256 |
| Min.vertical working radius | MM | 2898 |
| Max.Height | MM | 7200 |
Purchase Notice:
Warranty period: 1 year
After sales service: During the warranty period, if there are quality issues, we will be available on call
Transportation methods: Various transportation methods are accepted
Packaging method: Suitable for various types of transportation
