1kw 1.2kw Handled Fiber Laser Welding Machine With Details for Stainless Steel Aluminum Mold

Product Introduction

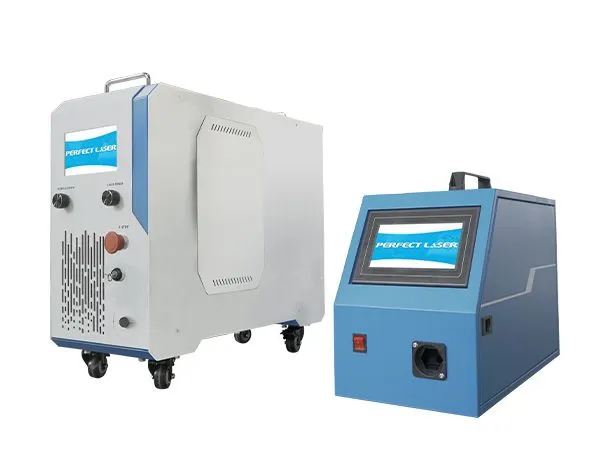

The small portable handheld laser welder conducts 360 ° all-round welding on metal work-pieces through fiber optic transmission, with uniform and beautiful welds and exceptionally firm welding.

It has  a small volume, occupies a small area, is easy to move, operates  conveniently and saves labor costs, and can also be operated by  inexperienced workers. Adopting air-cooled heat dissipation, it has good  heat dissipation performance and can achieve long-term stable operation  and welding.

The air-cooled handheld handheld laser welder  adopts a four in one control system, which allows for flexible  switching of welding, cleaning, welding seam cleaning, and cutting.  Multiple safety alarms are set, and the operation is simple and  flexible, fully meeting the needs of different customers with different  usage requirements.

Product Features

1.The handheld laser welder has professional  laser welding system, with comfortable graphics, simple and clear  operation, integrating welding, cleaning, welding seam cleaning, and  cutting functions into one;

2.  Flexible and portable, weighing only 45 kilograms. Mobile operation,  electric vehicles can be used. The armored cable of the welding gun can  be dragged, making the movement operation more convenient;

3. The handheld laser welder adopts  intelligent touch screen and intelligent operating system, it only  requires half an hour of training to master welding operations;

4.  The weight of the welding gun is 0.7kg, and the maximum welding  thickness is 3mm. Lightweight and portable, single person controllable,  truly achieving one person portable handheld laser welding machine;

5.The handheld laser welder is  suitable for metal welding of 0.5mm-3mm,such as overlap welding, spot  welding, external corner welding, internal corner welding, suitable for  various welding processes;

6.  Equipped with a wire feeder, welding wires can be selected according to  the size of the weld seam. The weld seam is beautiful and the welding  speed is fast.

Application

1.Application materials

The handheld laser welding machine is widely used Stainless steel, die steel, carbon steel, nickel, zinc, aluminum, etc

2. Application industries

The handheld laser welding machine can be used in automotive, electronics, steel, aerospace, shipbuilding and other industries

Technical Data
