Home > Instruments & Meters > Weighing & Measuring Apparatus > Measuring Device > Rail Profile Measuring Instrument for Track Maintenance
US$ 18000 - 20000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
linkage
Place of Origin:
China
Model Number:
GJC-JJG0
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen, Qingdao, Guangzhou
Delivery Detail:
7 days
Related Products
-
Rail Track Gauge Railway Measuring Tools for Track MaintenanceUS$ 6000 - 6100MOQ: 1 Piece -
Railway Track Level Gauge for Switch and Crossing MeasuringUS$ 1000 - 1050MOQ: 1 Piece
-
Railway Rolling Digital Track Gauge Rail Ruler Measuring ToolsUS$ 6000 - 6100MOQ: 1 Piece
-
Analogue Track Gauge for Track Level and Gauge MeasurementUS$ 160 - 200MOQ: 1 Piece
-
Analogue Track Gauge for Track Level and Gauge MeasurementUS$ 160 - 200MOQ: 1 Piece
Brand Name
linkage
Place of Origin
China
Model Number
GJC-JJG0
Product Description

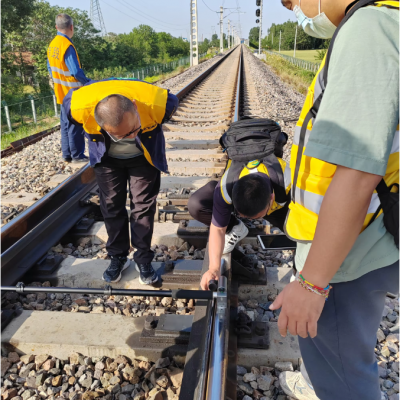

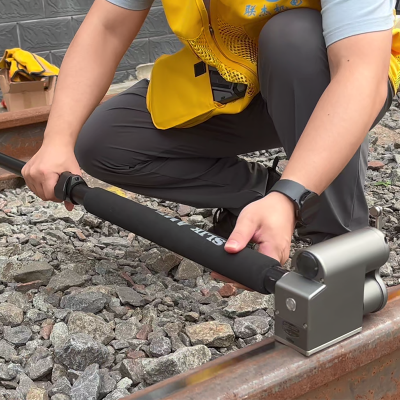

It is a high precision, lightweight and portable tool for performing fast and reliable cross-sectional rail profile measurements to monitor and analyze the wear of rails. It is available for all type of rails, including grooved rails. Magnetically attached to the top of the railhead, the rail profile is measured in one single measurement in less than 5 seconds.
Each one is delivered with the innovative and user-friendly software package. It includes the app for Android for easy data collection in the field and the vast software package for basic and advanced data studies and analysis. It can suit any user’s needs for easy building of measurement schemes, batch processing, references, creating templates and macros, live alarms, trend analysis, wear, grinding, evaluation, equivalent conicity and much more.
Packaging and delivery
Vertical, horizontal and angled wear are displayed instantly after each measurement in real time view. Numerous additional calculations and alignments are included in the powerful Envision software for basic to advanced data handling, analyzing and reporting.
Place of Origin
China
Purpose
for replace/repair
Condition
New
Dimensions (L x W x H) (mm)
135mmx45mmx100mm
Product name
Rail Profile Measurement System
FUNCTION
rail section profile
horizontal resolution
500-800points/section
accuracy
±10μm
repeatability
rms<5μm
acquisition points
>10000points/rail head
measuring speed
<5s
srocessing speed
<2s
file size
10-30kb/profile
net weight
1.15KG
Selling Units:
Single item
Single package size:
45.5X35X18.5 cm
Single gross weight:
5.540 kg
