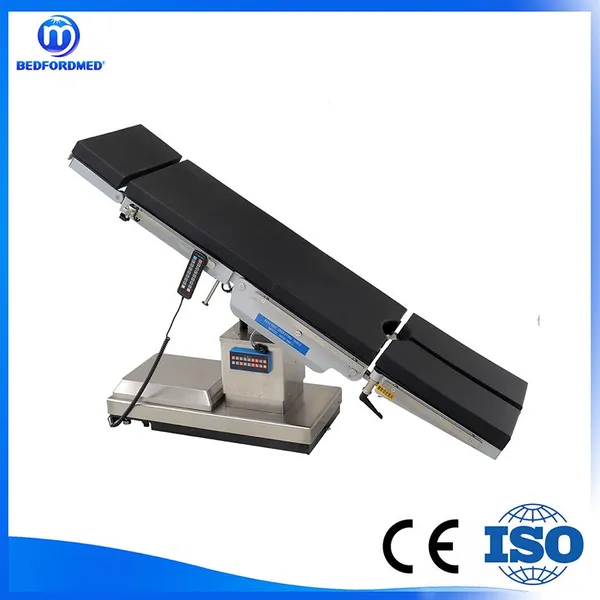

Hospital X-ray&C-Arm Examination Table Electric Hydraulic Operating Table Ecoh003-C
This Electric Hydraulic OperatingTable ECOH003 is developed independently by our company wity innovativ and advanced technologies.
The table is a compehesive one with high-quality and multi-purposes,which takes the leading position in the domestic market.
The table can be used in almost all kinds of operations by means of speical design. The bedtop can be moved vertically and rotated horizontally.
The tableboard is made from high-intensity synthesis panel. X-Ray transmissive, easy adjustment and easy use of C-arm make the table can be more capable for any operation.
The operating table is controlled by Control Circuit, which is easy operation, low noise,reliable performance. 2000L operating table has almost the same functions with 99C, except that ECOH004 can't be moved in vertical direction.
Main Usage & Structure
Main Usage: Electric operation table can be operated for clinical use.
Structure :Operating table consists of two parts: mechanical and electro-hydraulic control system.
Depending on manual operation, the product can meet the requirement of posture in clinical operation.
Specifications:
Dimension of table top:
Overall Length...............................2050mm
Width..............................................500mm
Dimension of section:
Head Section.................................250×500mm
Back Section.....................................465×500mm
Waist Section....................................75×500mm
Seat section......................................550×500mm
Leg Section...................................600×240mm
Table top of from floor
Min Height.........................................600mm
Max Height....................................950mm
Adujst................................................350mm
Range of movements:

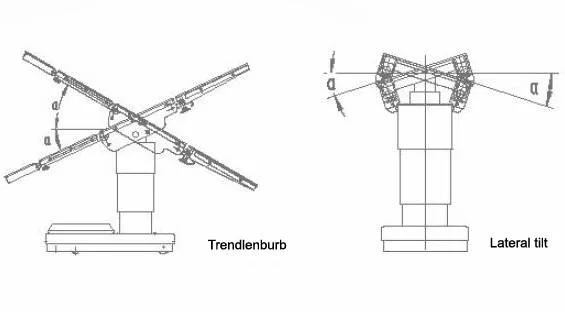

Reversed Trendelenburg.................................≥20°
Trendelenburg...................................................≥15°
Lateral Til................................................................≥15°
Backward and Forward Movements................≥350mm
Adjustment of sections:

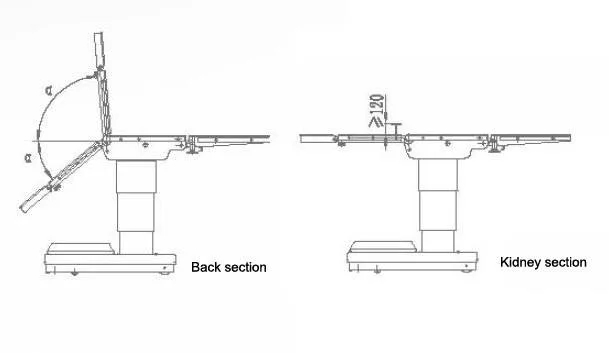

Head Section Raised from the horizontal........≥45°
Head Section lowered from the horizonta.........≥90°
Back Section Raised from the horizontal..........≥75°
Back Section Raised from the horizontal..........≥30°
Leg Section Lowered from the horizontal.........≥90°
Leg section opened..........................................≥90°
Back rise(When optional)....................................≥80mm
Horizonal ratation of tabletop............................0~180°
Lifting speed....................................................4~16mm/s
safe working load...............................................250kg
Device safety sortI B
Ingress Protection:IPX4
Power:(AC)220V,50Hz
Battery capacity is 14 AH Battery capacity ≥ 2.4AH
Structure:
1 The Electric operating table uses electro-hydraulic systems to control all the movements: height adjustment, trendelenburg and reversed trendelenburg, lateral tilt, back movements, forward and backward movement and brake. Head section, leg section and vertical rotation of tabletop are operated by manual operation.
2 The table comprises of five sections: head section, back section, Waist Section(When optional), sitting section and leg section. The forward and backward movement and 180 °rotation of tabletop can make C-arm perspective quick and easy.
3 Emergency power supply is Optional. Emergency power supply is made of lead-acid batteries, which can be automatically charged. Emergency power supply can start to work automatically when the power is off
| Numberal order | Name of accessories | Number | |
| 1 | Head section | 1 | |
| 2 | Anaesthetic Screen | 1 | |
| 3 | Body support | Large 1.smart 1 | |
| 4 | Shoulder support | 2 | |
| 5 | Arm rest | 2 | |
| 6 | Knee crutch | 2 | |
| 7 | Cushion | 1 | |
| 8 | Body Restraint Strap | 1 | Optional |
| 9 | foot plate | 2 | Optional |
