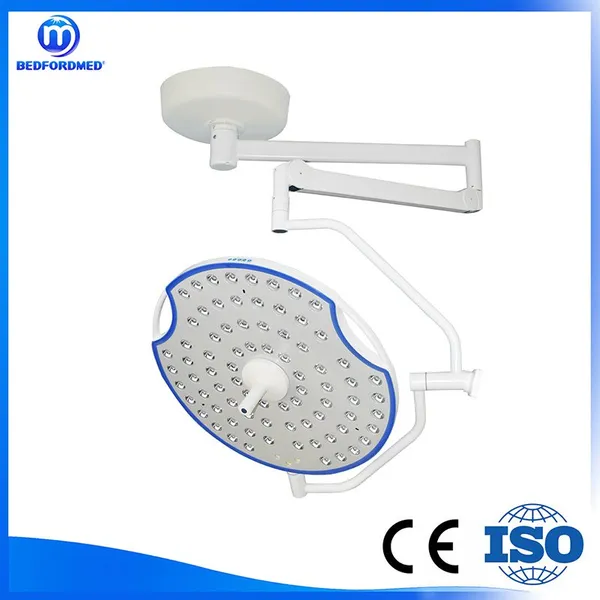

Help CenterV Series LED Operating Light Surgical Lamp 700
Related Products
-
V 500 Operating Single Ceiling Hospital Led Surgical LightNegotiableMOQ: 1 Piece -
V 500 Medical Shadowless Operating Ceiling Hospital Led Surgical LightNegotiableMOQ: 1 Piece
-
V 500 Medical Shadowless Operating Lamp Ceiling Surgical LightNegotiableMOQ: 1 Piece
-
V Series LED Shadowless Operating Lamp 700 Mobile Surgical LightNegotiableMOQ: 1 Piece
-
V Series LED Shadowless Operating Lamp 700 Mobile With BatteryNegotiableMOQ: 1 Piece
Main Functions of New V Series LED Operating Light:
1.Totally enclosed aerodynamic streamline design:
The lamp dome adopts a once formed fully enclosed streamline design, without exposed screws, without spraying and painting, and is ultra-thin (the lamp cap is only 52 mm thick). The surface of the fully enclosed dome is waterproof, dust-proof, and free of dead corners hidden by bacteria.
2.Special new type of high-temperature resistant material:
The entire shell of operating light is lightweight and beautiful, resistant to ultra-high temperatures, and the test results show no deformation or discoloration within 400 degrees Celsius. Simultaneously possessing the high strength, toughness, thermal conductivity, and flame retardancy of metal materials.
3.Ergonomic design:
Adopting a concave double handle around the lamp panel and a detachable disinfection handle below the lamp panel.
At the same time, a simple operation button (dual control system) is designed at the edge of the lamp panel. The entire lamp head has no edges and all adopt a streamlined and smooth edge design, which is more in line with ergonomics.
Parameters of New V Series LED Operating Light:
| Model | V LED500 | VLED 700 |
| Diameter of Light dome (mm) | 500 | 700 |
| LED bulbs(pcs) | 42 | 78 |
|
Luminance(Lux) |
10000-150000 | 15000-160000 |
|
Option: Adjustable Max. Light Intensity: V LED 700 can reach to 200,000Lux; V LED 500 can reach to 180,000Lux | ||
| Focusable light-field size(mm) | 120-250 | 120-250 |
| Color Temp. | 4000-5500K | 4000-5500K |
| Illumination Depth(cm) | ≥700mm | ≥700mm |
| Red Color Index(R9) | 95 | 95 |
|
Dimming Range
|
8-100% 11 STEPS | |
| Endoscopy Model | yes | |
| Votage / Frequency | AC 110~220V 50/60Hz | |
| Head Power(W) | 50 | 80 |
| LED bulbs Service Life Hours | ＞50000hours | |
| Installation height(Ceiling Type)(mm) | 2800-3200mm | |
