Overhead Line Equipment Bird-proof Spikes And Bird-repellent Glue

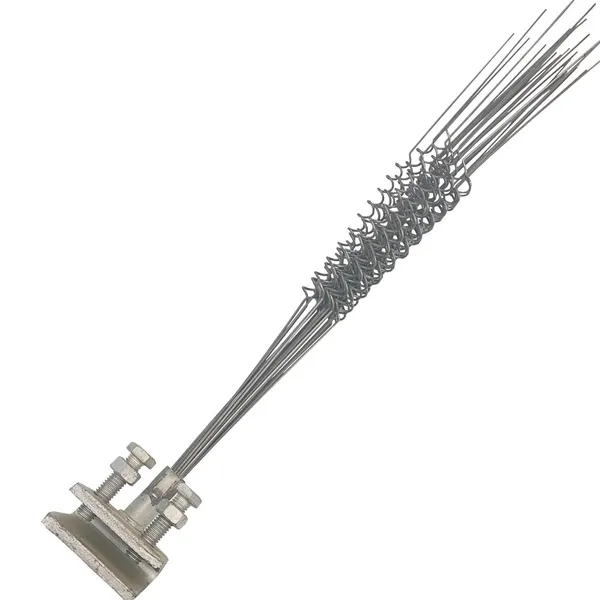

Anti bird stinger is a product developed for preventing bird damage and nesting in power transmission towers. It is installed at the upper position of the cross arm of the tower of the transmission and transformation line equipment, composed of 24 steel wires, presenting a scattered shape, effectively preventing birds from fighting, staying, and nesting directly above the wire porcelain string, ensuring the smoothness of the line, reducing the occurrence of power outages, and achieving significant bird repellent and anti bird damage effects, without harming the survival of birds, achieving the principle of harmonious coexistence between humans and birds.

1. The cross arm area at the top of the tower, with the insulator string as the base point and an angle of 30-45 ° on both sides, is the key point for bird prevention.

2. Bird spines should be kept at a certain density to completely block birds outside the protective zone.

3. Mainly used in the prevention of national bird flash over on 110 kV to 500 kV transmission lines.

1. The structure is simple, easy to use, and the poles and towers can be applied.

2. The surface of the steel wire is treated with anti-corrosion, with a service life of more than 20 years.

3. Durable and reliable, without causing metal fatigue and damage.

4. The straight wire bird repellent thorns are arranged radially and fixed and welded to the installation base.

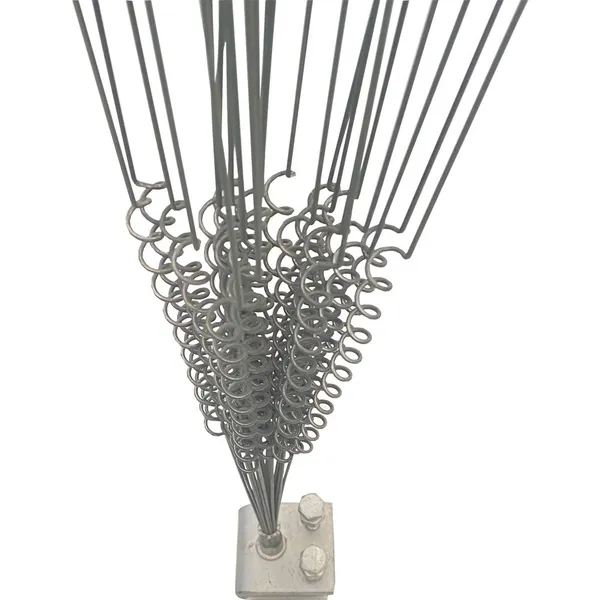

5. The coil spring type is arranged in a way that can tremble in the wind, better preventing bird habitation.
