Heavy-duty Vehicle Baler PLC Control
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT
Delivery Detail:
15 days
Related Products
-
Environmentally-friendly Automobile Baler Digital ControlNegotiableMOQ: 1 Set -
Auto Vehicle Baler Award-WinningNegotiableMOQ: 1 Set
-
Remote-controlled Baler Logger AI-PoweredNegotiableMOQ: 1 Set
-
Recyclable Baler Logger Award-WinningNegotiableMOQ: 1 Set
-
Energy-saving Car Logger Eco-FriendlyNegotiableMOQ: 1 Set
Place of Origin
China
After-sales Service Provided
Engineers available to service machinery overseas
|

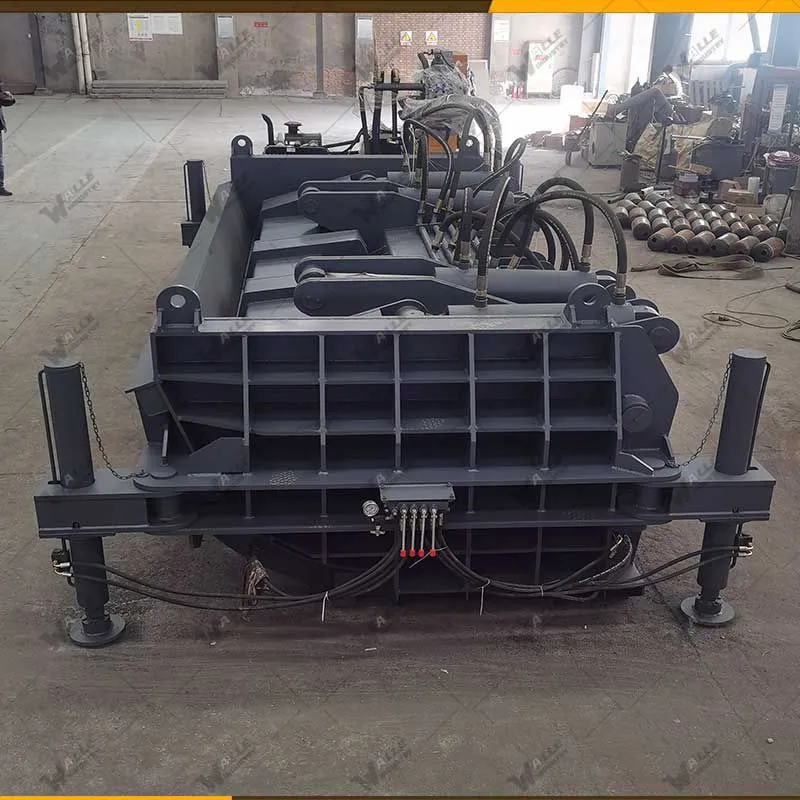

Mainstructure
① body
Themachine body is composed of left and right side frames, front frames,underframes, rear frames, door covers, main pressure heads, side pressureheads, oil cylinder supports and beams. Guard plates are installed in thecompression chamber to facilitate repair and replacement after wear.
② Door cover cylinder
The doorcover cylinder is a double acting single piston rod cylinder, which is hingedon the beam support frame with two shafts. The piston rod and the door coverare hinged with a pin shaft to drive the door cover to rotate at 90 º to lockor loosen the door cover.
③ Main thrust cylinder
Themain push cylinder is a double acting single piston rod oil cylinder, which isinstalled at the lower part of the cross beam and connected to the rear frameof the machine body with a pin shaft. The piston rod is connected with the mainpressure head with a pin shaft to push the main pressure head back and forth.It is used for secondary compression to preliminarily form the materials in thecompression chamber.
④ Side pressure cylinder
The side cylinder isa double acting single piston rod oil cylinder, which is connected to the sidecylinder support with a flange, and the piston rod is connected with the sidepressure head with a pin shaft to push the side pressure head to move back andforth left and right for ultimate compression, so that the materialspreliminarily formed in the compression chamber finally form a package.
|
Q：What is the delivery period for the baler?
A：WLB-5000 using cartridge valves, valve control mode 3 + 2, due to this set of customized valves production cycle is long, the general cycle time is 45 days
