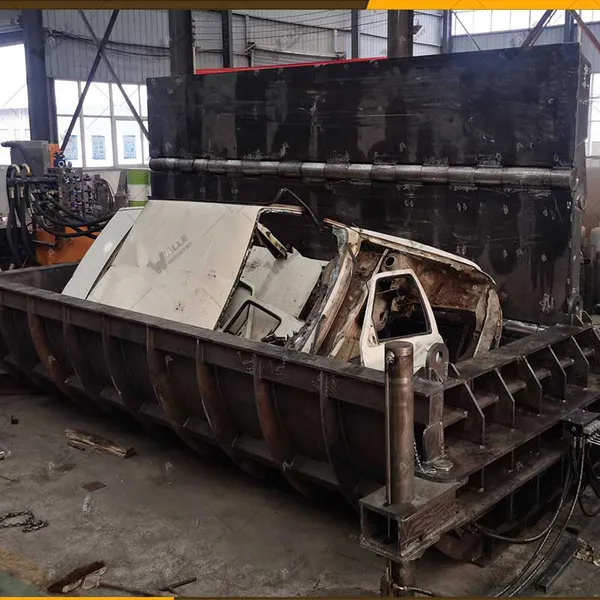

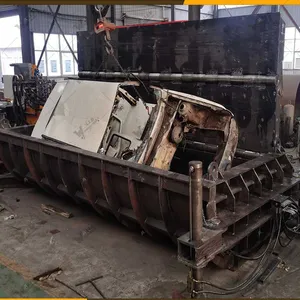

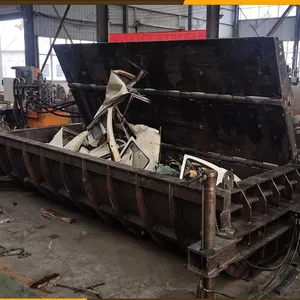

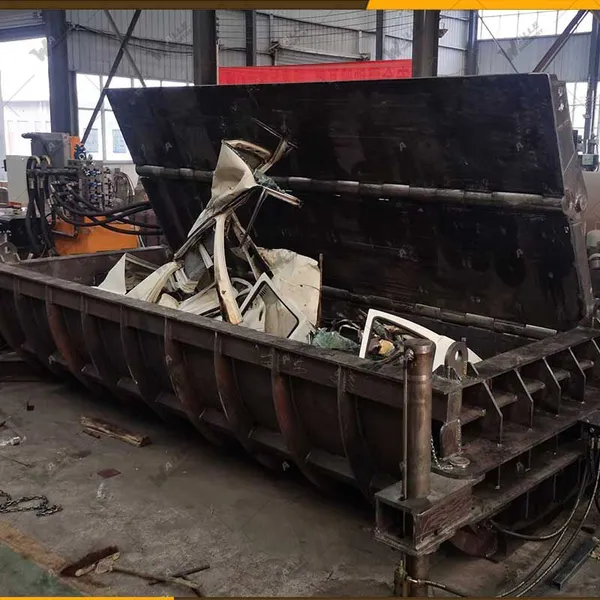

Heavy-duty Auto Baler Eco-Friendly
US$ 35800 - 56200
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Walle industry
Place of Origin:
China
Certification:
CE IOS9001
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port,China
Delivery Detail:
15 days
Related Products
-
Thin Metal Vehicle Baler Digital ControlUS$ 35800 - 98500MOQ: 1 Set -
Customizable Auto Baler PLC ControlUS$ 35800 - 98000MOQ: 1 Set
-
Powerful Auto Baler PLC ControlUS$ 5500 - 50000MOQ: 1 Set
-
Portable Baler Logger Portable TypeUS$ 8500 - 45000MOQ: 1 Set
-
Scrap Titanium Metal Chip Fines Recycling Press Hydraulic Vertical Briquetting Block Making MachineUS$ 18600MOQ: 1 Set
Brand Name
Walle industry
Place of Origin
China
Certification
CE IOS9001
After-sales Service Provided
Engineers available to service machinery overseas
Voltage
380 or customized
Power
Motor
Condition
New
Mainstructure
① body
Themachine body is composed of left and right side frames, front frames,underframes, rear frames, door covers, main pressure heads, side pressureheads, oil cylinder supports and beams. Guard plates are installed in thecompression chamber to facilitate repair and replacement after wear.
② Door cover cylinder
The doorcover cylinder is a double acting single piston rod cylinder, which is hingedon the beam support frame with two shafts. The piston rod and the door coverare hinged with a pin shaft to drive the door cover to rotate at 90 º to lockor loosen the door cover.
③ Main thrust cylinder
Themain push cylinder is a double acting single piston rod oil cylinder, which isinstalled at the lower part of the cross beam and connected to the rear frameof the machine body with a pin shaft. The piston rod is connected with the mainpressure head with a pin shaft to push the main pressure head back and forth.It is used for secondary compression to preliminarily form the materials in thecompression chamber.
④ Side pressure cylinder
The side cylinder isa double acting single piston rod oil cylinder, which is connected to the sidecylinder support with a flange, and the piston rod is connected with the sidepressure head with a pin shaft to push the side pressure head to move back andforth left and right for ultimate compression, so that the materialspreliminarily formed in the compression chamber finally form a package.
Q：Can I order a customized grappling hook?
A：Yes, not only that, you can also whether to delete it or not .
| Item | Parameter | Note | ||||||
| 1 | Main | Model | YG320/220-4000 | 1/320T | ||||
| Cylinder | Nominal thrust | 1826KN | Trip | 4000MM | ||||
| 2 | Level① | Model | YG200/140-600 | 2/200T | ||||
| Pressing material | ||||||||
| Cylinder | Nominal thrust | 785KN*3 | Trip | 600MM | ||||
| 3 | Level② | Model | YG200/140-600 | 2/200T | ||||
| Pressing material | ||||||||
| Cylinder | Nominal thrust | 785KN*3 | Trip | 514MM | ||||
| 4 | Box size (L*W*H)（MM） | 5000*2000*1500 | ||||||
| 5 | Bale size（L*W*H）（MM） | (~600)*1000*1000 | ||||||
| 6 | Working pressure（Mpa） | 21.5 Mpa | ||||||

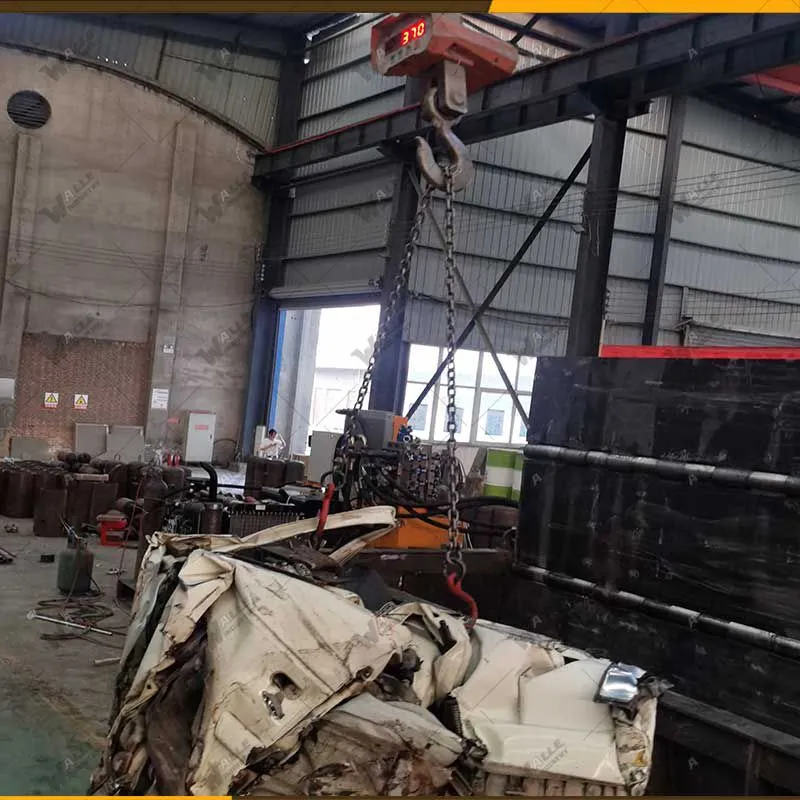

| 7 | Output bale mode | Crane | ||||||
| 8 | Bale density(Kg/m3) | ≥2000(Fe) | ||||||
| 9 | Single cycle time | ≥130S | ||||||
| 10 | Operation mode | Handle operation | ||||||
| 11 | Equipment weight | 30T | ||||||
| 12 | Dimensions of equipment | 6500*2400*2700mm | ||||||
| 13 | Engine | Model | HBE | Power | 150HP | |||
| Rolling | 2000r/min | Quantity | 1 | |||||
| 14 | Oil pump | Model | A4V180+180 | Pressure | 31.5Mpa | |||
| Flow | 376ml/r | Quantity | 1 | |||||
| 15 | Average fuel consumption | 15L/h | ||||||
