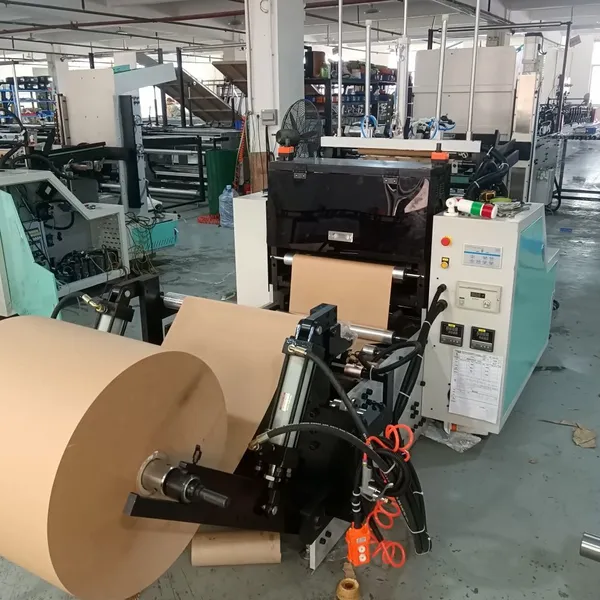

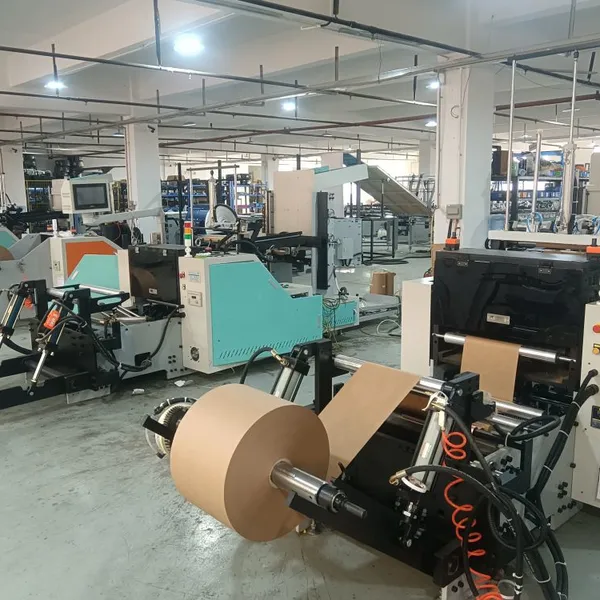

Yinaier Automatic Honeycomb Paper Die-cutting Machine



Dongguan Yinaier Automation Equipment Co., Ltd.

Automatic honeycomb paper die-cutting machine

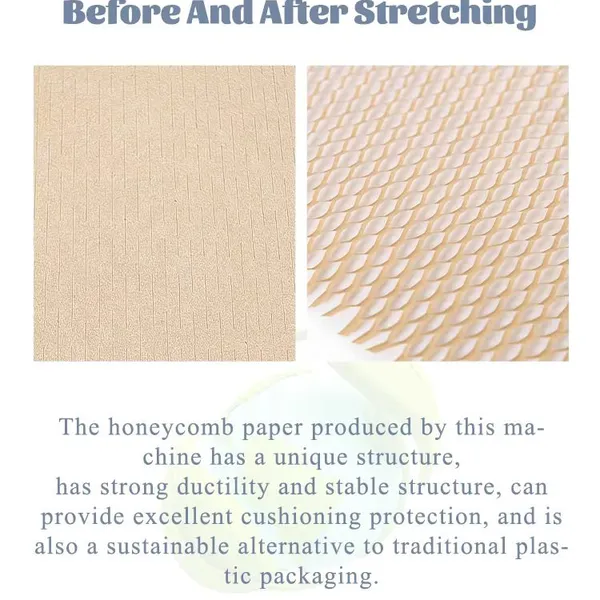

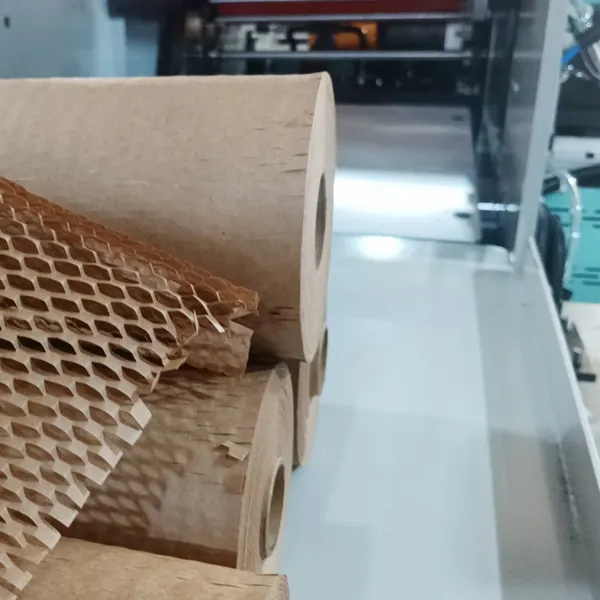

Our honeycomb paper die-cutting machine have the characteristics of easy operation, stable and reliable production, easy maintain and low maintenance cost. It can be used to make honeycomb packing paper/wrapping paper which is an eco-friendly and economical alternative to plastic packing buffer.

Advantage:

1.Hydraulic lifting section: Alternative to manual lifting

2.Automatic deviation correction section: Alternative to manual deviation correction

3.Die-cutting section: die-cutting roller made by special cold work die steel,one sharpen can work at least 3 million meter.

4.Paper tube loading section: Automatic loading paper tube, air shaft, air inflation and extaction of air shaft, placement of finished product

5.Paper tube placement section: Can place 40-50pcs at a time.

6.Prodcuts receiving section: No need manual collect each roll when it done.

7.PLC, servo motor and HMI control



We believe that honeycomb paper making machine offers an unbeatable combination of quality, performance, and value, it is your money maker. If you have any questions about this product or would like to learn more about how it can benefit your business, please don't hesitate to contact us. We are dedicated to providing excellent customer service and helping our customers achieve their business goals.

Thank you for considering honeycomb paper making machine. We look forward to the opportunity to work with you and help you achieve success.



Reach us for more details, mobile, WA, WC same:+86 13538323093

Email: enel@dgyinaier.com



Technical Parameter

Model: AMCXMQ-550

Machine Size(L*W*H): 4840*2288* 2100mm,

Speed: 5-280m/min adjustable

Die-cutting Roller width: 550mm

Max material width: 535mm (20inch, 15inch and 12inch width most)

Power: 6KW

Voltage: Three-phase four-wire 380V/50Hz or as customer requirement

Weight: 2500KG



* 1.Do you have a minimum order quantity?

Yes, we require all international orders to have an ongoing minimum order quantity.



* 2.What are your prices?

We have Many different type model, different model different price, please contact us for more information Our prices also are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.



* 3.Can you supply the relevant documentation?

Yes, we can provide most documentation including export documents where required.



* 4.What is the average lead time?

Lead time is 15-45 days after receiving the depositThe lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.



* 5.What kinds of payment methods do you accept?

You can make the payment by T/T 30% deposit in advance, 70% balance before shipping or against the copy of B/L.



* 6.Do you guarantee safe and secure delivery of products?

Yes, we always use high quality export packaging. Disassemble the machine by sections and packing wooden box, convenient for loading and loading container.



* 7.How about the shipping fees?

The shipping cost depends on the way you choose to get the goods. Commonly by sea. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
