high hardness wear resistant plate hardfacing coal mining mill roller repairing flux cored welding wire
Used for repairing coal grinding mill, grinding disc in power plant and vertical mill roller, raw mill, clinker grinding mill, grinding disc, etc. In cement industry.
Flux cored welding wire/ wear resistant welding wire/ hardfacing wire
| MODEL | HB-YD88 | |||
| DIAMETER | 1.2mm; 1.6mm | |||
| MAIN INGREDIENTS |
C |
Cr |
Mn |
Si |
| CONTENT(%) |
3.5~4.5 |
24.0-27.5 |
1.0-2.5 |
0.50-1.50 |
| PACKAGE | 15kgs/spool. No joints, weight can also be customized. | |||
| INSTRUCTION | HB-YD888 is a high wear resistant hardfacing wire, with hardness above 58 HRC, used for hardfacing of wear structual components. The wear resistance is 20-30 times higher than carbon steel and the recommened overlay thickness is 10mm or below. It is suitable for hardfacing of agricultural machinery, mining equipment which need good resistance for abrasive wear, such as hopper, shovel, mud pump and crusher. | |||
We develop our high qualilty wear resistant flux cored welding wires always according to component's characteristic. This guarantees good performance regarding no clearing slag, low welding spatter, smooth surface, high welding efficiency and a transition coefficient above 0.9.
Wodon production capacity is 9000 tons wear resistant flux cored welding wirs per year, positioning ourselves as one of the main players on both domestic and overseas markets. Our stable quality and good service result in increasing domestic and export sales year by year.
Main Features
1. Chemical composition: High carbon high chromium
2. Hardness: HRC58~65
3. Welding wire without any joints
4. Welsing capacity: 9000 tons per year
5. Short delivery time: Generally 7 days, we always prepard the welding wires
6. Good performance: No clearing slag, low welding spatter, smooth surface, high welding efficiency, stable filling rate, etc.
7. We have many experienced professionals to research and develop welding wires according to customers' specified chemical compositions.
8. We can recommend proper welding wires and provide technical solutions based on working conditions.
9. On site inspection and third part inspection are available.,
10. As an ISO9001:2008 approved manufacture, our mission is to improve our management system and provide high quality products continuously.
1. Cutting steel strip
Our steel belt is purchased from China's large steel belt factory. We will test the thickness and stretchability of the steel strip. And cutting the steel belt into 9 segments,then connect these steel belt by steel band butt welder, no broken ends.
2. Cleaning steel strip
Get into the ultrasonic cleaning machine for cleaning the steel strip, and then drying,no water stains on the steel strip.
3. Filling into powder of flux cored welding wires
Firstly, the steel strip is extruded into a U-shaped through the machine,then filling the powder into the steel strip. We have more than 100 kinds of flux cored welding wire, according to the specific purpose to recommend the most suitable flux cored welding wire model. And we can also specialize in the development of customer needs flux cored welding wire. R & D of flux cored welding wire allows customers to test.
4. Drawing forming
Our flux cored welding wire's standard diameter have 1.2mm; 1.6mm; 2.4mm; 2.8mm; 3.2mm; 4.0mm. And we have the CNC machine to control the powder flow, the fluency of welding wires feeding and the diameter. The system of this CNC machine is debugged by our own technical staff, can ensure good wire production efficiency.
5. Packing and finished product's inspection

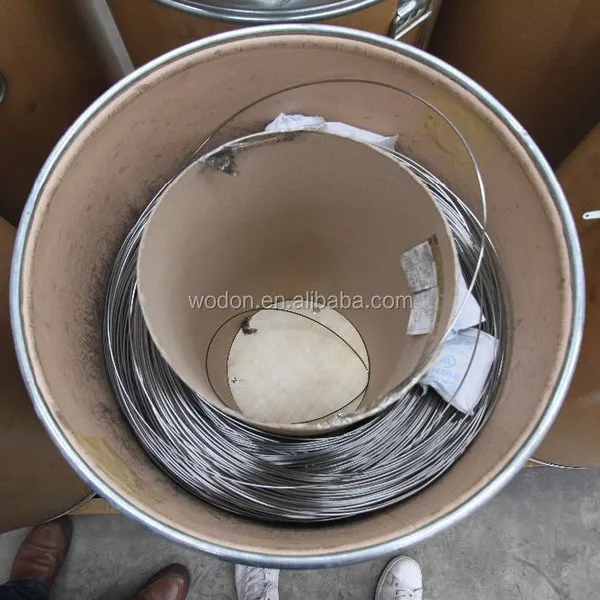

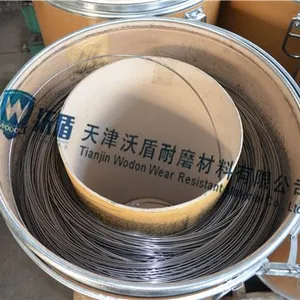

The packing sizes of our welding wire are 150-250kg/barrel and 15kg/box. Our packing barrels are waterproof, and 4 packets of desiccant are placed in each barrel. In order to protect the wire, it is not easy to damp.
Each barrel (package) welding wire is a whole welding wire, without joint. The welding process has no arcing phenomenon and improves production efficiency.
As well as, our quality control personnel will check whether the finished welding wire is qualified every day.
Wodon flux cored welding wire's advantage
1. Wire feeding smooth, electric arc is stable, the diameter is even.
2. The welding wire has small spatter, little dust and more than 90% deposition efficiency.
3. Each barrel (package) welding wire is a whole welding wire, without joint. The welding process has no arcing phenomenon and improves production efficiency.
4. For the metal wear field, independently developed more than 100 kinds of flux cored wear resistant welding wire, can meet a variety of working conditions, parts of the wear-resistant requirements;
5. The matrix and the wear-resisting layer are the metallurgical combined, and the welding does not fall off after welding, and the stress is released evenly after the surfacing.
6. Provide qualification certificate, product specification, surfacing process, composition and hardness test report of surfacing layer, etc.
As a ISO9001 certified factory, Wodon specialize in R&D and manufacturing very good quality. Hardfacing wires, hardfacing wear plates and pipes, gas shielded welding wire and kinds of wear parts, and have more than 10 years experience in this field.
In the United States, we have specialized lab to do wear tests. And in Chian, we have the inspection report issued by quality inspection center of Harbin welding insitute of China academy of machinery science and technology. Test team are made of many experience exports with material science bachelor-degree and the leaders with material science master-degree. In our laboratory, there are have a series of equipment to test our products. Such as, Portable Spectrum can test easily the chemical compositon of wear plate surface. And we have a Spectro MAXX to read the chemical composition diretly from the powder.
We use Rockwell hardness tester to test small sample from our wear plate. The test result are very accurate. We also use Portable ultronic hardness and thickness testers to test easily the hardness an thickness of wear parts on the scene.
As well as we have a series of metallography experiment instruments, so the metallurgical microstructure can be analysed. The chromium carbide volume fraction on the microstructure is above 50%.
The steel manufacturing industry, for example, requires wear protection for hoppers, conveyor liners quickly erode without hardfacing protection. And coke injection line elbows, alloy hopper, reverse fan box, dust handling system, high blast furnance coke screens, replaceable ID fan housing liners, wood pulp transfer line, log stacker fork liners, mill feed chute liner, flat back elows.
In mining, without hardfacing protection, critical components such as chute liners, front-end loader liners, and wear pads prematurely lose their usefulness due to the impact of silicious matter.
Refuse processing plants use overlay products hydrapulper liners and beaters, screw conveyors, conical section wear liners, baler liners, tub liners, transfer points, fan blades and liners, and ash removal systems.

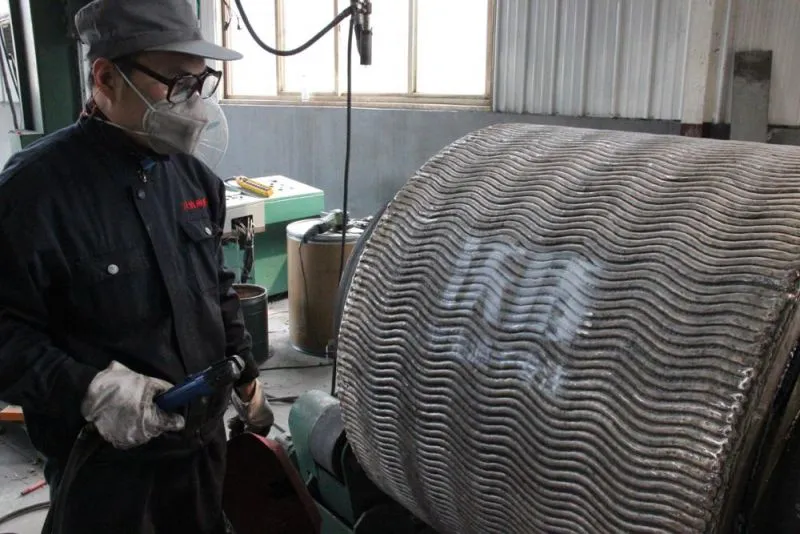

As below is some examples of welding wire repairing :
Coal grinding roller surfacing welding wire; Vertical cement mill surfacing welding wire; Squeeze roller surfacing welding wire; Repair welding wire for middle trough of coal mine; Roller surfacing welding wire; Repair welding wire for steel slag grinding roller; Repair welding wire for star wheel; and other repair welding wire.
Various kinds of gas protection repair welding wires (repair all kinds of wear-resistant parts), high temperature resistant welding wire, grate bar and single tooth roller repair welding wire, impact resistant welding wire and various welding wires containing special elements (which can be customized as required)
Related Products
Jiangsu Wodon Wear Resistant Material Co., Ltd is a company which is specialized in researching and developing wear resistant material. The company was founded in 2014. In this field we have 10 years R&D experience. Now we have more than 200 employees, including more than 50 R&D staffs. And more than 20 wear plate production lines, 3 welding wire production lines. Our company's registered capital is 30,000,000 RMB, with an annual output of 9,000 tons welding wire and 90,000 Square meters wear plate.
With numerous experienced technicians and excellent engineers, our product quality has improved constantly. Since company established, we are adhering to professional development road and win the market with the leading technological level, the excellent product quality and the integrative service concepts. We keep a long-term cooperation with Beijing University Of Technology, Iron And Steel Research Institute, Bejing Electric Power Equipment Research Institute, etc.
Wodon is the leading manufacturer of wear resistant materials in China. In China, many steelworks, cement plants, coal mine plants and so on, buying wear resistant plate, wear resistant flux cored welding wires and wear resistant part from our company. As well as established a stable relationship of long-term cooperation. Abroad, our products also sold to many countries, "made in China" is not only excellent quality but also high cost performance.
| Flux Cored Welding Wire Packing | |
| Packing Size | 1.15m*1.15m*0.88m, 1.15m*0.58m*0.88m,Customized. |
| Delivery Time | Generally 7 days. |
| Packaging Details | 150-250kgs/drum, 15kg/box, 50kg/box. Steel Pallet, Fumigation of wood pallets, wooden box, waterproof packing barrel, Customized. |
Packing: We use customized size pallet to support our products and we can also make special customized steel pallet according to the customer's drawing. So that not only support our product safely but also easy to transport with.
About shipping, customer can use their own designated shipping agencies, or we choose to cooperate with shipping companies. And we would make sure the delivery time is on time. Tranding methods include FOB, CIF, CFR, Letter of credit. About delivery port, because our factory is in Jiangsu, so the first choice is Xingang port. But if the customer has other ports want to ship, we can do the best to match customer's demond. Except for Xingang port, we could shipped from Lianyungang port, Shanghai port, Dalian port, Ningbo port, Shenzhen port, Qingdao port and so on.
Welding wire Warehouse
Customer Visiting Our Factory
Jiangsu Wodon persist to the principle of responsibility, profession, openness and sharing. Exploring business innovation, strengthening personnel development, improving management structure and optimizing operating mechanism. The company implements humanized management, provides study opportunities, continuously improves welfare and work environment. To the pursite of perfect quality wear resistant products and services to customers.
We will always supply our best products, adhere to quality first and keep up the spirit of striving for perfection.
Foreign Exhibition
Q: Are you trading company or manufacturer?
A: We are manufacturer , and we have own sales department and our own inspection technology department.
Q: How long is your delievery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provied samples? is it free or extra?
A: Yes, we could offer the wear plate and flux cored welding wires' samples for free charge.
Q: What is your terms of payment?
A: 30% T/T in advance, balance against copy of BL, L/C, Western Union.
