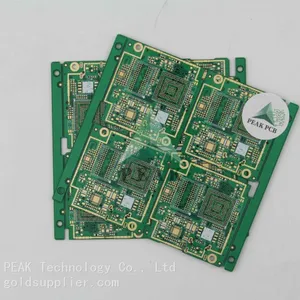

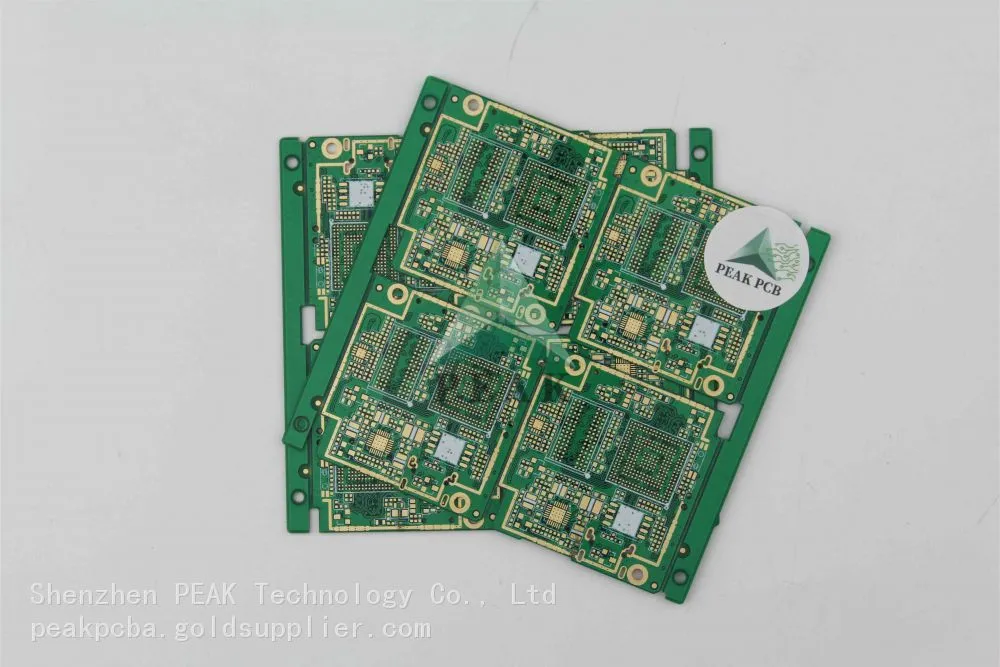

Help Center1.8mm Thickness Immersion Gold 1u Regular 6 Layers PCB
Related Products
-
Multilayer Electronic Circuit Boards PCB & PCBA Assembly Boards Components Sourcing Supplier in ShenzhenUS$ 1.11 - 8.88MOQ: 1 Piece -
18 Years Pcba Supplier EMS Electric SMT Custom OEM Factory Printed Circuit Board Manufacturer Pcb Assembly Pcba ServiceUS$ 1.11 - 8.88MOQ: 1 Piece
-
AA1050 H24 Aluminum Sheet for PCB Chemical Etching 0.5mm 1mm 1.5mm 2mm Smooth GradeUS$ 2.6 - 5.2MOQ: 100 Kilograms
-
RoHS REACH Compliant Nickel Alloy Coil Strip Pure Nickel 200 Electronics PCB Connector GradeUS$ 20 - 70MOQ: 100 Kilograms
-
Professional AC Transformer Price12Vac 1250mA 15W 36W PCB Power Supply IntelligentUS$ 2 - 5MOQ: 50 Pieces
Brand Name : PEAK PCB
PCB Type : Regular Multilayer PCB
Number of Layers : 6 Layers (Max 64 Layers)
Finished Thickness : 1.8 mm (Max 8mm)
Base Material : FR4 TG150
Finished Inner Copper Thickness : Hoz (Max 14oz)
Finished Outer Copper Thickness : 1oz (Max 14oz)
Min. Mechanical Hole : 0.3mm (Min 0.1mm)
Min. Line Width : 3.0 mil (Min 2mil)
Min. Line Spacing : 3.0 mil (Min 2mil)
Surface Finishing : ENIG 1u
Solder Mask : Green
Silk Screen : White
Thickness Tolerance : ±10%
Impedance Control Accuracy : ±10% (min±5%)
Outline Profile : Rout/ V-cut/ Bridge/ Stamp Hole
Testing Service : 100% AOI ICT FCT Testing
Special Processes : No
PCB Standard : IPC-A-610 E Class II
Application : Electronics Device
Supply Ability : Sample and Mass Production
Place of Origin : Guangdong, China
Packaging Inner : Vacuum Packing/ Anti-Static Package
Packaging Outer : Export Carton/ Customizable
Port : Shenzhen, Hongkong
Acceptable File Format : Gerber file, Powerpcb, CAD, AUTOCAD, ORCAD, P-CAD, CAM-350, CAM2000
