Granule Packing Machine

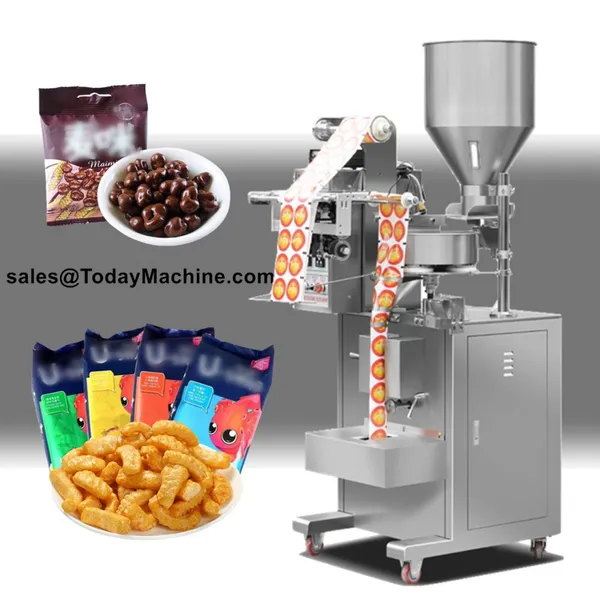

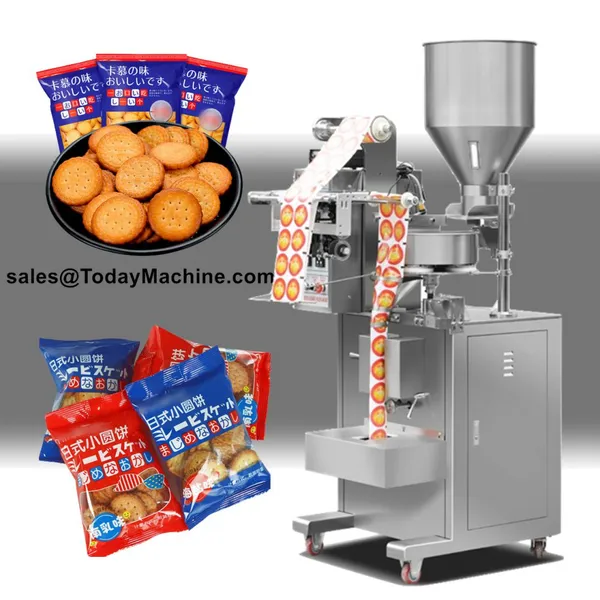

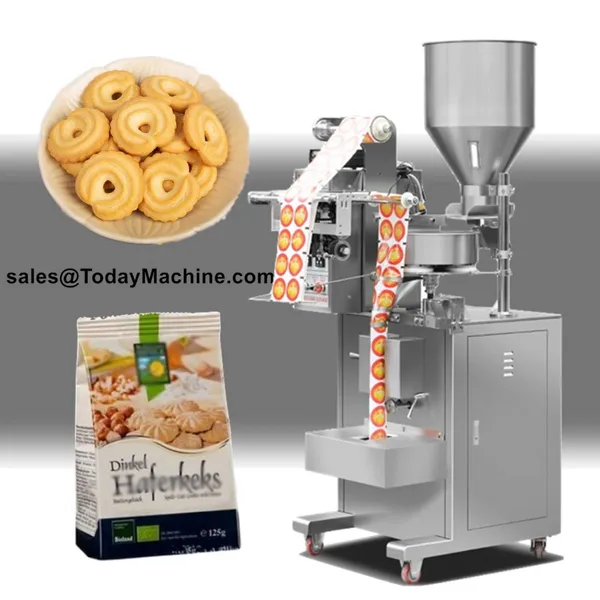

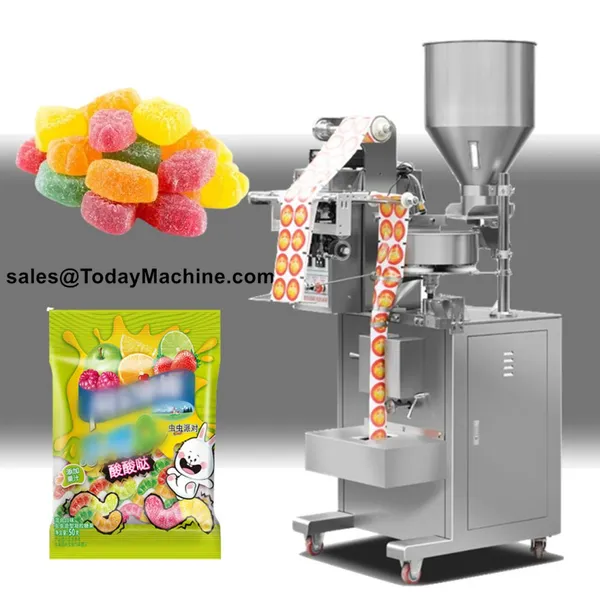

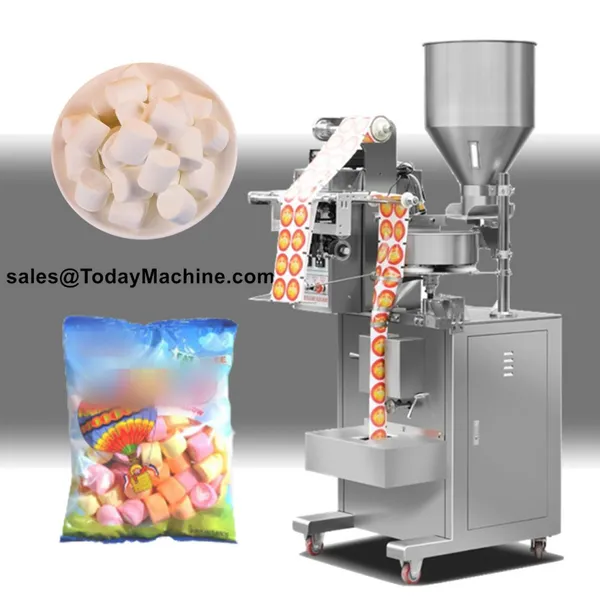

A granule packing machine with a volumetric cup filler is a type of packaging machine that is used to package granular or powdered products such as sugar, salt, coffee, and spices. The volumetric cup filler is a key component of this machine, which is designed to measure a specific volume of product and dispense it into the packaging material.
The volumetric cup filler consists of a cup or scoop that is sized to measure a specific volume of product. The cup is attached to a conveyor system that moves it along the filling line. As the cup moves along the line, it passes through a product dispenser that fills the cup with the correct amount of product. Once the cup is filled, it is released into the packaging material, which is then sealed to create a finished product package.
Accurate and consistent filling: The volumetric cup filler accurately measures and dispenses a precise volume of product, ensuring that each package contains the same amount of product.
Speed: These machines are available in different sizes and configurations, ranging from low-volume to high-speed production lines capable of packaging thousands of products per hour.
Easy to operate: Granule packing machines with volumetric cup fillers are user-friendly and require minimal training to operate.
Durable: These machines are typically made of high-quality materials, making them durable and long-lasting.
INDUSTRIES AND APPLICATIONS
1.Food and beverage industry: These machines are commonly used in the food and beverage industry to package granular or powdered products such as sugar, salt, coffee, and spices.
2.Pharmaceutical industry: Used in the pharmaceutical industry to package granular or powdered medications.
3.Cosmetics industry: Used in the cosmetics industry to package powders such as talcum powder, face powders, and other similar products.
4.Chemical industry: Used in the chemical industry to package granular or powdered chemicals such as fertilizers, pesticides, and other similar products.
TECHNICAL SPECIFICATION
Model |
VFFS-280C |
VFFS-280C-PLUS |
VFFS-450C |
VFFS-600C |
Film width |
Max 300mm |
Max 320mm |
Max 420mm |
Max 580mm |
Bag size |
L:30-175/190/210mm W:25-145mm |
L:40-240/280/380mm W:25-140mm |
L:50-275/295mm W:60-195mm |
L:50-380mm W:60-280mm |
Output |
40-90 pcs/min |
30-60 pcs/min |
15-40 pcs/min |
10-30 pcs/min |
|
Packing range (ml≠g) |
1-20g 10-100g
|
20-130g 50-250ml |
100-500g 100/500-1000g
|
100-500g 100/500-1000g |
Dimension |
1200x1000x1750 mm |
1200x1000x2000 mm |
1300x1100x2100 mm |
1500x1300x2200 mm |
Total power |
1.5KW |
1.6KW |
2.6KW |
3KW |
Weight |
350kg |
400kg |
450kg |
520kg |
