12 Volt 200 Ah Deep Cycle 12 V 200Ah 250Ah 300Ah AGM Vrla Gel Battery S Energy Storage Battery

12 Volt 200 Ah Deep Cycle 12 V 200Ah 250Ah 300Ah AGM Vrla Gel Battery S Energy Storage Battery photo-1

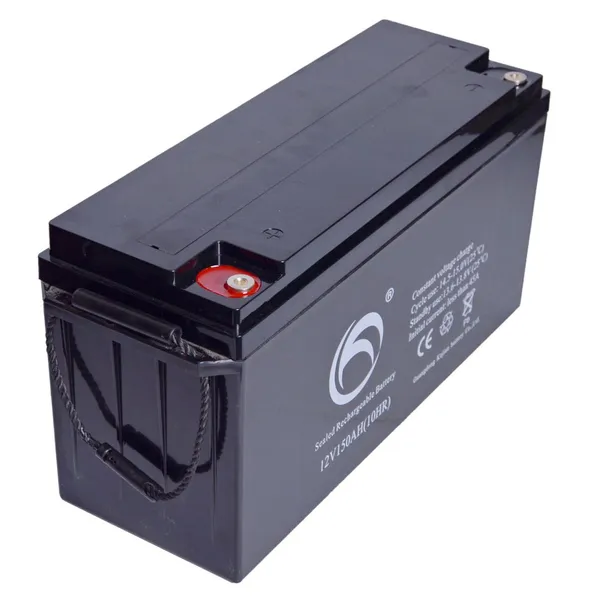

12 Volt 200 Ah Deep Cycle 12 V 200Ah 250Ah 300Ah AGM Vrla Gel Battery S Energy Storage Battery photo-2

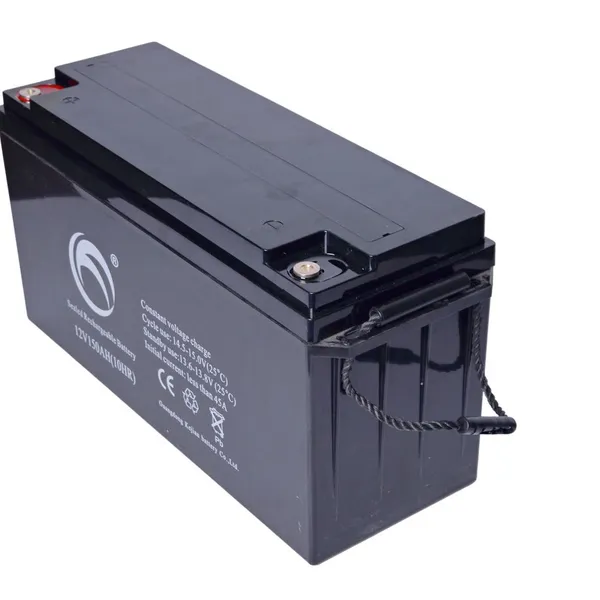

12 Volt 200 Ah Deep Cycle 12 V 200Ah 250Ah 300Ah AGM Vrla Gel Battery S Energy Storage Battery photo-3
US$ 165 - 175 MOQ: 10 Units
Key Specifications
Get Latest Price
Brand Name:
OEM
Place of Origin:
China
Model Number:
K-000406
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
25 days
Brand Name OEM
Place of Origin China
Model Number K-000406
Type Other, lead acid battery
Nominal Capacity 200AH
Nominal Voltage 12V





Product descriptions from the supplier

Overview

Solar Battery Gel 12v 24v 48v 100ah 150AH 200ah 300ah 400ah Rechargeable Lead Acid Batteries Wholesale whatsapp:+8618925400919


Product Description


 Safety Lead Acid GEL Solar Inverter Battery 200AH 24V 12V 200AH Battery

rechargeable storage solar lead acid 12v inverter ups deep cycle gel batteries

Features and Benefits:



*Environment-friendly

*Lower internal resistance

*Positive and negative plates in lead calcium tin alloy

*Superior energy density and very high power output

*Operates at a low internal pressure

*Gas recombination

*A recognized component of CE

*Lead calcium grids for extended life six months shelf lifespan at 20°C

12V 200AH Battery Spec.:



1.Dimension and Weight

L521*W238*H218mm

46KG / 51KG / 56KG / 58KG / 61.5KG

2.Functional Parameter Nominal voltage 12V
Nominal capacity (10 hour rate) 200AH
Number of cells 6 cells
3.Rated Capacity at 25℃ (77℉) 10 hour rate (0.1C, 10.8V) 200AH
3 hour rate (0.25C, 10.8V) 144.7AH
1 hour rate (0.55C, 10.5V) 110.1AH

4.Capacity Affected by

Temperature (10 hour rate)

40℃  (104℉) 103%
25℃  (77℉) 100%
0℃  (32℉) 85%
-15℃  (5℉) 65%
5.Environment Temperature Discharge temperature -20~60℃
Charge temperature 0~50℃
Storage temperature -20~60℃

6.Inner Resistance & Max.

Discharge Current

Fully charged battery at 25℃ (77℉) 3.5mΩ
Max. discharge current 3500A(5s)
Short circuit current 10000A
7.Self-discharge at 25℃ (77℉) Capacity after 3 month storage 91%
Capacity after 6 month storage 82%
Capacity after 9 month storage 73%
Capacity after 12 month storage 64%

8.Constant Voltage Charging

at 25℃ (77℉)

Cyclic use 14.4~14.9V
Maximum charging current 50A
Temperature compensation -30mV/℃
Float use 13.6~13.8V
Temperature compensation -20mV/℃

Product Tags: Deep Cycle 12V 200ah Battery , 12V200AH battery , 12V ups battery
