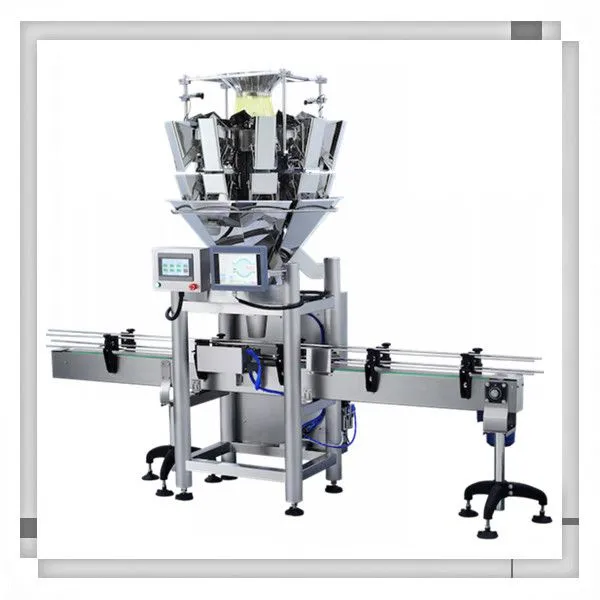

Bottle Weigher Line
A precision packaging system, a linear weighing apparatus is employed to fill containers – be it boxes or bottles – with a predetermined weight of a product. Using a linear or horizontal conveyor belt, containers are transported beneath an array of weighing hoppers where a precisely measured quantity of product is dispensed into each container.
jar filler
Multiple Hoppers: The device boasts an abundance of weighing hoppers, facilitating the simultaneous filling of numerous containers.
Touch Screen Control Panel: Feature an intuitive touch-based interface that simplifies the task of configuring critical variables, such as mass, velocity, and receptacle dimensions.
Auto Correction: The equipment could potentially incorporate an automated calibration feature that compensates for slight fluctuations in the density of the product, thus guaranteeing uniformity in the filling masses.
Variable Speed Control: Boasts a flexible speed control feature, allowing for effortless optimization of conveyor belt speed and increased production efficiency.
INDUSTRIES AND APPLICATIONS
Food and Beverage Industry: Linear weighing machines for containers are used to fill containers with a predetermined weight of food products such as snacks, cereals, nuts, and dried fruits. They are also used to fill bags of flour, sugar, and other baking ingredients.
Pharmaceutical Industry: Linear weighing machines for containers are used to fill containers with a precise weight of pharmaceutical products such as powders, capsules, and tablets.
Cosmetic Industry: Linear weighing machines for containers are used to fill containers with a precise weight of cosmetic products such as powders, lotions, and creams.
Chemical Industry: Linear weighing machines for containers are used to fill containers with a precise weight of chemical products such as detergents, cleaning agents, and fertilizers.
Pet Food Industry: Linear weighing machines for containers are used to fill bags and containers with a precise weight of pet food products such as kibble and dry food.
TECHNICAL SPECIFICATION
Model |
Weigher |
Circle |
Range |
Error |
Speed (B/M) |
Power |
Weight (kg) |
Dimension (mm) |
DCSL-1H |
1 |
1 bottle |
10-100g 50-500g 100-1000g 200-2000g 500-5000g |
±2g |
10-30 |
220V 2kw |
250 |
2000x900x1890 |
DCSL-2H |
2 |
1 bottle 2 bottle |
10-100g 50-500g 100-1000g 200-2000g |
±2g |
10-40 |
220V 2.5kw |
300 |
2000x900x1890 |
DCSL-4H |
4 |
1 bottle 2 bottle 4 bottle |
10-100g 50-500g 100-1000g |
±2g |
10-40 |
220V 3.3kw |
350 |
2000x900x1890 |
DCSL-10H |
10 |
1 bottle |
10-100g 50-500g 100-1000g |
±2g |
20-60 |
220V 3.3kw |
400 |
2000x900x1890 |
