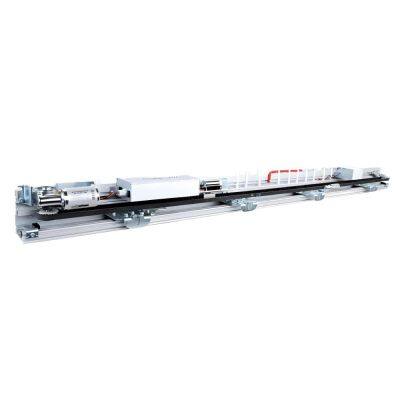

Automatic Sliding Doors System
- 1200 Set / Sets per Month
- Ningbo China
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 10 days
You May Like
-
MBSafe Professional sensor door automatic Sliding Door opener unit Automatic Door Sliding system kit for hotel
-
HB-100-200 mbsafe dunkermotoren automatic sliding glass door operator unit for shopping mall
-
200KG electric sliding door system automatic sliding door unit for automatic glass door sensor
-
Commercial Automatic Sensing Aluminum Sliding Double Open Glass Entrance Door Electric Commercial Front Automatic Sensor Door
-
Automatic Hermetic Sliding Door for Clean Room
-
HB-C9-C10 Modern Commercial Remote Controlled Electric Sliding Door Motor Sliding Door Operator Automatic Door Sliding System
Product Details
Brand Name | MBSafe | Place of Origin | China | |
Model Number | HB-100/HB-200 |
Product Description
Product Description

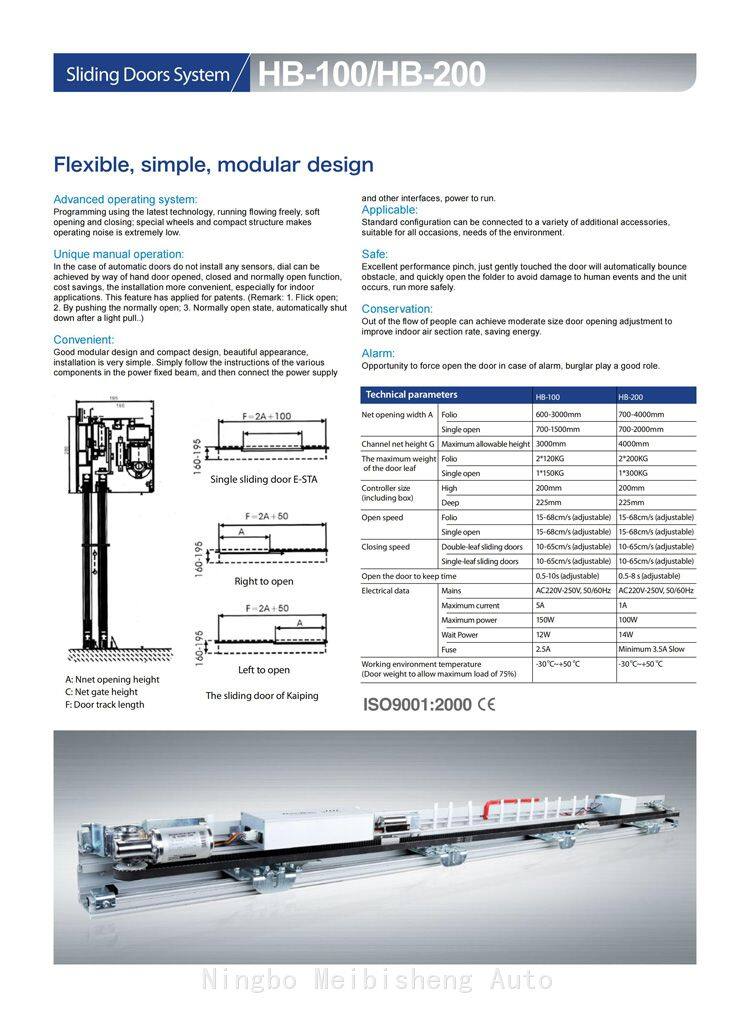

Technical Parameters
HB-100 | HB-200 | ||
Net opening width A | Folio | 600-3000mm | 700-4000mm |
Single open | 700-1500mm | 700-2000mm | |
Channel net height G | Maximum allowable height | 3000mm | 4000mm |
The maximum weight of the door leaf | Folio | 2*120KG | 2*200KG |
Single open | 1*150KG | 1*300KG | |
Controller size (including box) | High | 200mm | 200mm |
Deep | 225mm | 225mm | |
Open speed | Folio | 15-68cm/s(adjustable) | 15-68cm/s(adjustable) |
Single open | 15-68cm/s(adjustable) | 15-68cm/s(adjustable) | |
Closing speed | Double-leaf sliding doors | 10-65cm/s(adjustable) | 10-65cm/s(adjustable) |
Single-leaf sliding doors | 10-65cm/s(adjustable) | 10-65cm/s(adjustable) | |
Open the door to keep time | 0.5-10s(adjustable) | 0.5-8s(adjustable) | |
Electrical data | Mains | AC110V/220V,50/60Hz | AC110V/220V,50/60Hz |
Maximum current | 5A | 1A | |
Maximum power | 55W | 100W | |
Wait power | 12W | 14W | |
Fuse | 2.5A | Minimum 3.5A slow | |
Working environment temperature (Door weight to allow maximum load of 75%) | -30℃~+50℃ | -30℃~+50℃ |
Flexible, simple, modular design
*Advanced Operating System: Programming using the latest technology, running flowing freely, soft opening and closing; special wheels and compact structure makes operating noise is extremely low.
*Unique manual operation: In the case of automatic doors do not install any sensors, dial can be achieved by way of hand door opened, closed and normally open function, cost savings, the installation more convenient, especially for indoor applications. This feature has applied for patents. (Remark:1.Flick open; 2.By pushing the normally open; 3.Normally open state, automatically shutdown after a light pull..)
*Convenient: Good modular design and compact design, beautiful appearance, installation is very simple. Simply follow the instructions of the various components in the power fixed beam, and then connect the power supply and other interfaces, power to run.
*Application: Standard configuration can be connected to a variety of additional accessories, suitable for all occasions , needs to the environment.
*Safe: Excellent performance pinch, just gently touched the door will automatically bounce obstacle, and quickly open the folder to avoid damage to human events and the unit occurs, run more safely.
*Conservation: Out of the flow of people can achieve moderate size door opening adjustment to improve indoor air section rate, saving energy.
*Alarm: Opportunity to force open the door in case of alarm, burglar play a good role.
