Pulse oximeter Radical 7 parameters (standard with three parameters)
1、 Measurement range
SPO2 0-100%
Pulse rate 25-240 beats per minute
Blood perfusion index (PI) 0.02-20%
2、 Accuracy and sensitivity
SPO2 70-100%
When there is no physical movement
Adults/Children/Infants ± 2%
Newborns ± 3%
When in motion
Adults/Children/Infants/Newborns ± 3%
During low perfusion
Adults/Children/Infants/Newborns ± 2%
SPO2 60-80%
When there is no physical movement
Adults/Children/Infants ± 3%
Pulse rate accuracy
Pulse range 25-240 beats per minute
When there is no physical movement
Adults/children/infants/newborns ± 3 times/minute
When in motion
Adults/children/infants/newborns ± 5 times/minute
During low perfusion
Adults/children/infants/newborns ± 3 times/minute
Sensitivity setting:
APOD (Adaptive Detection of Sensor Detachment)
Normal sensitivity
Three types of maximum sensitivity
3、 Resolution
Blood oxygen saturation (% SpO2) 1%
Pulse rate (bpm) once per minute
4、 Operational performance
The base and the host can be separated for easy transportation and sampling inspection.
The display screen has a gravity driven automatic rotation function: the horizontal and vertical directions can be automatically switched.
5、 Alarm
Sound and visual alarms for high and low blood oxygen saturation and pulse rate (SPO2 range 1-99%, PR range 30-235 beats/minute, PI range 0.03-19%)
Sensor status, system failure, and low battery alarm
Sound and visual alarms
3D alarm: In addition to upper and lower limit alarms, the system can also set an audible and visual alarm when the patient reaches a specific number of desaturation times within a specific time period. Especially before a typical low alarm event occurs, there may have been a limited period of instantaneous desaturation symptoms. Therefore, 3D alarm can prompt clinical monitoring or adjustment of treatment plans more closely.
6、 Data display and storage
The data shows that: SPO2， Pulse rate (PR), perfusion index (PI), Pleth waveform, alarm status, data trend, status message, Signal IQ， Maximum/Normal/POD Sensitivity, as well as FastSat.
It can provide a minimum of 72 hours of trend data storage based on different resolution settings (2-10 seconds).
7、 Output interface
Serial RS-232 (RDS-1, RDS-3), Nurse Call/Analog Output (RDS-1, RDS-3), SatShare (RDS-1), Philips Vuelink, Spacelabs Universal Flexport (RDS-1, RDS-3)
8、 Environment
Working temperature 0~50 ° C
Transportation/storage temperature -40~70 ° C
Working humidity 10~95% (no condensation)
Product configuration
Product Content Quantity Unit
host
base
1 lead wire
1 manual
Product Overview:

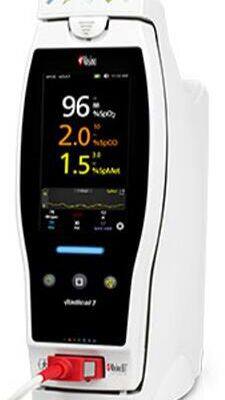

Radical-7 pulse oximeter
Multi functional and upgradable pulse oximeter featuring Masimo rainbow SET
Masimo SET ® monitoring technology
SpO2 PR Pi PVi
Upgradeable rainbow SET monitoring technology
SpHb SpCO SpMet SpOC RRa
Adapt to constantly changing monitoring needs
This device can be used as a bedside, handheld, or transport device, combining three purposes in one
Function:
Rechargeable battery
The battery life can reach 4 hours and can be used as a handheld device for long-term monitoring
Connection options
Internally using 802.11 radio&Bluetooth ® Realize wireless connection
Electronic Records
Through Masimo Patient SafetyNet ™* Or Iris Gateway ™ Integrate with the hospital's EMR electronic medical record system to automatically collect patient data
Intuitive user interface
Adopting high-definition multi touch display screen for easy browsing and setting
Volumetric waveform
High resolution volumetric waveform with optional RRa ® Waveform, real-time viewing of relevant data
Automatic rotation of display screen
Multi functional screen, automatically adjustable according to device orientation
Seamless upgrade to root
Can connect to Root ® Patient monitoring and connectivity platform
Customize the display screen to view the highest priority parameters in your clinical settings
By simple gesture control, parameter trends can be moved, unfolded, or folded for in-depth analysis
According to the patient population configuration parameters and alarm settings, it is also possible to select from pre configured patient files
Sound and visual alarms are used to quickly identify alarm parameters
Radical-7 specification
Handheld battery
Type: Lithium battery
Capacity (battery life) 4 hours
Charging time 3 hours
Environmental requirements
Working temperature 0-50 ° C (32-122 ° F)
Working altitude 500-1060mbar
The use of Radical-7 for monitoring SpHb, SpMet, and SpCO cannot replace laboratory blood tests, nor can it be used as the sole basis for diagnosing or treating carbon monoxide poisoning. Before making clinical decisions, blood samples should be analyzed using laboratory instruments.
