Customized12V 24V 36V DC Brushless Motor, BLDC Motor for 50W 100W 200W 300W400W

FOB Price

US$ 10 - 100 / Piece

10 Pieces(Min. Order)

Port shenzhen
Payment TermsT/T
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ODM OEM	Place of Origin	China
Type	Other, brushless	Certification	CCC, CE
Usage	Boat, Car, Electric Bicycle, Fan, Home Appliance	Construction	Permanent Magnet
Efficiency	IE 4	Protect Feature	Totally Enclosed
Voltage(V)	220	Output Power	50-200W
Continuous Current(A)	6A	Speed(RPM)	4000
Commutation	Brushless

Product Description

Dc brushless motor

Customized12V 24V 36V DC Brushless Motor, BLDC Motor for 50W 100W 200W 300W400W

Use

The product is used for various machines, such as 3D printers, CNC machines, medical equipment, weaving and printing equipment, etc.BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Chenille spinning machine

Type

SERVO MOTOR

Torque

0.11N.m

Construction

Shunt Wound

Commutation

Brushless

Protect Feature

Drip-proof

Product Name

BLDC Motor

Rated Speed

4000rpm

Diameter

57mm

Power

46W

Shaft type

Single shaft

No load speed

4800rpm

rated torque

0.11N.m

Nominal voltage

36V

Number of poles

Phase

3-phase

Application： SUITABLE FOR MULTIPLE INDUSTRIES

Applied to carving machines, embroidery machines, wire stripping machines, terminal machines, sock weaving machines, textile machinery, computerized flat knitting machines, food machinery, packaging machinery, stage lighting, winding machines, industrial printers, 3D printers.

Core driving systems for various automation controls and automation equipment

02 Product parameters

Product Name: 57mm Brushless DC Motor

Number of Phase: 3 Phase

Number of Poles: 4 Poles

Rated Voltage: 36v

Rated Speed: 4000rpm

Rated Torque: 0.055N.m ~ 0.44N.m

Rated Current: 1.2A ~ 6.8A

Rated Power: 23w ~ 184w

Product Series	Poles No	Rated Voltage	Rated Speed	Rated Torque	Rated Power	Motor Length
42mm BLDC Motor	8	24v	4000rpm	0.0625~0.25N.m	26~105w	41~100mm
57mm BLDC Motor	4	36v	4000rpm	0.055~0.44N.m	23~184w	37~107mm
60mm BLDC Motor	8	48v	3000rpm	0.3~1.2N.m	94~377w	78~120mm
80mm BLDC Motor	4	48v	3000rpm	0.35~1.4N.m	110~440w	78~138mm
86mm BLDC Motor	8	48v	3000rpm	0.35~2.1N.m	110~660w	71~138.5mm
110mm BLDC Motor	8	310v	3000rpm	1.65~6.6N.m	518~2073w	83~173mm
130mm BLDC Motor	10	310v	3000rpm	2.39~11.94N.m	750~2500w	115~190mm
Above only for representative products, products of special request can be made according to the customer request.

General Specification

Item	Specification
winding type	Star
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max. radial force	75N @20mm form the flange
Max.axial force	15N
Insulation class	Class B
Dielectric strength	500VDC for one minute
Insulation resistance	100MΩ Min., 500VDC

Electrical Specification

Model No.	Unit	Model
Model No.	Unit	JK57BLS005	JK57BLS01	JK57BLS02	JK57BLS03	JK57BLS04
Number of phase	Phase	3
Number of Poles	Poles	4
Rated voltage	VDC	36
Rated speed	Rpm	4000
Rated torque	N.m	0.055	0.11	0.22	0.33	0.44
Rated current	Amps	1.2	2	3.6	5.3	6.8
Rated power	W	23	46	92	138	184
Peak torque	N.m	0.16	0.33	0.66	1	1.32
Peak current	Amps	3.5	6.8	11.5	15.5	20.5
Back E.M.F	V/Krpm	7.8	7.7	7.4	7.3	7.1
Torque constant	N.m/A	0.074	0.073	0.07	0.07	0.068
Rotor inertia	g.cm2	30	75	119	173	230
Body length	mm	37	47	67	87	107
Weight	kg	0.33	0.44	0.75	1	1.25
Sensor		Honeywell
Insulation class		IP30
Degree of protection		-25~ +70℃
Storage temperature		-15~ +50℃
Operating temperature		85% RH or（No condensation）<= 85% RH
Working environment		No direct sunlight, non-corrosive gas, flammable gas, oil mist, no dust.
Altitude		1000m or below
Above only for representative products, products of special request can be made according to the customer request.

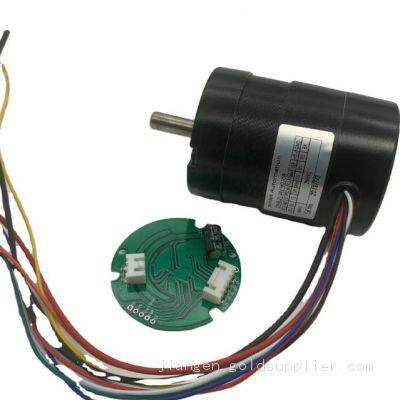

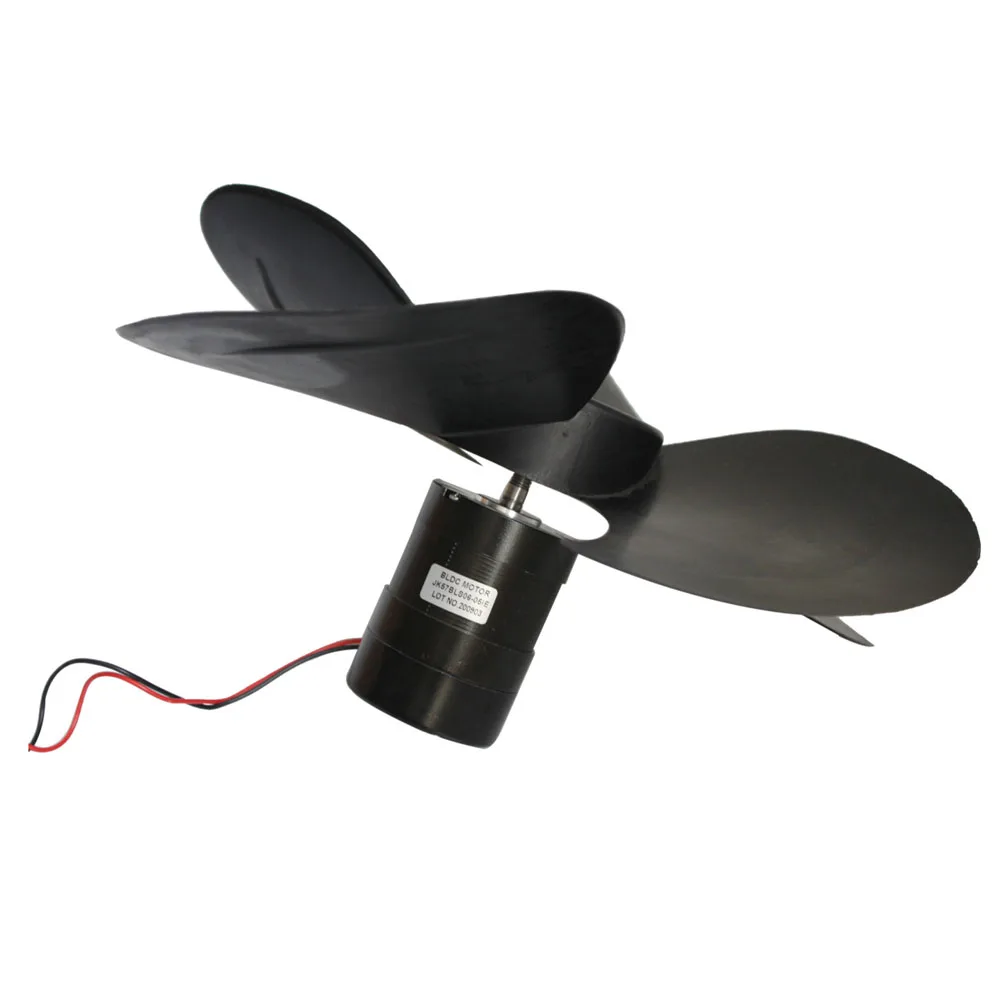

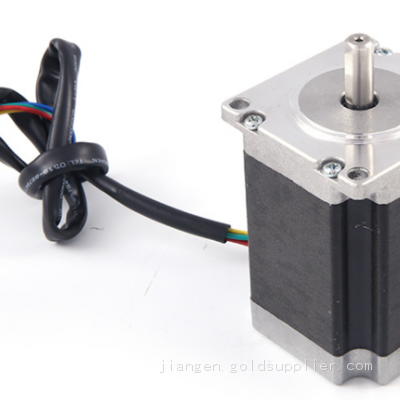

3 Product picture

Company Profile

FAQ

1.Q:Can I get some samples first?

A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days, but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production.
Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
