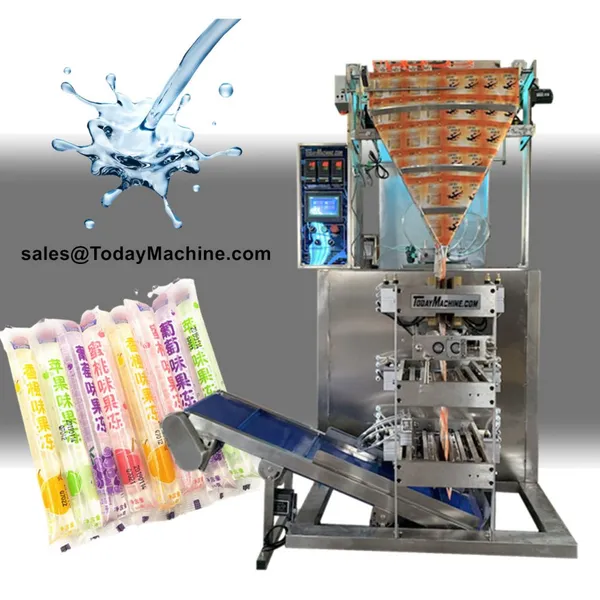

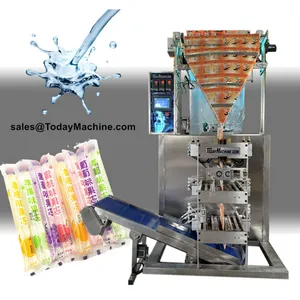

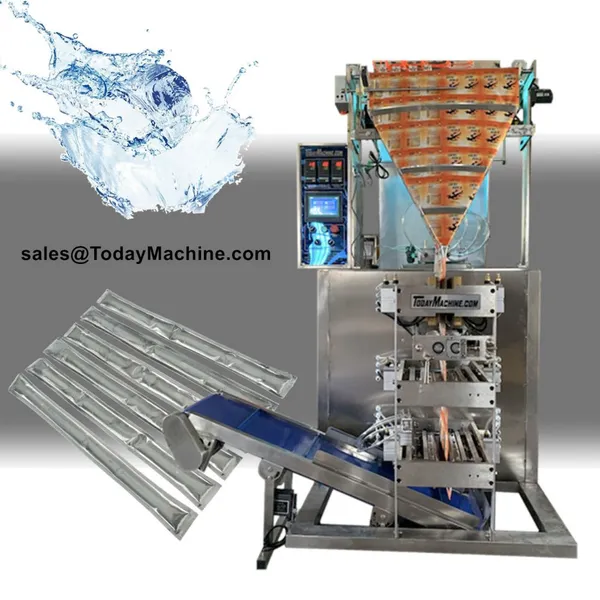

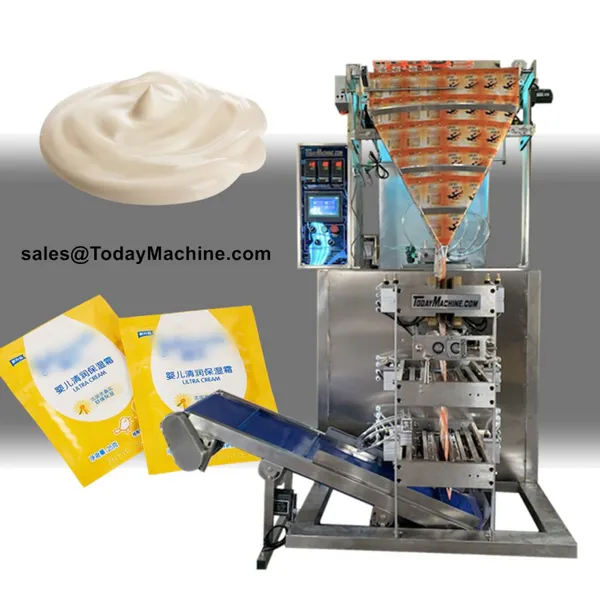

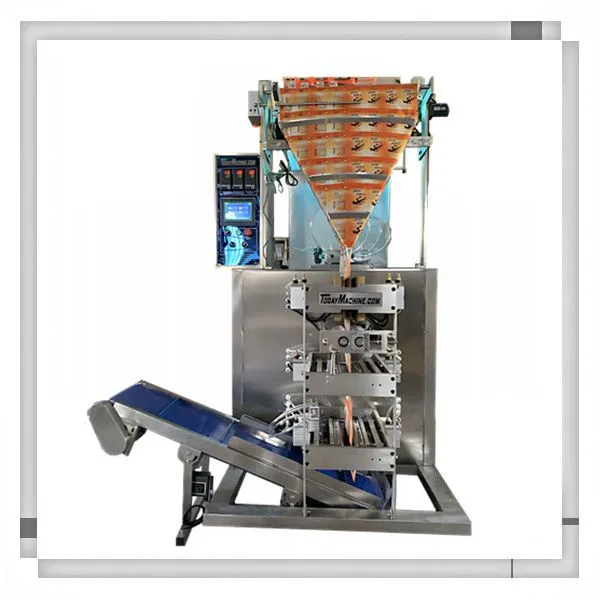

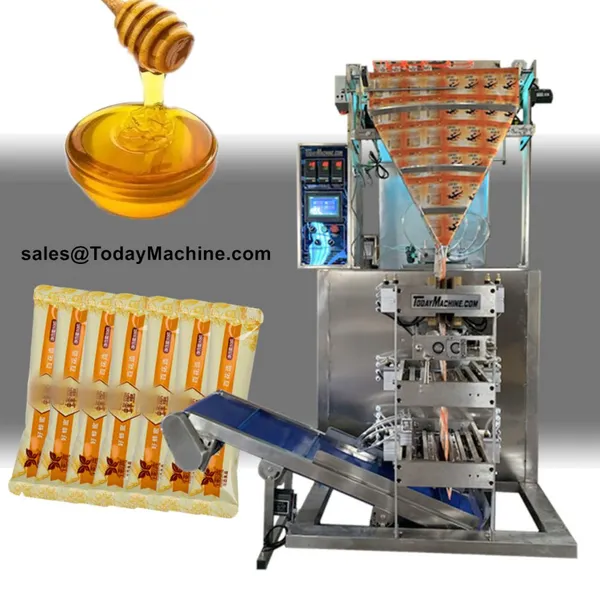

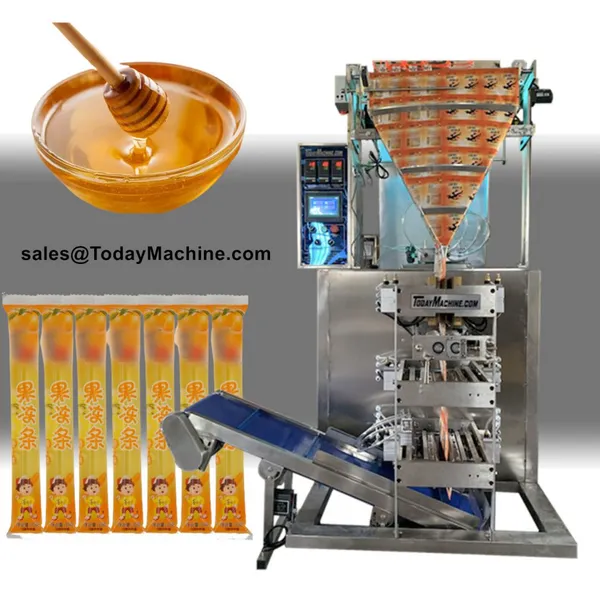

Help CenterMulti Lanes Filling Ketchup Mayonnaise Honey Stick Sachet Packing Machine
Related Products
-
Automatic Multi Lane Mouthwash Stick Gel Drink Liquid Sachet Packing MachineUS$ 8800 - 12000MOQ: 1 Set -
Automatic Ketchup Honey Lotion Cream Multi Lane Sachet Packing MachineUS$ 8800 - 12000MOQ: 1 Set
-
Automatic Multi Lanes Liquid Stick Sachet Packaging MachineUS$ 8800 - 12000MOQ: 1 Set
-
Automatic Liquid Sauce Stick Sachet Vertical Multi Lane Packaging MachineUS$ 8800 - 12000MOQ: 1 Set
-
Automatic Vertical Multi Lane Filling 4 Sides Seal Honey Sauce Shampoo Sachet Packing MachineUS$ 8800 - 12000MOQ: 1 Set
Multi Lane Packaging Machine
A multi-lane liquid form fill seal machine that operates by film roll is a packaging machine that is used to automatically form, fill, and seal pouches or sachets from a continuous film roll.
The film roll is unwound and formed into a tube shape, which is then filled with liquid product through a filling nozzle. The pouch is then sealed on both ends, creating a complete package. The machine can produce several pouches simultaneously, increasing production speed and efficiency.
multi lane sachet packaging machine
High-speed production: Multi-lane machines can form, fill, and seal several pouches simultaneously, increasing production speed and efficiency.
Accurate filling: These machines are designed to provide consistent and accurate filling of pouches to ensure product quality and safety.
Versatility: These machines are suitable for filling and sealing a wide range of liquid products, including beverages, dairy products, and chemical solutions.
Compact design: Multi-lane machines have a compact design that saves space on the production floor.
INDUSTRIES AND APPLICATIONS
1.Food and Beverage Industry: These machines are used for packaging liquid products such as sauces, ketchup, mayonnaise, salad dressings, juices, energy drinks, and water.
2.Pharmaceutical Industry: These machines are used for packaging liquid products such as syrups, cough medicines, and other liquid medicines.
3.Cosmetic Industry: These machines are used for packaging liquid products such as shampoos, conditioners, lotions, and gels.
4.Chemical Industry: These machines are used for packaging liquid products such as detergents, cleaning solutions, and chemicals used in industrial processes.
5.Personal Care Industry: These machines are used for packaging liquid products such as hand sanitizers, mouthwash, and other personal care products.
TECHNICAL SPECIFICATION
Model |
VFFS-M2 |
VFFS-M3 |
VFFS-M4 |
VFFS-M5 |
VFFS-M6 |
Lane |
2 |
3 |
4 |
5 |
6 |
|
Max film width (mm) |
320 420 500 600 |
320 420 500 600 |
320 420 500 600 |
320 420 500 600 |
320 420 500 600 |
Bag type |
4 side seal |
4 side seal |
4 side seal |
4 side seal |
4 side seal |
|
Bag size (mm) |
L: 30-150/250 |
L: 30-150/250 |
L: 30-150/250 |
L: 30-150/250 |
L: 30-150/250 |
Range |
1-10ml 10-100ml 100-200ml |
1-10ml 10-100ml 100-200ml |
1-10ml 10-100ml 100-200ml |
1-10ml 10-100ml 100-200ml |
1-10ml 10-100ml 100-200ml |
Speed |
60-90 bag/min |
90-130 bag/min |
120-180 bag/min |
150-220 bag/min |
180-270 bag/min |
Power |
2kw |
2.5kw |
3kw |
3kw |
3kw |
Power supply |
220V 50Hz/ 110V 60Hz |
220V 50Hz/ 110V 60Hz |
220V 50Hz/ 110V 60Hz |
220V 50Hz/ 110V 60Hz |
220V 50Hz/ 110V 60Hz |
Dimension |
990x1150x1800mm |
990x1150x1800mm |
990x1250x1800mm |
990x1250x1800mm |
990x1250x1800mm |
Weight |
350kg |
400kg |
420kg |
420kg |
450kg |
