HS Series Desktop Interface Type Pickup Open Counter Synchronous Monitoring and Recording

Product Description:

1. Desktop The interface type microphone is designed for synchronous monitoring and recording in open counters and office environments.

2. Adopting gold-plated capacitor microphone head, high fidelity, high sensitivity, high bandwidth, and low noise within 5-50 square meters.

3. Adopting a 0.8mm pinhole design, its internal resonant cavity has been accurately calculated, resulting in clearer sound reception.

4. Adaptive dynamic noise reduction processing, built-in high-speed DSP digital signal processor, two-stage dynamic noise reduction processing.

5. Equipped with a unique electronic noise dynamic closed-loop suppression circuit, it completely eliminates the "hissing" electronic noise.

6. Built in ALC level control circuit, automatically adjusts the high and low intensity of voice and instantaneous voltage and current surges.

7. Ultra long audio signal transmission technology, using RVVP3 × 0.5 mm2 shielded cable to transmit 3 kilometers without distortion.

8. Integrated professional audio processor, which can directly drive active speakers, hard disk recorders, tape recorders, etc.

9. Passed the EU Environmental ROHS Directive 2002/95/EC construction standards.

10. Passed the EU CE standard and the highest inspection synchronous recording and video system construction specifications.

11. Tested according to relevant standards of the Federal Communications Commission (FCC) and corresponding system construction specifications.

12. Certified according to the international quality management system standard ISO9001.

Product parameters:

Project microphone parameters

Pick up range 5-50 square meters (omnidirectional) (directional) 1-3 meters/continuously adjustable

Pick up sound head recording interview points to sound head

Directional Characteristics Omnidirectional/Directional Optional

Sensitivity -45dB

Signal to noise ratio 50dB (1-meter 40dB audio source) 40dB (10 meter 40dB audio source) 1KHz at 1 Pa

Maximum sound pressure 120dB SPL (1KHz, THD 1%)

Frequency response 20Hz~20kHz

Signal amplitude 2.5Vpp/-25db

High definition linear drive for signal processing, AGC automatic gain

Dynamic range 80dB (1KHz at Max dB SPL)

Output impedance 600-1K ohms unbalanced

Audio output value 2.5Vpp/100dB sound pressure

Protection circuit polarity protection, misconnection protection, lightning protection

Connection method three wire system: power cord (red), audio (white), public ground (black)

3000 meter twisted pair cable for signal transmission, shielded cable (please use shielded cable for electromagnetic complex environment)

Large gold-plated condenser microphone head

Working environment temperature -40 ℃~75 ℃

Electromagnetic compatibility complies with GB 9254-2008

Reliability index MTNF ≥ 80000 hours

Shell material: Zinc aluminum alloy+mesh cover

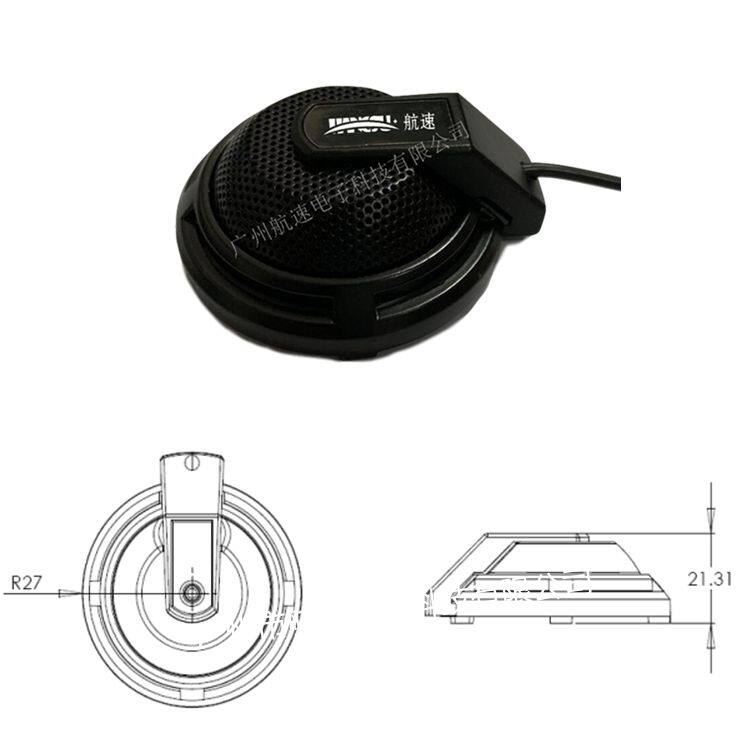

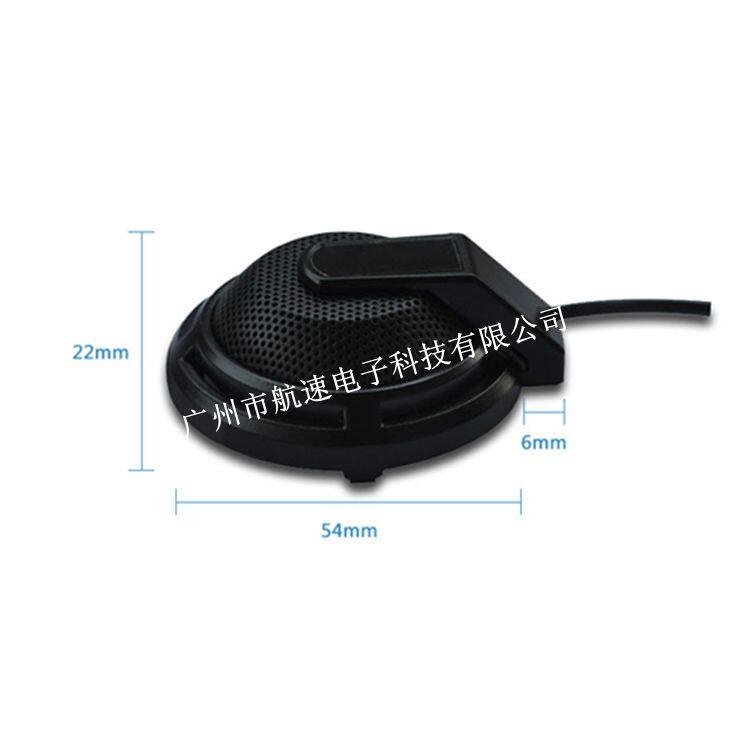

Dimensions: 21mm × Φ 54mm

Weight 125 grams

Supply situation in stock
