Continuous Automatic Heat Sealer Machine for Plastic Bag Aluminum Foil Pouch Horizontal

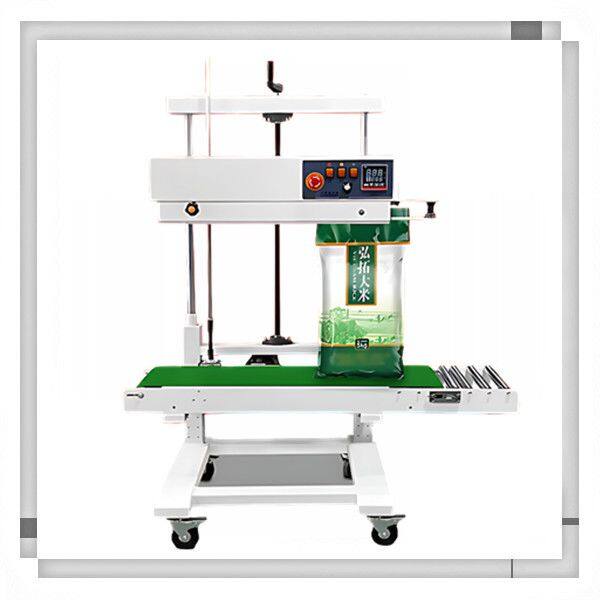

Band Sealer
A Band Sealer is a highly specialized device designed to create an impervious seal on bags and pouches by utilizing a heated sealing element. The machine incorporates a conveyor belt system that transports the bags through the sealer, providing precise sealing adjustments for varying bag sizes and materials. These machines are specifically crafted for sealing powders, liquids, and other products that necessitate an airtight seal, providing a reliable and efficient solution for packaging requirements.
Plastic Bag Sealer For PP PVC Foil Bag
pouch sealer
Innovative rephrasing: Our dynamic conveyor belt is versatile enough to adapt to various bag sizes and materials, thanks to its customizable configuration.
Variable speed control: Achieve optimal results in your packaging operations by leveraging the adjustable speed function, which lets you customize the speed of both the conveyor and sealing steps.
Digital temperature control: A digital temperature control ensures that the sealing element is at the right temperature for the material being used.
Versatile: It can be used with a variety of bag materials, including polyethylene, polypropylene, and laminated films.
INDUSTRIES AND APPLICATIONS
Food industry: Band sealers are used to seal bags of snacks, nuts, dried fruits, spices, and other food products.
Pharmaceutical industry: They are used to seal bags of medical supplies, drugs, and supplements.
Chemical industry: Band sealers are used to seal bags of chemicals, fertilizers, and other related products.
Cosmetics industry: They are used to seal bags of cosmetic products such as lotions, creams, and powders.
Electronic industry: Band sealers are used to seal bags of electronic components, cables, and other related products.
TECHNICAL SPECIFICATION
Model | FRB-770H | FRB-770V | FRB-770V-PLUS | FRB-770V-MAX |
Working way | Horizontal | Vertical | Vertical | Vertical |
Frame option | Paint | Paint | Paint | Paint |
Date option | Stamping | Stamping | Stamping | Stamping |
Air option | – | – | – | – |
Bag Height | – | 150-270mm | 280-500mm | 100-750mm |
Sealing length | Unlimited | Unlimited | Unlimited | Unlimited |
Loaded weight | <3kg | <5kg | <15kg | <50kg |
Sealing temperature | 0-300°C | 0-300°C | 0-300°C | 0-400°C |
Seal capacity | 1-16m/min | 1-16m/min | 1-16m/min | 1-10m/min |
Seal Width | 10mm | 10mm | 10mm | 12mm |
Seal thickness | 0.02-0.08mm | 0.02-0.08mm | 0.02-0.08mm | 0.02-0.08mm |
Electric | 220V/110V | 220V/110V | 220V/110V | 220V/110V |
Power | 600w | 700w | 700w | 900w |
Dimension | 840x380x320 | 850x400x450 | 850x400x600 | 1430x680x1480 |
weight | 24kg | 28kg | 36kg | 130kg |
