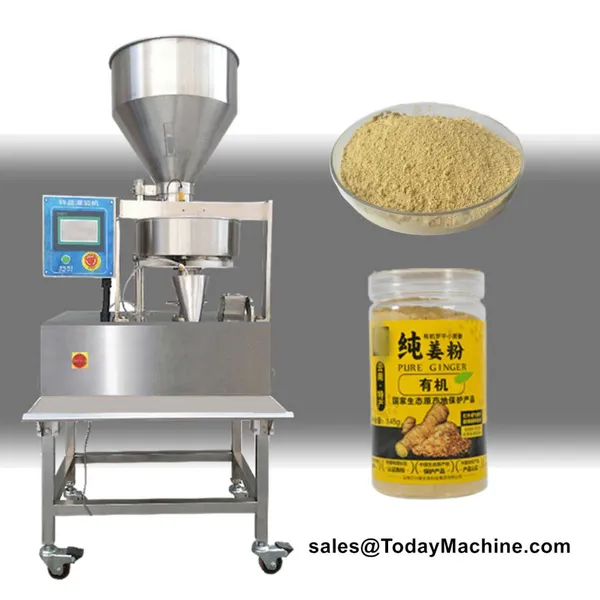

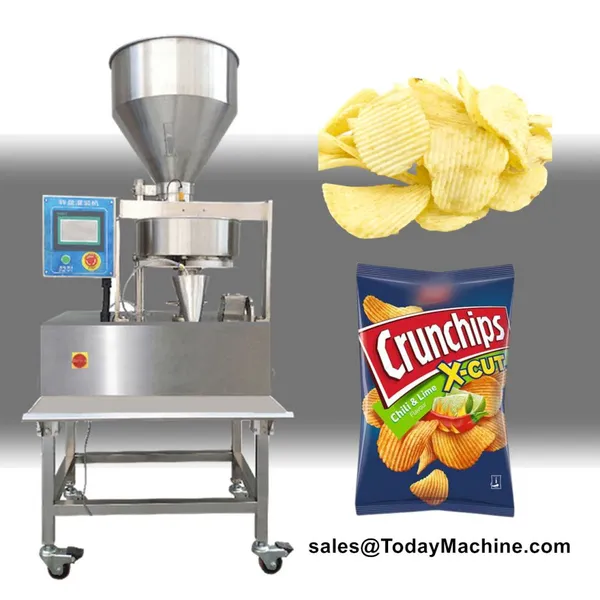

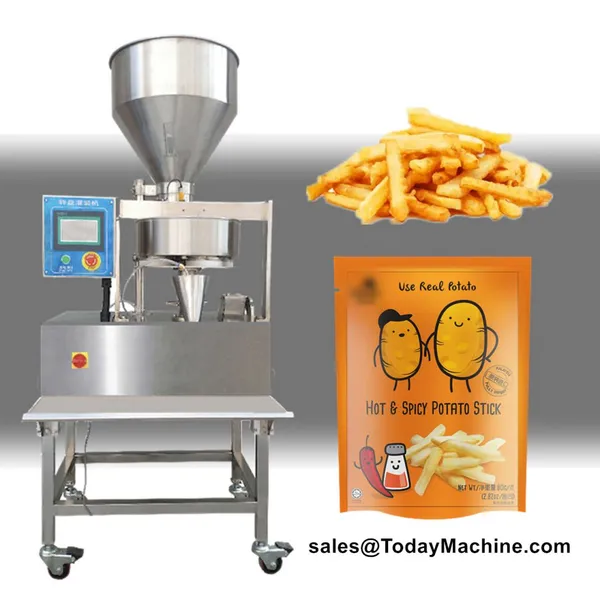

Volumetric Cup Filler
A semi-automatic volumetric cup filler is a sophisticated filling system that employs precision volumetric cups to dispense a precisely predetermined amount of product into any container. This machine streamlines the filling process, providing a rapid and error-free way to package goods for distribution and sale, making it an indispensable asset for any efficient production line.
volumetric cup doser
Volumetric cups: The apparatus utilizes cutting-edge volumetric cup technology to precisely gauge the product and distribute it into the receptacles. The cups are modifiable, allowing for various quantities of the product to be dispensed, offering versatility in the manufacturing process.
Easy-to-use controls: The equipment boasts intuitive controls that enable operators to effortlessly fine-tune the filling rate, modify cup dimensions, and closely monitor the manufacturing workflow.
Efficient-costing: The machine is designed to be efficient-costing for semi-automated filling operations, making it an ideal solution for businesses looking to optimize their resources.
WORKING PROCESS
The semi-automatic volumetric cup filler operates by utilizing a hopper or reservoir to store the product intended for filling. The product is then accurately metered into volumetric cups, which have the capacity to measure a pre-set volume of the product. The cups are elevated, and the product is dispensed into the container seamlessly. When the container reaches the desired level, the operator manually extracts it from the machine, ensuring the precise filling of each container.
TECHNICAL SPECIFICATION
Model |
Power (W) |
Range (ml≠g) |
Error |
Speed (pcs/min) |
Dimension (LxWxH)mm |
Weight (kg) |
CF-100 |
200 |
20-100ml |
1% |
50 |
700×500×1660 |
110 |
CF-200 |
300 |
100-200ml |
1% |
50 |
700×500×1660 |
120 |
CF-500 |
400 |
100-500ml |
1% |
40 |
700×500×1660 |
140 |
CF-1000 |
500 |
500-1000ml |
1% |
35 |
700×500×1660 |
150 |
CF-2000 |
500 |
1000-2000ml |
0.5% |
30 |
750x550x1880 |
180 |
CF-3000 |
550 |
2000-3000ml |
0.5% |
25 |
880x770x1800 |
200 |
CF-4000 |
770 |
2500-4000ml |
0.5% |
20 |
900x1000x1900 |
220 |
