Coffee Cup Welding Machine

Dongguan Shuangren Machinery Equipment Technology Co., Ltd. is an enterprise committed to the development and production of lithium battery equipment. We uphold the concept of innovation, pragmatism and efficiency, to provide customers with high-quality lithium battery equipment and services.

The company is a professional supplier of lithium battery equipment, with complete production technology and perfect after-sales service system. We are committed to providing our customers with high quality lithium battery equipment to help them achieve their production goals. Our equipment is stable and easy to maintain, and is well received by customers.

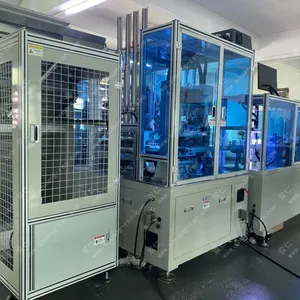

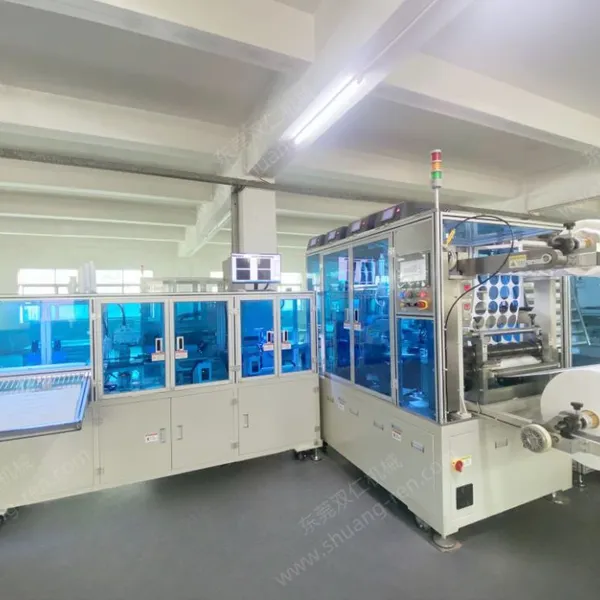

Product name: Automatic coffee cup welding machine

Product model: SR202

Equipment function description: It is mainly used for automatic welding of coffee cups and filter paper, including automatic cup loading mechanism, automatic rotating disk welding mechanism, CCD visual detection automatically remove defective products, and automatic cup collection mechanism.

Single production capacity ≥ 100,000 / day, the best rate ≥99.8%.

Main technical features of the equipment:

1. Automatic cup loading mechanism: the manual only needs to place the box material on the upper cup position, which is more convenient and efficient and greatly reduces the manual operation process compared with the previous operation of placing the manual cup lowering cylinder into the feeding cylinder.

2, automatic filter paper mechanism: the use of 4 channels die cutting, to achieve automatic paper roll and automatic position correction. Each station can detect whether there is filter paper, and can automatically replenish filter paper, effectively reduce downtime.

3, automatic welding mechanism: the use of 16 stations (4*4) rotating disk structure, loading, filter paper, welding, unloading synchronous. Ultrasonic welding adopts automatic pressure control welding mode to ensure constant welding pressure, so that the welding is firm and beautiful.

4, CCD visual inspection: equipped with 2 sets of high-definition industrial cameras, the detection system can be detected during the pulling operation, and the defective products can be removed to the defective products box.

5, automatic receiving mechanism: can automatically flip the cup body and overlap, configure counting sensors, can set the number of cups, the number of boxes, etc.

6, equipment operability: The configuration of imported brand PLC, all the motion mechanism adopts servo motor, the operation interface is intuitive and concise, the function parameter setting is simple, the equipment operation is safe and stable.

Moq: 1pcs Supply quantity: 20pcs Packing Description: wooden case packing
