Product Introduction

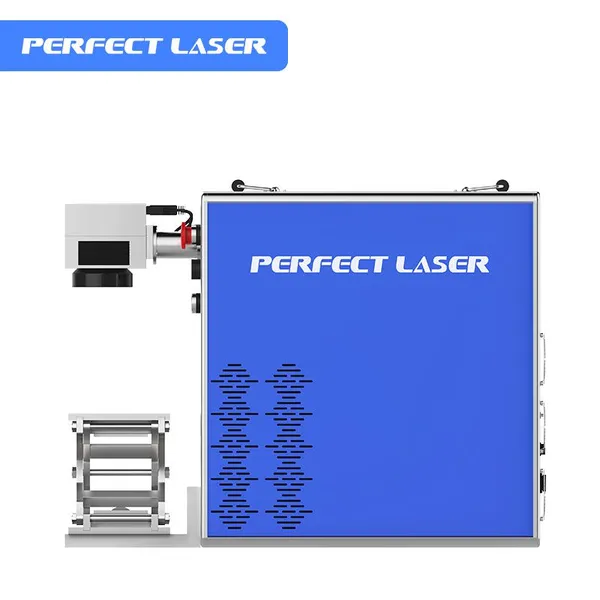

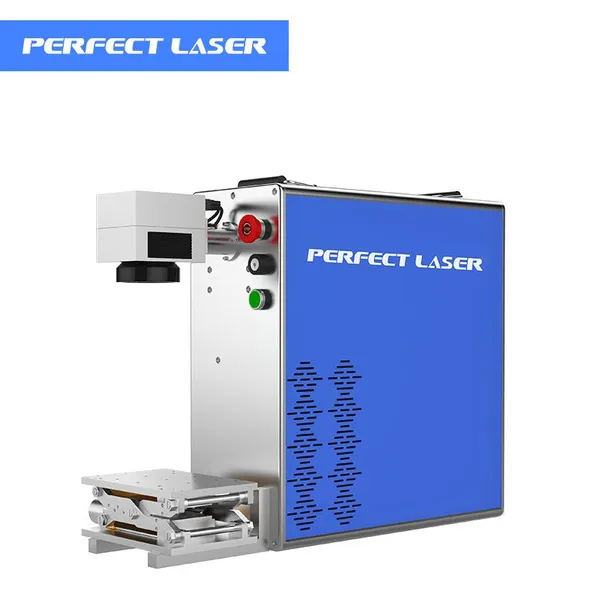

The color laser marking machine independently developed by Perfect Laser combined with the technology of a general-purpose fiber laser marking machine has created a unique bright color that can be used on a variety of materials such as mirror stainless steel. It can also be called stainless steel marking machine. The color laser marking machine adopts air cooling instead of water cooling, with a protection circuit, which completely solves the defect that the YAG or semiconductor laser marking machine may damage the device. A strong protection system ensures the long-term operation of the color laser marking machine.
Product Features

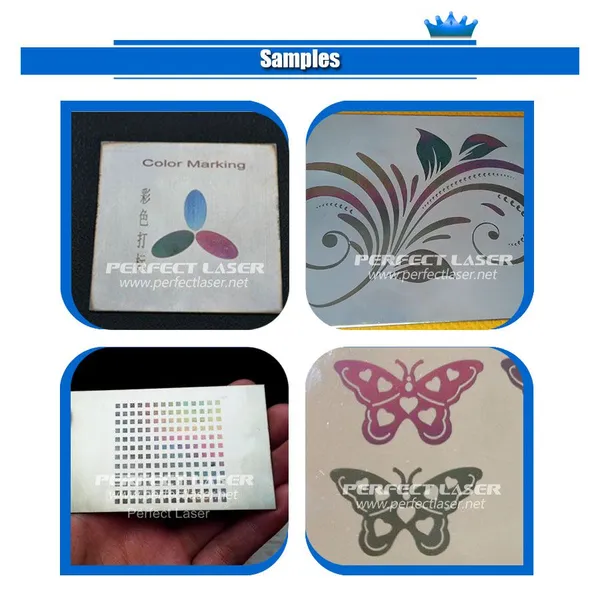

1. Best Marking Effect: The laser beam of color laser marking machine is fine and thin. Fiber laser color marking can provide the better marking effect among all the laser machines. Especially good at smallest character marking on mental. When do fiber laser color marking, only stainless steel material is acceptable.
2.Deep Marking:Perfect Laser’s color laser marking machine can engraving stainless steel and make deep marking up to 1.0mm on stainless steel and aluminum While YAG and Diode marking only could mark 0.2mm-0.3mm.
3. Higher Accuracy: The fiber laser color marking machine can reach unto 0.001mm precision, while diode only 0.01mm.
4. 10 Years Long lifetime: Adopt the technology from Germany IPG, the fiber laser sources lifespan can reach 100,000 hours, enable this colorful stainless steel marking machine to be used for 8-10 yeas.
5. No consumables: The color laser marking machine can be used for 8-10 years and almost no need of any consumables.
6. No need to adjust the laser path.
7. Free of Maintenance.
8. Use Integrated Air Cooling.
9. Small and compact: the volume of Perfect Laser’s colorful laser marking machine is small, only 0.15 M3.
Application
Applicable materials
The fiber laser color marking machine is widely applied in all metals (including rare metals), engineering plastics, electroplate coating materials, coating materials, spraying materials, plastic rubber, epoxy resin, ceramics and so on.
Applicable industry
The fiber laser color marking machine is widely applied in phone case, light penetration key, electronic parts and components, integrated circuit (IC), electrician electric appliance, communication products, sanitary wares, tool accessories, glasses and watches, jewelry, auto parts, buckles, kitchenware and stainless steel products industries.
Technical Data
Model No |
PEDB-400A |
PEDB-400B |
PEDB-400C |
PEDB-400D |
Type |
Portable |
Desktop |
Colorful |
Standby |
Computer |
Not includes PC |
Includes PC |
||
Laser Source | ||||
IPG Series |
Pulsed, High Energy Ytterbium Fiber Lasers |
|||
Mode of operation |
Pulsed |
|||
Polarization |
random |
|||
Nominal average output power |
20W - 50W For PEDB-400A /400B /400C 20W - 100W For PEDB-400D |
|||
Central emission wavelength |
1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100% |
|||
|
Emission Bandwidth (FWHM) |
||||
Long-term average power instability |
||||
Pulse width, (FWHM) |
100 ns |
|||
Laser switching ON time |
180 μsec |
|||
Laser switching OFF time |
180 μsec |
|||
Pulse Repetition Rate* kHz |
20-80 kHz |
|||
Energy per pulse (PRR = 20 kHz) |
0.95 mJ |
|||
Typical beam quality, M2 |
||||
Output fiber delivery length |
3m |
|||
Operating voltage |
220V |
|||
Max. Power consumption |
600W |
|||
Net Dimensions |
70*20*50cm |
80*38*72cm |
70*20*50cm |
143*62*101cm |
Net Weight |
44 kgs |
53 kgs |
44 kgs |
130 kgs |
Gross Weight |
60 kgs |
70 kgs |
60 kgs |
200 kgs |
Laser system | ||||
Scanning Speed |
0-10000mm/s |
|||
Marking Speed |
0-7000mm/s |
|||
Marking size |
110mm×110mm (F-theta 160) |
|||
Spot size |
≤ 40 micron (F-theta 160) |
|||
Cooling unit |
Air cooled |
|||
Pilot laser |
650nm diode laser, visible red light for marking guide |
|||
Continuous working time |
≥16h |
|||
Humidity |
45～85% (no condensation) |
|||
Operating temperature |
0~40℃ |
|||
Control units |
Laser Mark (English Version) |
|||
