Home > Packaging & Printing > Packing Machinery > Wrapping Machine > Pallet Wrapper Forklift M Turntable Wrapper
US$ 3960 - 5000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
EARFLAP
Place of Origin:
Italy
Model Number:
EF-CRT-M16522-PC/ EF-CRT-M16527L-PC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
-
Pallet Wrapper Low Turntable WrapperUS$ 4680 - 5800MOQ: 1 Set -
Pallet Wrapper Standard Turntable WrapperUS$ 3850 - 4800MOQ: 1 Set
-
High Speed Wrap-around PackerUS$ 350000 - 450000MOQ: 1 Set
-
Shrink Wrap PackerUS$ 250000 - 350000MOQ: 1 Set
-
Chinese Supplier Automatic Stretch Hood and Shrink Wrapping MachineUS$ 1 - 48000MOQ: 1 Set
Brand Name
EARFLAP
Place of Origin
Italy
Model Number
EF-CRT-M16522-PC/ EF-CRT-M16527L-PC
After-sales Service Provided
Overseas service center available
Weight
600-700KG
Dimension(L*W*H)
2250*1650*2310mm/2700*1650*2730mm
Voltage
1.25 KW
Power
1P 220V-230V/110V 50/60HZ
Application
Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Condition
New
Automatic Grade
Semi-Automatic
Driven Type
Electric
Packaging Material
Other, film
Packaging Type
Film
With European technology& Chinese supply chain efficiency and manufacturing cost
We make our wrappers with a philosophy.
Focus on the machine itself. Stable quality is always our No.1 competence.
Focus on the user – ease of use and hassle-free operation is our commitment to you.
Focus on ROI – we ensure our machines are tools, not burdens.
M Turntable Wrapper -Custom-built for forklift and manual pallet jacks.
Four types of carriage with pre-stretch ratio from 100% to 400%.
Six wrapping modes and six optional accessories.

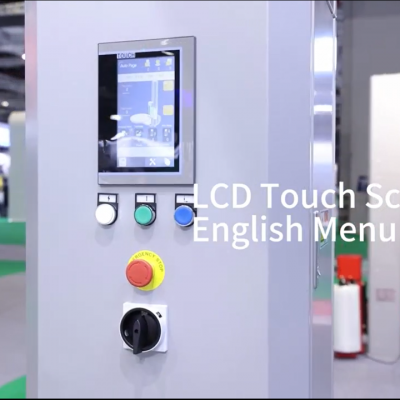

One-touch operation with an LCD touchscreen.
Spanish red turntable paired with elegant silver columns, a simple yet luxurious design.
| M Turntable Wrapper Model EF-CRT-M16522-PC | M Turntable Wrapper (Large Column) Model EF-CRT-M16527L-PC | |
| Machine Features | ||
| Size （L×W×H) | 2250×1650×2310mm | 2700×1650×2730mm |
| Column Height | 2200mm | 2700mm |
| Option: 2700mm/3200mm | Option: 2700mm/3200mm | |

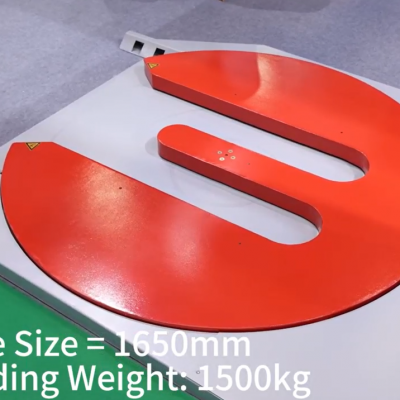

| Turntable Diameter | 1650mm | |
| Weight | 600-700 kg | |
| Operator Panel | LCD Touch Screen | |
| Electricity Features | ||
| Power Supply | 1P 220V-230V/110V 50/60HZ | |
| Installed Power | 1.25 KW | |
| Wrapping Features | ||
| Wrapping Speed | 90s / Pcs | 100s / Pcs |
| Turntable Speed | 0-10 rpm | |
| Carriage Lifting Speed | 0-5.4 m/min | |
| Load Height | 2000mm or Pillar Height minus 400mm | |
| Load Weight | 1500kg (max.) | |
| Wrapping Model | 6 Wrapping Models | |
| Film Pre-stretch | Damping Carriage : 120%/ 150% | |
| Pre-stretch Carriage : 100%-150%-200%-250% / 100%-400% Adjustable | ||
| Film Tensing | Adjustable | |
| Height Control | Photoelectric automatic | |
| Film Carriage | ||
| Carriage Types | Damping Carriage | |
| Pre-stretch Carriage | ||
| Filming Method | By Manual | |
| Roll Features | ||
| Roll Size (H×Ø) | 500mm×250mm | 500 mm / 750mm×250mm |
| Roll Diameter | 50/76 mm | |
| Roll Weight | 20 kg | |

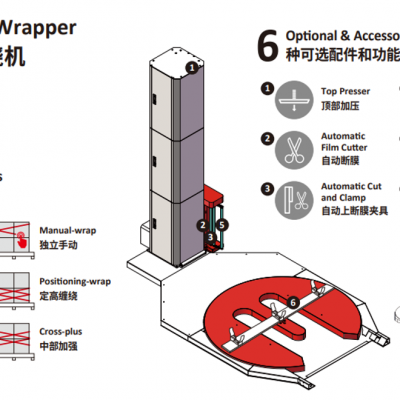

| 6 Wrapping Models | ||
| Cross-wrap Single-wrap Cross-plus Manual-wrap Positioning-wrap Cross-plus | ||
| 8 Optional & Accessories | ||
| Loading Ramp Top Presser Automatic Film Cutter Roping System Net/Bubble Flim Weighing system Doors & Windows Wrapping System(Use with Top Presser, max. loading weight is 1000kg) | ||
