Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > Hot Sale 5 Ton Multi-purpose Skid Steer Loader Use Safe Steering Skid Steer Loader With EPA Certified Engine

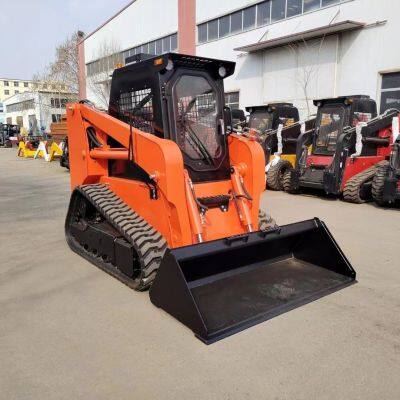

Hot Sale 5 Ton Multi-purpose Skid Steer Loader Use Safe Steering Skid Steer Loader With EPA Certified Engine
US$ 10000 - 80000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Focus
Place of Origin:
China
Model Number:
FS432
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Related Products
-
Best-selling Dual-purpose Derette V1000 Mini Skid Steer Loader With High-flow HydraulicsUS$ 10000 - 80000MOQ: 1 Unit -
Skid Steer Loader Diesel Hydraulic 0.7ton 1000kg 1050kg Skid Steer Loader With Enclosed CabUS$ 10000 - 80000MOQ: 1 Unit
-
Agricultural Mini Skid Steer Loader Compact Diesel Wheel Loader Versatile Portable Mini Skid Steer LoaderUS$ 10000 - 80000MOQ: 1 Unit
-
EPA Engine Skid Steer Wheel Track Mini Track Skid Steer Loader With AttachmentsUS$ 10000 - 80000MOQ: 1 Unit
-
Multi-purpose Attachment Hydraulic Front Loader Small Mini Skid Steer Loader With Kubota EPA Engine for Construction and FarmUS$ 10000 - 80000MOQ: 1 Unit
Brand Name
Focus
Place of Origin
China
Model Number
FS432
Type
Skid Steer Loader
Certification
CE / EPA certificate
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Condition
New
Dimension(Long * Breadth * High)
2580*900*1900
Moving Type
Crawler Loader
Rated Load
1000kg
Product Description
Skid loaders are also called skid-steer loaders, multi-functional engineering vehicles, and multi-functional engineering machines. It is a special wheeled chassis equipment that uses the linear speed difference of the wheels on both sides to achieve vehicle steering. It is mainly used in situations where the working site is small, the ground is uneven, and the work content changes frequently.
It is suitable for infrastructure construction, industrial applications, dock loading and unloading, urban streets, residences, barns, livestock sheds, airport runways, etc. It can also be used as auxiliary equipment for large-scale engineering construction machinery. There are two types of skid steer loaders: wheeled and tracked.
Product List&Display
Skid loader features
≤≤Small devices with compact dimensions and less than one meter in width
≤≤Small size, easy to navigate, easy to drive up and down the stairs in the elevator
≤≤Rear-mounted heat dissipation, large heat dissipation area suitable for long-term indoor construction
≤≤Full wave pressure pilot control, flexible and convenient operation
Product parameters
It is suitable for infrastructure construction, industrial applications, dock loading and unloading, urban streets, residences, barns, livestock sheds, airport runways, etc. It can also be used as auxiliary equipment for large-scale engineering construction machinery. There are two types of skid steer loaders: wheeled and tracked.
Product List&Display
≤≤Small devices with compact dimensions and less than one meter in width
≤≤Small size, easy to navigate, easy to drive up and down the stairs in the elevator
≤≤Rear-mounted heat dissipation, large heat dissipation area suitable for long-term indoor construction
≤≤Full wave pressure pilot control, flexible and convenient operation
Customer case
| Model | JC45 | JC60 | JC65G | JC75(65B) | JC100 | JC50D |
| Operating load (kg) | 700 | 850 | 950 | 1050 | 1200 | 850 |
| Max Speed(km/h) | 12 | 12 | 12 | 12 | 12/18 | 6 |
| Rated flux (L/min) | 75 | 75 | 75 | 80 | 80 | 75 |
| High Flow Flux (L/min) | / | / | 120(optional) | 120(optional) | 140 | |
| Tire(track) model | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 28*9-15 |
| Rated power (Kw) | 37 | 45 | 55 | 55 | 74 | 45 |
| Fuel tank capacity (L) | 65 | 80 | 80 | 75 | 90 | 80 |
| self weight bucket (kg) | 3000 | 3200 | 3200 | 3500 | 3550 | 2800 |
| Bucket capacity (m3) | 0.4 | 0.5 | 0.5 | 0.5 | 0.55 | 0.4 |
| Overall operating height (mm) | 3980 | 4000 | 4000 | 4070 | 4070 | 3770 |
| Height to bucket hinge pin (mm) | 3080 | 3100 | 3100 | 3150 | 3150 | 2810 |
| height to top of cab (mm) | 2140 | 2160 | 2160 | 2160 | 2160 | 1600 |
| Height to bottom of level bucket(mm) | 2913 | 2933 | 2933 | 2983 | 2983 | 2643 |
| Overall length ithout bucket(mm) | 2640 | 2750 | 2750 | 2880 | 2880 | 2800 |
| overall length with bucket(mm) | 3420 | 3490 | 3490 | 3580 | 3580 | 3490 |
| Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 | 40 | 40 |
| Dumping height(mm) | 2380 | 2400 | 2400 | 2450 | 2450 | 2080 |
| Dumping reach(mm) | 710 | 750 | 750 | 700 | 700 | 700 |
| Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 | 30 | 30 |
| Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 | 104 | 104 |
| Wheelbase(mm) | 991 | 991 | 1085 | 1115 | 1185 | 991 |
| Ground clearance(mm) | 185 | 205 | 205 | 205 | 205 | 205 |
| Angleof departure(° ) | 20 | 20 | 20 | 20 | 20 | 20 |
| Front turning radins without bucket(mm) | 1168 | 1198 | 1204 | 1250 | 1278 | 1228 |
| Front tuning radius(mm) | 1958 | 1958 | 2030 | 2112 | 2144 | 2010 |
| Rear tuning radius(mm) | 1630 | 1728 | 1706 | 1774 | 1857 | 1746 |
| Rear axle to bumper (mm) | 1108 | 1208 | 1208 | 1082 | 1082 | 1208 |
| Tread width,enterline to centerline (mm) | 1450 | 1500 | 1500 | 1500 | 1500 | 1450 |
| Bucket width (mm) | 1720 | 1880 | 1880 | 1880 | 1880 | 1720 |
| Bucket width (mm) | 1740 | 1880 | 1880 | 1880 | 1880 | 174 |
