>>Applicable Fields of mdf laser cutting machine:
mdf laser cutting machine has been widely used in the fields of handicrafts, wood products, advertising and decorating, rubber plate, building models, products, acrylic display panel lenses, wood carving, wood/MDF percutaneous flowers, advertising products, crystal characters, packing boxes, models, toys, furniture.

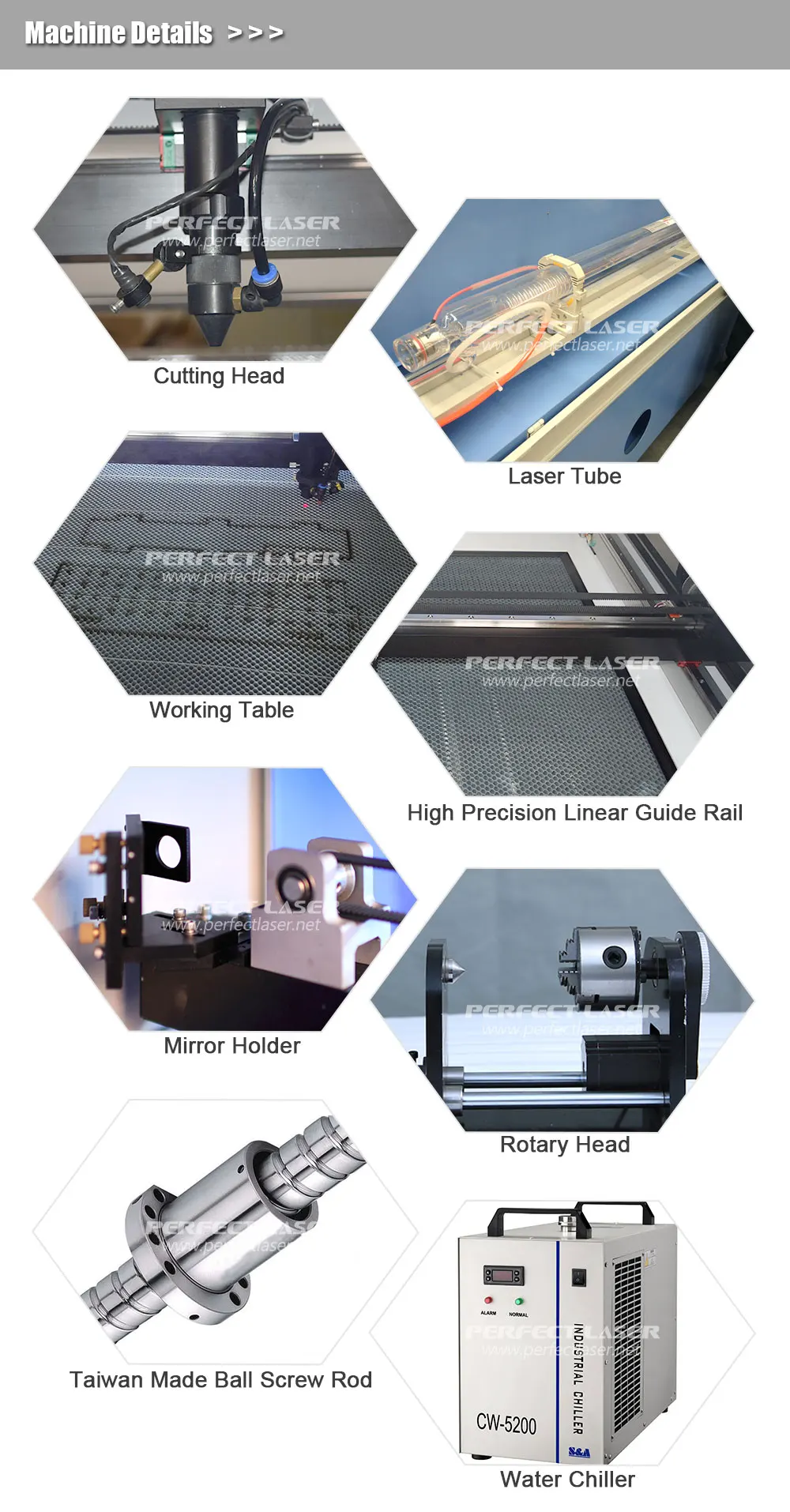

>>Product Features of mdf laser cutting machine:
1. Adopts automatic stainless steel crawler platform & large scope, can meet the demand of large-format cutting, carving for clothing and other fields.
2. With advantages of small speed, higher precision can save time and greatly improve production efficiency combing with
automatic feeding device.
3. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to
U disk, USB communication.
4. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the
engraving quality and prolong machine lifetime.
5. Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
6. Water Cooling System with Alarm Protection, adopt CW3000 Water Chiller with temperature display, which can avoid over burning, to
protect the water circulation from electricity-off.
7. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, Reci Laser Tube and
RF metal tube for your choose, makes high efficiency and steady.
8. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision,
engrave 1×1mm little English character perfect.
9. Red Light Pointer realizes the exact position without laser.
10. Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.
11. Optional Imported Ball Screw Rod, with high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to
reflect with high accuracy.

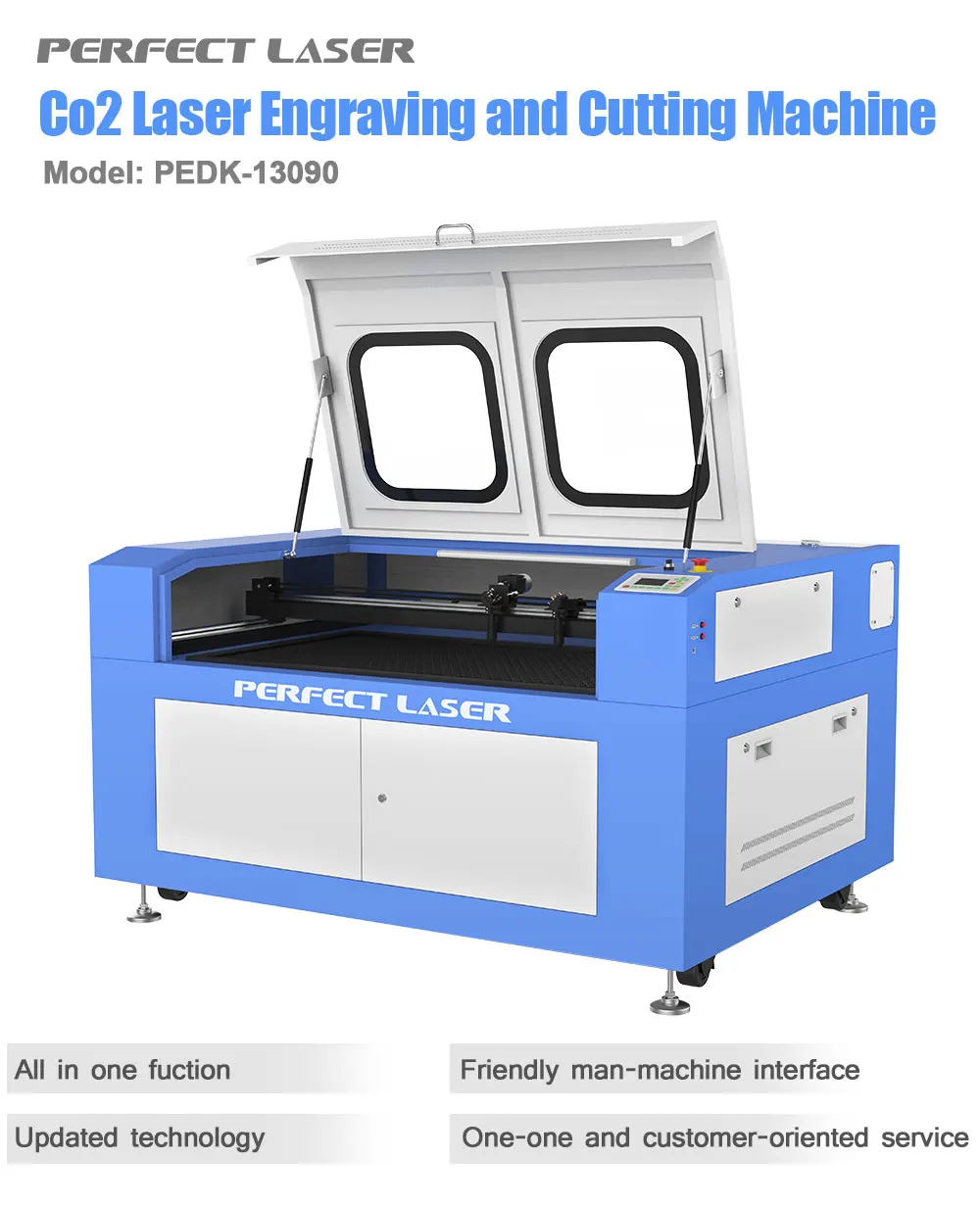

>>Technical Data of mdf laser cutting machine:
Working Area | 1300x900mm |
Laser Power | 50W/60w/80w/100w/120w |
Laser Type | Hermetic and Detached Co2 Laser Tube |
Engraving Speed | 0-36000mm/min |
Cutting Speed | 0-12000mm/min |
Repeat Positioning Accuracy | +/-0.0125mm |
Movement System | CNC Professional Control System |
Cooling Mode | Water Cooling and Protection System |
Support Graphics Formats | BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF |
Voltage | 220V (+/-10%), 50Hz |
Machine Power | 900W |
Auxiliary Devices | Exhaust Fan and Exhaust Pipe |
Cutting Platform | Professional Thickening Profiled Bar Work Table |
Manual Lifting Range of Work Table | 0-300mm |
Optional Items | Offline Control System (LCD Screen + USB Port), Rotary System. |
Power Control Approach | Laser Energy Combining Movement Control System |
Control Software | Original Perfect Laser Engraving & Cutting Software |
Machine Size | 1000*750*1150mm |
We, Perfect Laser, As a 21 years history industrial equipment manufacture in laser field, 10 year Golden Supplier in , with CE/ISO, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
FAQ of mdf laser cutting machine:
Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
