Streamlining Solar Panel Production with Solar Strings Layup Machine Automation
Negotiable
/ Bag
1 Bag(Min.Order)
- 10 Bag / Bags per Month
- T/T L/C
You May Like
-
Solar Strings Layup Machine Manufacturing Excellence- Delivering High-Quality Layup Solutions for Solar Panels
-
Solar Strings Layup Machine Technology Advancements- Innovations in Photovoltaic Assembly
-
High Efficiency Solar Strings Layup Machine for Solar Module Production
-
Solar Strings Layup Machine Manufacturing Solutions- Tailored Approaches for Solar Panel Production
-
The Importance of Solar Strings Layup Machine in Modern Production
-
Solar Strings Layup Machine for Automation in Solar Component Manufacturing
Product Details
| Brand Name | ChinTiyan New Energy | Model Number | 100mw pv solar production line |
Product Description
Through technological breakthroughs, improved production efficiency and cost reduction, we are committed to creating higher value intelligent operation, precise control and efficient output for our customers. The company team has been deeply engaged in the photovoltaic industry for more than ten years, and has a complete production base and sales and service network.
Product Introduction
Suitable for pv production line in solar panel factories
1. Conveying method: belt + servo return to positive
2. Automatic string swinging in different directions of the glass (positive and negative)
3. Switching time of different patterns: ≤10min
4. Switching time for different half-pieces: one-key switching
5. Three modes: automatic, manual, and straight-through.

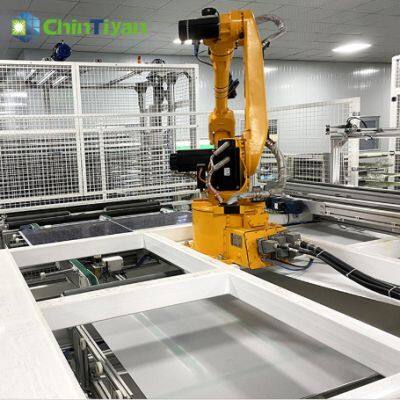

6. positioning system adopts non-contact CCD positioning, the robot is Exton.

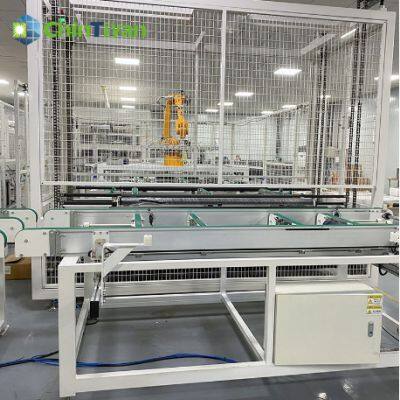

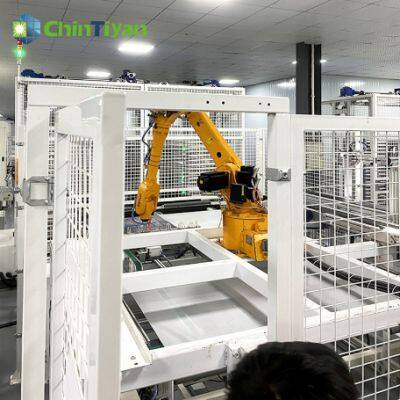

7. The machine is installed with safety fence and access control, which can prevent people from entering the machine during operation.
Key Attributes
| Model | Robot Layout Machine |
| Production Details | |
| Beat | Half a slice per string≤5.5s |
| Module size | (1650-2500)mm*(990-1400)mm |
| Layout accuracy | ≤±0.5mm |
| Cell string position accuracy | ±0.5mm |
| Air Comsumption | 400 L/min |
| Overall Size | 4220mm*2920mm*2900mm |
| Pear Power | ≤10kW |
| cell string space | 1-10mm |
| No. | Equipment | Qty |
| 1 | 2000 Scribing cutting machine | 1 |
| 2 | Auto glass loading machine | 2 |
| 3 | EVA cutting and laying machine | 1 |
| 4 | 4000 stringer welding machine | 1 |
| 5 | Robot lay up machine | 1 |
| 6 | Aoto bussing welding | 1 |
| 7 | Automatic taping | 1 |
| 8 | EVA cutting and laying machine | 1 |
| 9 | EL/VI all in one machine | 1 |
| 10 | Double glass repair transfer machine | 2 |
| 11 | Double glass edge banding machine | 1 |
| 12 | 2672 single layer double chamber laminator | 1 |
| 13 | Manual edge cutting station | 2 |
| 14 | Pneumatic online framing machine | 1 |
| 15 | Offline J-Box gluing machine | 1 |
| 16 | Manual Junction box installation | 1 |
| 17 | Manual Junction welding | 2 |
| 18 | Manual Junction gluing | 1 |
| 19 | loading material machine on curing line | 1 |
| 20 | curing line | 1 |
| 21 | laying off material machine on curing line | 1 |
| 22 | Back cleaning | 2 |
| 23 | Front cleaning | 2 |
| 24 | IV tester machine | 1 |
| 25 | Hipot | 1 |
| 26 | EL tester machine | 1 |
| 27 | Automatic grading machine | 1 |
