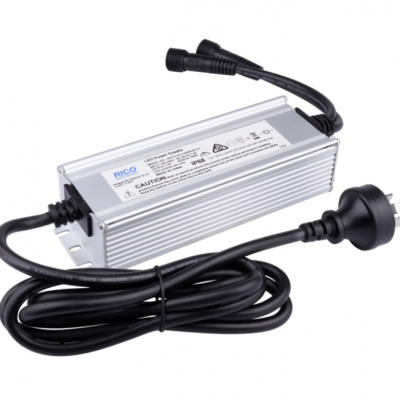

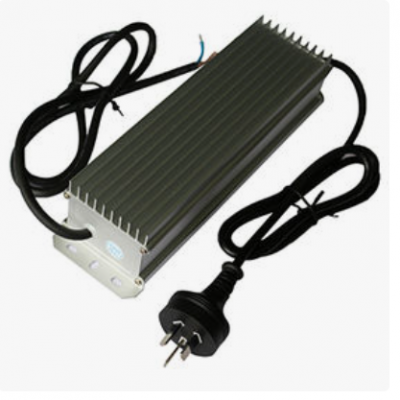

IP67 waterproof 12V 10A Waterproof LED Driver with Ce RoHS
Electrical description:
1.Input voltages: 100-240Vac
2.Input frequency range: 47-63Hz
3.Efficiency: >80%
4.Output power: 120W
5.Output voltages: 3-24dc
6.Output current: 500-5000mA
7.Protections: OCP, SCP, OVP and OTP
8.Operating temperatures: -30-60℃
9.Storage temperatures: -40-70℃
10.Humidity range: 35 to 80% RH
11.Constant voltage precision: ±5%
12.Safety compliance: UL1310, UL 8750, EN61347-1EN61347-2-13EN61558, EN60950EN60065, EN62368
13.FCC: EN55015, EN61000-3-2, EN61547, GB17743 and GB17625.1
14.MTBF: ≥60, 000 hours at 25°C
15.Waterproof IP44 Germany plug and IP68 main enclosure.
16.Input with Swiss waterproof plug+H05RN-F Rubber cable
17.Output cable: UL SPT-1W 20AWG, 18AWGH05RN-F 2X0.75mm, 2x1.0MM
18.Female waterproof socket and male DC waterproof plug connect, easy to use and convenient to connect DC load product.
Features:
1.Universal AC input/full range
2.Output isolated constant voltage power supply, meet class II standard.
3.Protections: short-circuit/overload/over-voltage/over temperature
4.Enclosure sealed with silica gel and ultrasonic to meet IP68 for outdoor use.
5.High reliability and real long lifespan
6.Low-noise, energy-saving and environment-friendly
7.Fire-proof plastic case and cooling by free air convection
8.Compact size and low cost
9.Low ripple design
10.OEM/ODM orders are accepted
11.Energy efficiency: CEC, DOE, Nrcan, Erp VI.
12.Two years quality guarantee.
Mechanical appearance:
Fire-proof plastic case housing
Waterproof IP68
Cord connected type and easy installation dc Male and female plug.
Greens environment-friendly protection, meet RoHS, REACH, 12P, 16P, 18P, nP according to customer's requirements.
Application: outdoor laser lights, LED outdoor lights, CCTV, home appliance
| Certificate Standard | UL | ||||
|---|---|---|---|---|---|
| Certificate Image | Click on the picture to see a larger one
|
||||
| Certificate Number | E467791-20160815 | ||||
| Validity | From 2016/08/17 To 2025/08/16 | ||||
| Issued By | UL LLC | ||||
