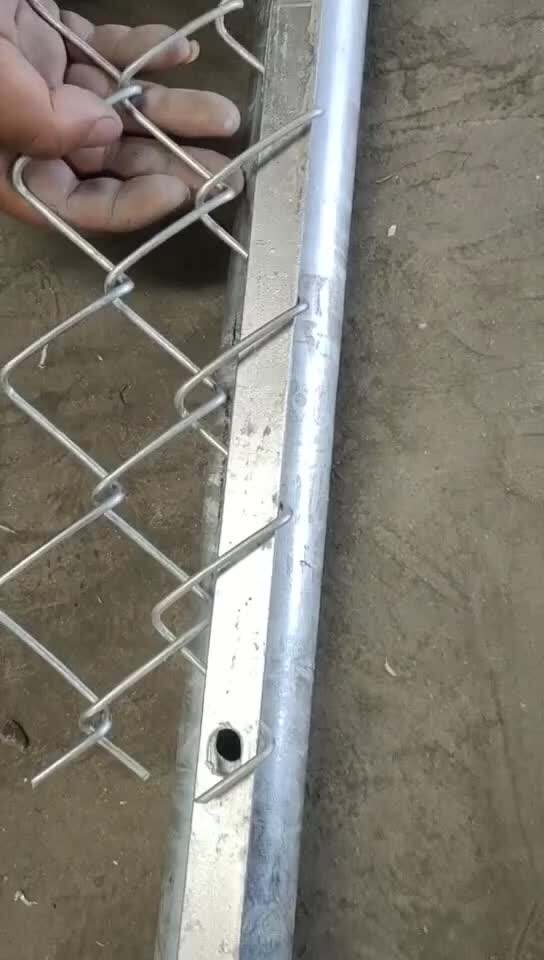

chain link commercial fencing is made from interwoven wires, and has a wide variety of uses from garden to stock fencing to light commercial fencing. It is available in a range of heights from 900mm to 3000mm. It is available with a galvanised coating (silver in colour) or a PVC coloured coating (green or black). All our PVC chain link has a galvanised core.
| Height (mm) | Length (mm) | Wire Diameter (mm) | Mesh Opening (mm) |
| 1200 | 15000 | 3 or 4 | 50 (W) x 50 (H) |
| 1500 | 15000 | ||
| 1800 | 15000 | ||
| 2100 | 15000 | ||
| 2400 | 15000 | ||
| 3000 | 15000 |
Type Of chain link commercial fencing
Galvanized chain link fence
Galvanized chain link fence is the traditional option for securing your properties both in residential and commercial applications. We use hot-dipped zinc coating which conforms to ASTM A392 for long service life warranty. For added security of commercial properties, barbed wire or razor ribbon is available to install onto the fence top.
PVC chain link fence
PVC (Vinyl-coated) chain link fence is an ideal choice for homes, yards and light commercial projects that require security, durability and affordability. Environmentally friendly colors (black, green and brown) blends naturally with the surroundings and allows the beauty of the landscaping to show through. PVC slats are available in various colour if privacy is needed.
Stainless steel chain link fence
Stainless steel chain link fence has high alkali resistance and can sustain high temperature, even in harsh weather conditions, it can keep long-term bright luster which turns out to be a dominant advantage over other types of chain link fences. Recommended for high grade enclosures or barriers such as in airports, highways or other applications where high- level protection is needed.
Material: Low carbon steel wire, aluminum magnesium alloy wire.
Surface treatment: Galvanized, plastic coated cold galvanizing, black silk.
Methods:
Metal net bar factory Selects the high quality welding wire and become, PVC or PE, PP powder through vulcanization processing, coating the surface has the strong adhesion, good anticorrosion, colour and lustre is light, etc.
Manufacturing process:
Steel wire after welding plastic coated, also can separate electroplating, hot DIP, and plastic coated.
Specifications:
1. Net width: 0.5 m - 2.5 m; The Dutch network installation drawing
2. After the touched before (size): 1.0 3.0 (mm).
3. Size: 60 * 60 50, 50 * 50 * 100100 * 100100 (mm).
4. Length: 30 m
| Opening (mm) | 1" | 1.5" | 2" | 2-1/4" | 2-3/8" | 2-1/2" | 2-5/8" | 3" | 4" |
| 25 | 40 | 50 | 57 | 60 | 64 | 67 | 75 | 100 | |
| Wire diameter | 18#-13# | 16#-18# | 18#-7# | ||||||
| 1.2-2.4mm | 1.6-4.2mm | 2.0-5.0mm | |||||||
| Length/roll | 0.50m-5.0m (can be longer) | ||||||||
| Width | 0.5m-5.0m | ||||||||
| Materials and specifications can be made as request. | |||||||||
| Chain Link Fence | ||||||||
| Material | galvanized wire, PVC coated wire | |||||||
| Opening | 1" | 1.5" | 2" | 2.25" | 2.4" | 2.5" | 3" | 4" |
| 25mm | 40mm | 50mm | 55mm | 60mm | 65mm | 76mm | 100mm | |
| Wire diameter | 14#-6# ( customized is acceptable) | |||||||
| 2.00mm-5.00mm. ( customized is acceptable) | ||||||||
| Fence height | 1.2m, 1.5m, 1.8m, 2.0m, 2.4m, 3m etc. we can do it as your request | |||||||
| Coated color | Black, Dark green, Blue, Sliver etc. if you have RAL number, you can tell us the color number | |||||||
| Round fence pipe | OD48mm, thickness 2mm; OD 60mm, thickness 2mm; OD 76mm, thickness 2mm /3mm | |||||||
| Top rail pipe | OD32mm, thickness 1.2mm, 1.5mm etc; OD 48mm, thickness 1.2mm, 1.5mm etc. we can do it as your request | |||||||
Produce Details Application
Packing And Shipping
