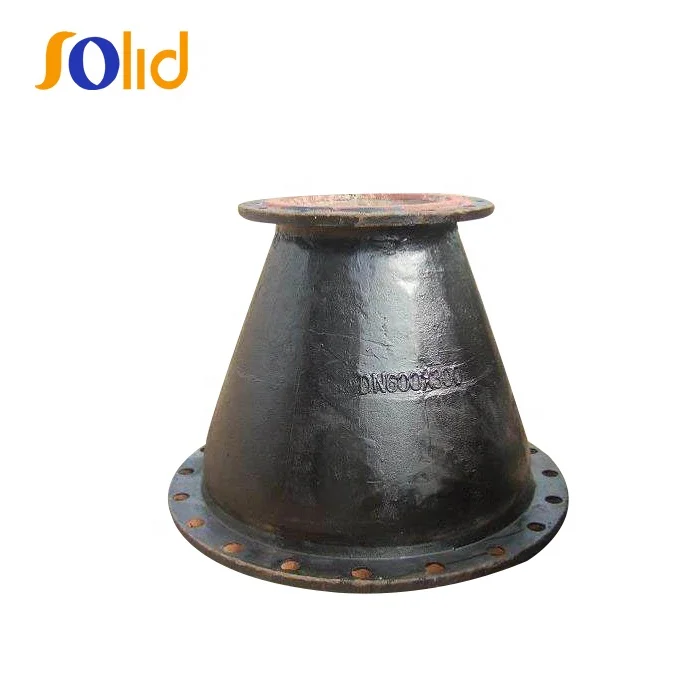

ISO2531, En545, En598 Ductile Cast Iron Double Flanged Concentric Reducer Taper
US$ 1100.00 - 1400.00
MOQ: 50 Tons
Key Specifications
Get Latest Price
Brand Name:
SOLID
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN,QINGDAO,SHANGHAI
Delivery Detail:
15 days
Related Products
-
HDPE Plastic Pipe Fitting, Butt Fusion Pipe Fitting Flange Adaptor Stud EndUS$ 1.20 - 3.00MOQ: 50 Pieces -
Buttfusion Pipe Fittings HDPE Injection Female Male Welding Adapter ElbowUS$ 0.50 - 3.50MOQ: 50 Pieces
-
PE100 SDR11 Water Supply HDPE Fitting Electro Fusion Pipe Fitting HDPE Pipe FittingUS$ 0.50 - 3.00MOQ: 50 Pieces
-
High Pressure PE Pipe Butt Fusion Fitting Plastic HDPE Pipe FittingUS$ 0.10 - 1.50MOQ: 50 Pieces
-
High Quality 20-630mm Plastic HDPE Molded Electrofusion FittingsUS$ 0.12 - 0.53MOQ: 50 Pieces
Brand Name
SOLID
Place of Origin
China
Product Description
1. Briefs
* mainly used for transferring the drinkable water, waste water and for irrigation
* working pressure PN16
2. Surface treament :
Metallic zinc spray with Bituminous Coating (Outside)
Cement mortar lining (Inside).
Epoxy power coating available upon your request.
3. The list of sizes
| S/N | DNxdn | T | t | L |
| mm | mm | mm | mm | |
| 1 | 100x80 | 7.2 | 7.0 | 200 |
| 2 | 150x80 | 7.8 | 7.0 | 400 |
| 3 | 150x100 | 7.8 | 7.2 | 300 |
| 4 | 200x100 | 8.4 | 7.2 | 600 |
| 5 | 200x150 | 8.4 | 7.8 | 300 |
| 6 | 250x150 | 9.0 | 7.8 | 600 |
| 7 | 250x200 | 9.0 | 8.4 | 300 |
| 8 | 300x150 | 9.6 | 7.8 | 650 |
| 9 | 300x200 | 9.6 | 8.4 | 600 |
| 10 | 300x250 | 9.6 | 9.0 | 300 |
| 11 | 350x200 | 10.2 | 8.4 | 650 |
| 12 | 350x250 | 10.2 | 9.0 | 600 |
| 13 | 350x300 | 10.2 | 9.6 | 300 |
| 14 | 400x200 | 10.8 | 8.4 | 700 |
| 15 | 400x250 | 10.8 | 9.0 | 650 |
| 16 | 400x300 | 10.8 | 9.6 | 600 |
| 17 | 400x350 | 10.8 | 10.2 | 300 |
| 18 | 450x250 | 11.4 | 9.0 | 700 |
| 19 | 450x300 | 11.4 | 9.6 | 650 |
| 20 | 450x350 | 11.4 | 10.2 | 600 |
| 21 | 450x400 | 11.4 | 10.8 | 300 |
| 22 | 500x300 | 12.0 | 9.6 | 700 |
| 23 | 500x350 | 12.0 | 10.2 | 650 |
| 24 | 500x400 | 12.0 | 10.8 | 600 |
| 25 | 500x450 | 12.0 | 11.4 | 300 |
| 26 | 600x350 | 13.2 | 10.2 | 750 |
| 27 | 600x400 | 13.2 | 10.8 | 700 |
| 28 | 600x450 | 13.2 | 11.4 | 650 |
| 29 | 600x500 | 13.2 | 12.0 | 600 |
| 30 | 700x400 | 14.4 | 10.8 | 800 |
| 31 | 700x450 | 14.4 | 11.4 | 750 |
| 32 | 700x500 | 14.4 | 12.0 | 700 |
| 33 | 700x600 | 14.4 | 13.2 | 600 |
| 34 | 800x450 | 15.6 | 11.4 | 900 |
| 35 | 800x500 | 15.6 | 12.0 | 800 |
| 36 | 800x600 | 15.6 | 13.2 | 700 |
| 37 | 800x700 | 15.6 | 14.4 | 600 |
| 38 | 900x500 | 16.8 | 12.0 | 1000 |
| 39 | 900x600 | 16.8 | 13.2 | 800 |
| 40 | 900x700 | 16.8 | 14.4 | 700 |
| 41 | 900x800 | 16.8 | 15.6 | 600 |
| 42 | 1000x600 | 18.0 | 13.2 | 1000 |
| 43 | 1000x700 | 18.0 | 14.4 | 800 |
| 44 | 1000x800 | 18.0 | 15.6 | 700 |
| 45 | 1000x900 | 18.0 | 16.8 | 600 |
| 46 | 1100x700 | 19.2 | 14.4 | 1000 |
| 47 | 1100x800 | 19.2 | 15.6 | 800 |
| 48 | 1100x900 | 19.2 | 16.8 | 700 |
| 49 | 1100x1000 | 19.2 | 18.0 | 600 |
| 50 | 1200x700 | 20.4 | 14.4 | 1345 |
| 51 | 1200x800 | 20.4 | 15.6 | 1160 |
| 52 | 1200x900 | 20.4 | 16.8 | 975 |
| 53 | 1200x1000 | 20.4 | 18.0 | 790 |
| 54 | 1200x1100 | 20.4 | 19.2 | 605 |
| 55 | 1400x800 | 22.8 | 15.6 | 1590 |
| 56 | 1400x900 | 22.8 | 15.8 | 1405 |
| 57 | 1400x1000 | 22.8 | 18.0 | 1220 |
| 58 | 1400x1100 | 22.8 | 19.2 | 1035 |
| 59 | 1400x1200 | 22.8 | 20.4 | 850 |
| 60 | 1500x900 | 24.0 | 16.8 | 1620 |
| 61 | 1500x1000 | 24.0 | 18.0 | 1435 |
| 62 | 1500x1100 | 24.0 | 19.2 | 1250 |
| 63 | 1500x1200 | 24.0 | 20.4 | 1065 |
| 64 | 1500x1400 | 24.0 | 22.8 | 695 |
| 65 | 1600x1000 | 25.2 | 18.0 | 1650 |
| 66 | 1600x1100 | 25.2 | 19.2 | 1465 |
| 67 | 1600x1200 | 25.2 | 20.4 | 1280 |
| 68 | 1600x1400 | 25.2 | 22.8 | 910 |
| 69 | 1600x1500 | 25.2 | 24.0 | 725 |
| 70 | 1800x1100 | 27.6 | 19.2 | 1895 |
| 71 | 1800x1200 | 27.6 | 20.4 | 1710 |
| 72 | 1800x1400 | 27.6 | 22.8 | 1340 |
| 73 | 1800x1500 | 27.6 | 24.0 | 1155 |
| 74 | 1800x1600 | 27.6 | 25.2 | 970 |
| 75 | 2000x1200 | 30.0 | 20.4 | 2140 |
| 76 | 2000x1400 | 30.0 | 22.8 | 1770 |
| 77 | 2000x1500 | 30.0 | 24.0 | 1585 |
| 78 | 2000x1600 | 30.0 | 25.2 | 1400 |
| 79 | 2000x1800 | 30.0 | 27.6 | 1030 |
