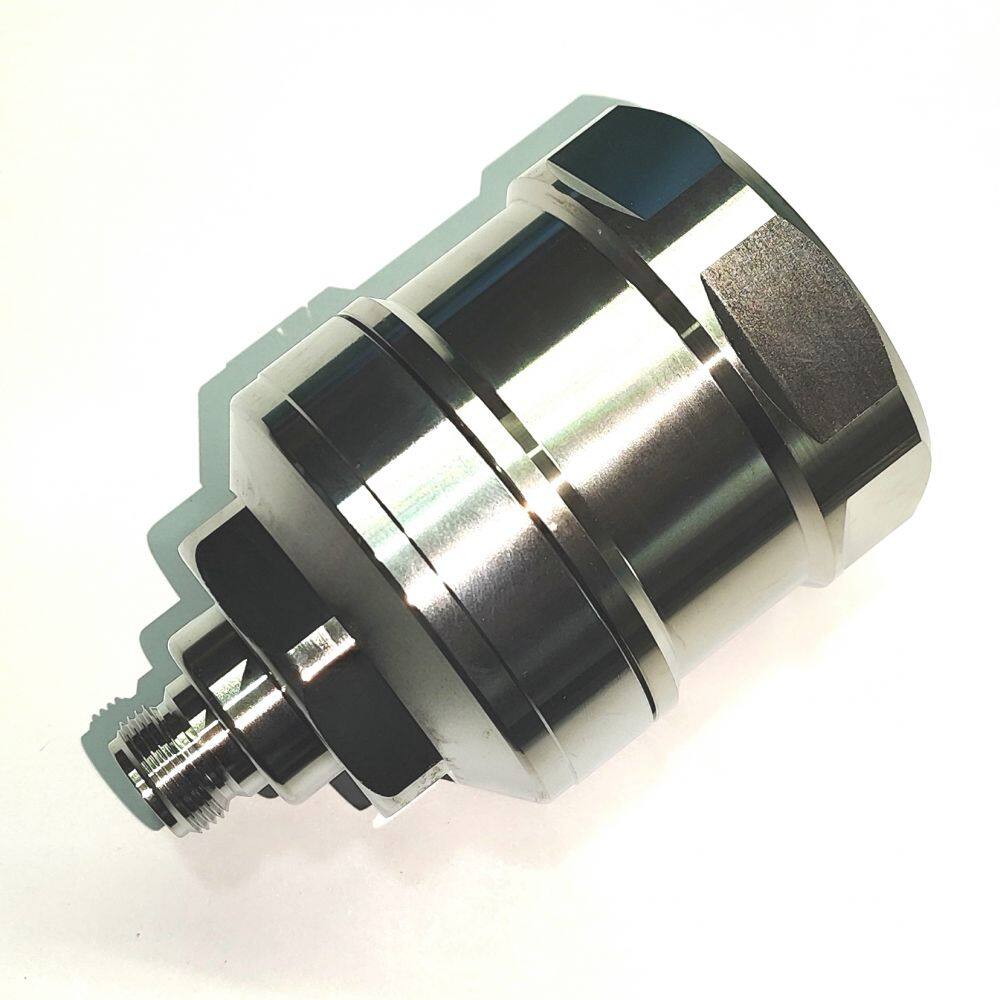

N Female Connector for 1-5/8" Radiating Cable

N Female Connector for 1-5/8" Radiating Cable

These high performance coaxial cable connectors are designed specifically to provide the highest quality connector-cable interface . The connectors provide outstanding value to users because they permit quick, easy and reliable installation at any location. They attach to prepared cable in one piece assuring error-free attachment. All connectors are fully tested for mechanical and electrical compliance specifications. They are available in all popular cable sizes in both type N 、DIN and 4310 interface.

FEATURES / BENEFITS

• Fast and Easy Installation

• Best in class PIM performance

• Low VSWR

• Totally Waterproof - Assures safe, long term operation in the harshest of environments.

• RoHS (EU) and CRoHS (China) compliant .

Material and Plating

1. Inner Conductor Pin..............................................................................Brass / Silver Plating

2. Inner Conductor Socket.......................................................................Tin Bronze / Silver Plating

3. Insulator.....................................................................................................PTFE/TPX

4. Body & Outer Conductor.....................................................................Brass / Trimetal Plating

Electrical Specifications

1. Characteristics Impedance..................................................................50 Ohm

2. Frequency Range....................................................................................DC~2.7GHz

3. Insulation Resistance.............................................................................≥5000MΩ

4. Dielectric Withstanding Voltage........................................................2500V rms

5. Operating Voltage..................................................................................1500V rms

6. Center contact resistance....................................................................≤1.0 mΩ

7. Outer contact resistance......................................................................≤0.25 mΩ

8. Insertion Loss...........................................................................................≤0.10dB

9. VSWR..........................................................................................................≤1.10

10. PIM3(2*43dBm)...................................................................................... ≤-155dBc

Environmental & Mechanical Specifications

1. Durability (matings)...............................................................................≥500 cycles

2. Mechanical Shock Test Method........................................................ MIL-STD-202, Method 213, Test Condition D

3. Vibration Test Method...........................................................................MIL-STD-202, Meth. 204, Cond. A

4. Temperature Range...............................................................................-65°C to +85°C

5. RoHS............................................................................................................Compliant
