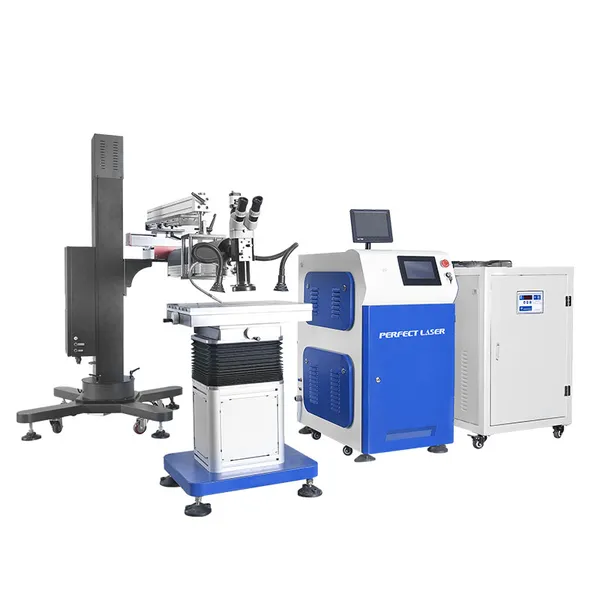

Help Center400W Suspend-arm Type Industrial Mould Repair YAG Laser Welding Machine
Related Products
-
2000W Handheld All Metal Fiber Laser Welding Machine With Auto Wire FeederUS$ 6700 - 7200MOQ: 1 Unit -
1.5KW Air Cooling Small Hand-held Portable Fiber Laser Welding MachineUS$ 4000 - 4500MOQ: 1 Unit
-
1200w Portable Handheld Metal Laser Welding / Cutting / Cleaning 3 in 1 Industrial Small Fiber Laser Welding MachineUS$ 3600 - 4000MOQ: 1 Unit
-
200W High Speed Precision Scanning Plastic Laser Welding Machine for Small Flat Plastic PartsUS$ 26900 - 27500MOQ: 1 Unit
-
3 Axis Automatic CCD Large Format Fiber Laser Beam Li-battery Soldering Welding MachineUS$ 24500 - 24900MOQ: 1 Unit
Features:
1. The introduction of German technology, the user-friendly design of whole machine, is more suitable for all kinds of large and medium mold repair.
2. This types of welding machine use of British imports of ceramic condenser cavity, with high reflectivity, corrosion resistance, high temperature, the service life is up to 8-10 years, xenon lamp life of 800 million times.
3. The welder use of the world's most advanced high-speed LCD light valve filter automatic protection system, eliminating the time in the work of the eye irritation.
4. This types of welding machine with a cross-cursor stereoscopic microscope, the welding position to enlarge 10 times, (optional 15 times, 20 times). Cross the center of the cursor and the laser spot center overlap, easy to locate.
5. The welder with high-power integrated chiller, to ensure that the whole machine for a long time high-power stable working conditions.
6. Parameter adjustment using intelligent handle remote control, simple operation.
7. 12 directions can be adjusted controlled by computer, this types of welding machine is suitable for all kinds of mold repair welding.
Technical data:
|
Model |
PE-W600D |
Input voltage |
Three-phase four wire system，380V±5% |
Maximum input power |
16KW |
All mirror |
reflectivity≥99.7% |
Power feedback type |
current feedback |
Condenser cavity |
Gold single cavity design, double lamp single rod |
Laser wavelength |
1.064μm |
Beam divergence angle |
≤8mrad/m |
Peak output power |
400W |
Laser head adjustment |
360 degree |
Pulse frequency |
1~150Hz |
pulse width |
0.1~20ms |
Current regulation |
50-500A |
Beam expander |
3 times |
Focal spot diameter |
0.2-2mm |
Cantilever stretch length |
900mm |
Cantilever up and down travel |
1000mm |
Cantilever XY electric stroke |
150*150mm |
Laser cavity length |
600mm |
Table size |
X*Y=500mm*350mm |
Table travel |
200mm |
Table XY hand travel |
250*120mm |
Display mode |
CCD Camera |
Positioning mode |
Red dot pointer |
