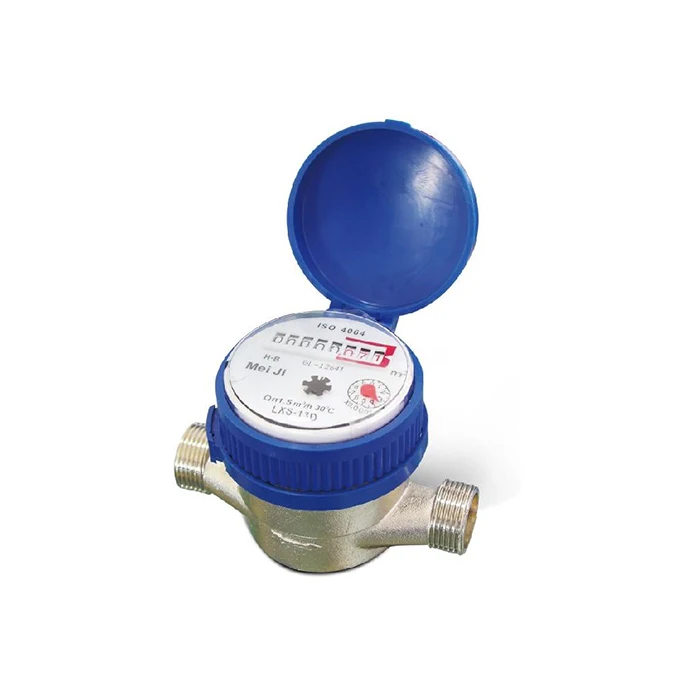

Measuring the total volume of portable water passing through the pipeline.
It can be equipped with pulse output assembly (reed switch).
Feature:
Compact design, light weight, magnet transmission register which could be rotation in 360°for convenient reading.
Note: 1.The water mwter complies with the standard of <>(ISO4064-1~3:2005,IDT)
2. For hot water up to 90℃ is available on request.
Metrological requirements:
Temperature class:for cold water:T30 , for hot water:T30/90
Water pressure class:MAP10 or MAP16 on request
Pressure-loss class:Δp63
Sensitivity to the irregularity in the upstream velocity fields class:U10
Sensitivity to the irregularity in the downstream velocity fields class:D5
Maximum permissible error:
1)In the lower zone(Q1≤Q<Q2)±5%
2)In the upper zone(Q2≤Q≤Q4): for water temperature up to 30℃
±2% from 30℃ up to 90℃ ±3%
