DN50 PN16 Cast Steel Triple Function Air Release Valve

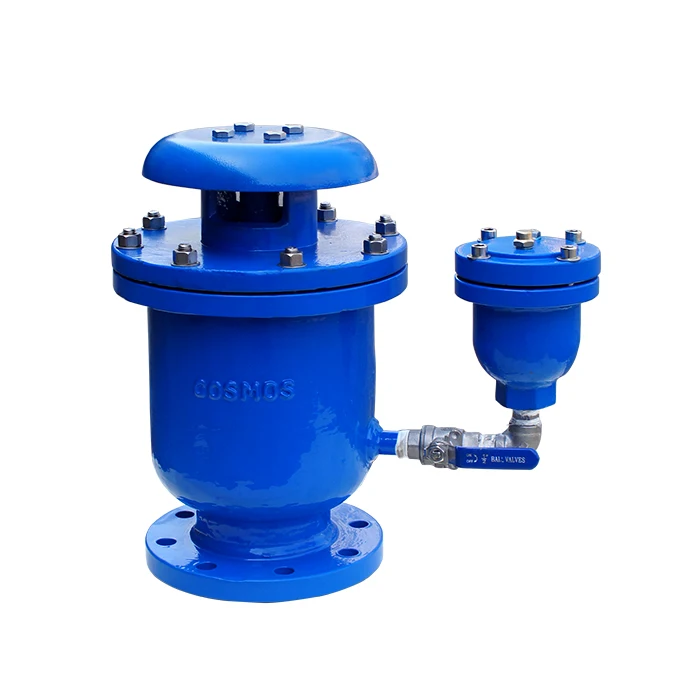

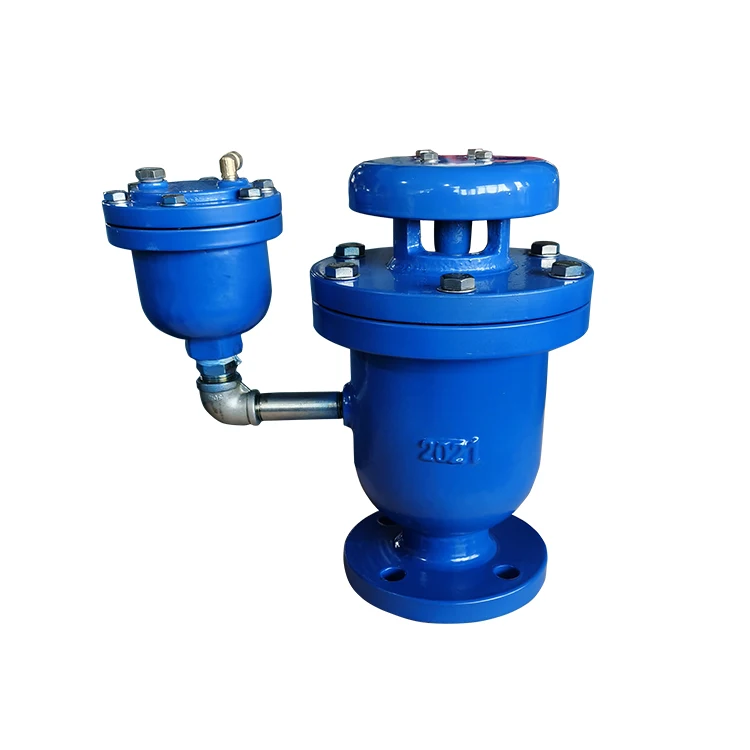

DN50 PN16 Cast Steel Triple Function Air Release Valve photo-1
US$ 650.00 - 700.00 MOQ: 50 Tons
Key Specifications
Get Latest Price
Brand Name:
MIDAS
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN,QINGDAO,SHANGHAI
Delivery Detail:
15 days
Brand Name MIDAS
Place of Origin China

The triple function air valve is installed at the pump outlet or in the water supply line to remove a large amount of air from the pipe or discharge a small amount of air collected at a higher level of the pipeline into the atmosphere, so as to improve the efficiency of the pipeline and the pump. Once in case of negative pressure inside the pipe, the valve will quickly absorb the outside air to protect the pipeline from damage caused by negative pressure
Size
DN40mm~DN400mm
Body Material
Ductile iron GGG40/50 /Cast Iron GG25/Carbon Steel
Standard
EN1074-4, BS, ANSI, DIN, JIS
Pressure
PN10, PN16,PN25
Application
Industrial Usage, Water Industrial Usage, Household Usage
Coating
Internal and external with fusion bonded epoxy coating. min250μm or liquid epoxy painting.
Packaging
Plywood case
