Tyre shredder
The whole tire recycling plant will be controlled by the PLC, all the materials will be process inside of machines, there is REAL ZERO POLLUTION. 1 labor, 1 engineer can operate all the machines, no need to operate the machines, just control the PLC. the machines can protect the machines, work the machines and keep the machines work smoothly.
Double shaft tire shredder recycling machine including the under :
1. truck tire debeader
To remove the steel wire from the beader.
2. Tire shredder machine
The tyre shredder mahcine is assembled with the replaceable cutter, to save offtime . improve the efficiency of working, meanwhile, the discharge size is controlled by the rotorary screen.
3. Tire rasper
To remove the less and thin steel wire from the rubber.
4. rubber mulch machine
to grind the rubber material from 1-9 mm.
meanwhile, there is fit with the Nylon collection device and dust purify system.
5. swing vibration table
To sort the different size material. meanwhile, there is set with the ton bag collector.
The whole system is equipped with the filter bag dust collection system to control the dust.
Characters
1. Full automatic just operate the PLC controller of cabinet.
2. there is no dust pollution during processing.
3. integrated type to save the space
4. energy saving 1/3 than traditonal type.

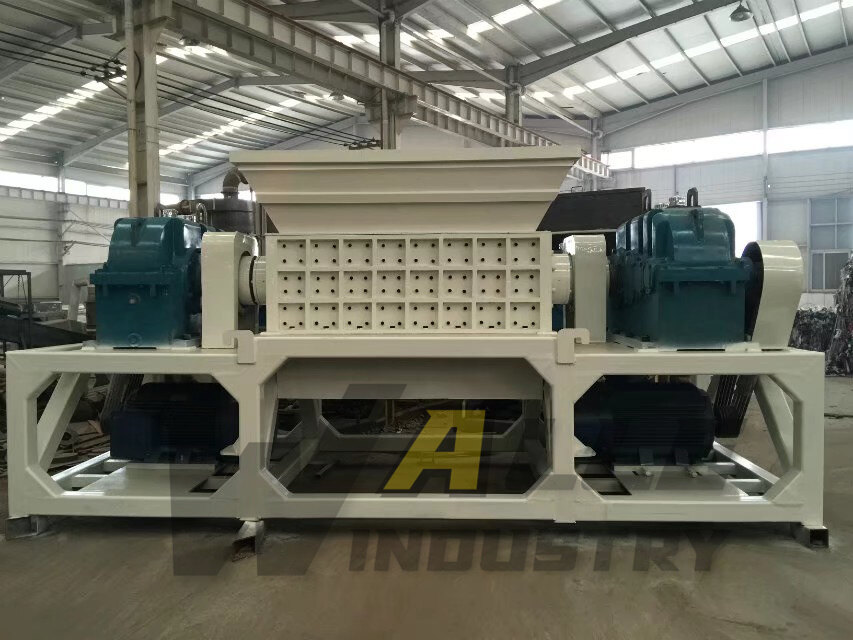

Our double shaft shredders have the following features:

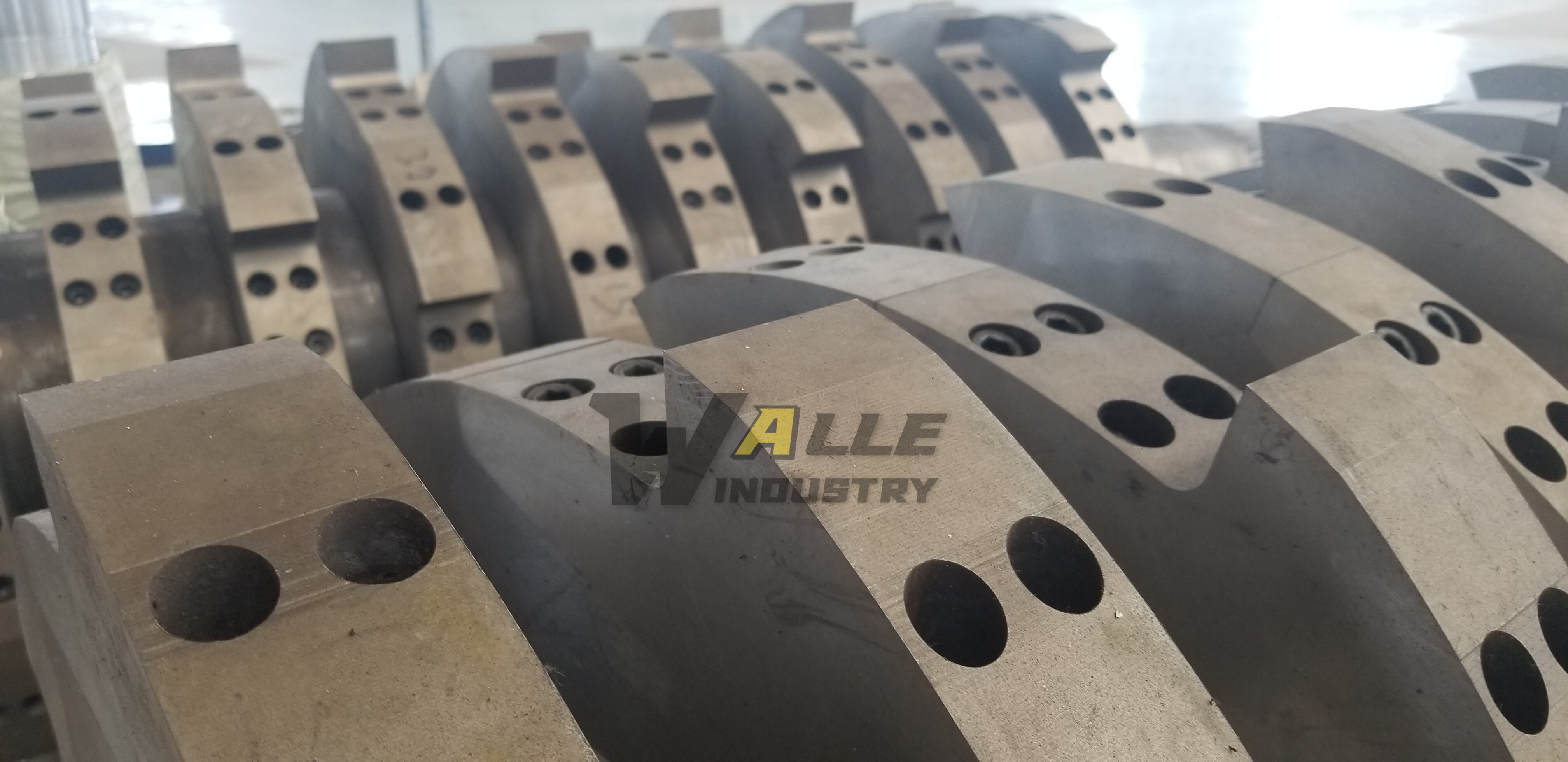

1-The blade is made of the high alloy H13 9SiCr, which has high strength and toughness and is difficult to break.

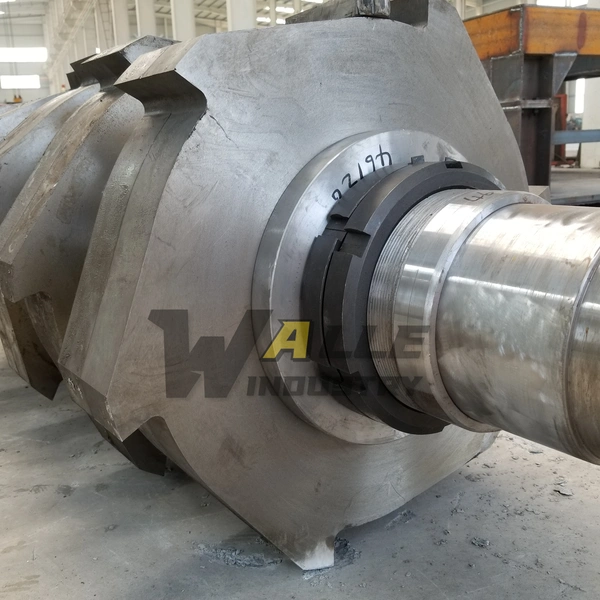

2-The cutter of the K-rotor and D-rotor are made of H13, and the main body is made of killed steel.
3-The main electrical components are manufactured by well-known companies.
4-Automatic protection is designed to avoid machine overload and jamming.
5-High torque, low speed, low noise, and high efficiency.
6. Human's engeering and scientific design.
| Type | power | Cutter Qty PCS | reducer | chamber mm | feeding port | overall size mm | weight T | capacity (T/h) |
| WL-800 | 15kw*2 | 30 | 400 | 600*388 | 1000*766 | 1820*800*1930 | 2.1 | 0.5-0.8 |
| WL-1000 | 22kw*2 | 20 | 500 | 640*588 | 1170*990 | 3260*1300*2370 | 3.5 | 1-1.5 |
| WL-1200 | 37kw*2 | 30 | 355 | 1200*788 | 1600*1200 | 4700*2000*2700 | 8 | 2.5-3 |
| WL-1500 | 55kw*2 | 30 | 400 | 1500*1188 | 1900*1450 | 5000*2200*2900 | 18 | 8-10. |
| WL-1800 | 75KW*2 | 36 | 400 | 1800*1188 | 2300*1450 | 5300*2150*3000 | 20 | 12-15. |
| WL-2000 | 90kw*2 | 24 | 450 | 2000*1188 | 2300*1500 | 5400*2150*3000 | 25 | 20-25. |
| WL-2200 | 110kw*2 | 28 | 240 | 2200*1578 | 3100*2500 | 6200*2700*3500 | 33 | 26-30 |
| WL-2400 | 132kw*2 | 24 | 240 | 2400*1678 | 3200*2600 | 7300*2800*3800 | 38 | 30-35. |
| WL-2800 | 185kw*2 | 28 | 260 | 2800*2000 | 3700*3000 | 7800*2800*3800 | 45 | 35-40 |
Applince:
waste tire recycling machine is used to different kind of the rubber product, plastic scrap, the blade is made of high strength alloy steels, has the characteristics of strong wear resistance and high strength, and runs in the same direction between the two shafts, and has the functions of tearing, extrusion and occlusion.The electrical part adopts delixi electric component programming control, which has the function of automatic detection and overload protection. Different models depend on different capacity and sizes of shredding different materials, it is suitable for the refinement of all kinds of materials with large volume and difficult to break, and has the advantages of uniform discharge and controllable size, such as tearing the automobile shell, tire, plastic barrel, plastic frame, plastic bottle, metal tank, metal barrel, woven bag, circuit board, paper, carboard and carton, etc. High efficiency, low speed, high torque, low noise.
1.waste car tire 2. Nylon tire 3. Steel tire 4. Radial Tyre
Waste Tire shredder machine
Applince:
waste tire recycling machine is used to different kind of the rubber product, plastic scrap, the blade is made of high strength alloy steels, has the characteristics of strong wear resistance and high strength, and runs in the same direction between the two shafts, and has the functions of tearing, extrusion and occlusion.The electrical part adopts delixi electric component programming control, which has the function of automatic detection and overload protection. Different models depend on different capacity and sizes of shredding different materials, it is suitable for the refinement of all kinds of materials with large volume and difficult to break, and has the advantages of uniform discharge and controllable size, such as tearing the automobile shell, tire, plastic barrel, plastic frame, plastic bottle, metal tank, metal barrel, woven bag, circuit board, paper, carboard and carton, etc. High efficiency, low speed, high torque, low noise.
1.waste car tire
2. Nylon tire
3. Steel tire
4. Radial Tyre
Characters:
1. Motor and reducer connected by gearbox, speed decreasing smoothly to protect motor and reducer.
2. Drive system adopts coupling units, good to adjust reverse force and total structure stability.
3. Cutter thickness and design could be changed accordingly for different material condition.
4. Electrical system adopts Siemens PLC for easy, reliable and safe control.
5. Detachable cutter head fixed on the cutting plate, which is change without taking out the shaft. 6. The material size is controlled by the outside fence
7. Chamber is modular type, which is easy and convenient to repair or maintain
8. Hydraulic autoamtic lubricating system to avoid break off the machine.
Henan walle industry co.,ltd established 2021. we do manufacture the accessories and tools before, we have expand our busienss to machinery manufacturer as market anwhile awards the international certificate like the ce,iso9001. walle industry is combined the sell and development together. we manufacture : weee recycling machine, copper cable wire recycling machine ,pcb board recylcing macine, lithium battery recycling equipment, hydraulic shear, metal baler, waste paper packaging machine, metal scrap recycling plant.refrigerator waste recycling machine, tire wastre recycling plant etc. our theory is that win to win to customers. our mission satisfy customer.
