Home > Construction & Decoration > Wire Mesh > Crimped Wire Mesh > Bar Steel Grating .Top Quality China Golden Supplier Hot Dip Galvanized Steel Grating Factory
Bar Steel Grating .Top Quality China Golden Supplier Hot Dip Galvanized Steel Grating Factory
US$ 1 - 200
MOQ: 10 Square Meters
Key Specifications
Get Latest Price
Brand Name:
BOLI
Place of Origin:
China
Model Number:
BOLI002 BOLI202
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin .shanghai. qingdao
Delivery Detail:
3 days
Related Products
-
Galvanized Steel Grating .Top Quality China Golden Supplier Hot Dip Galvanized Steel Grating FactoryUS$ 1 - 200MOQ: 10 Square Meters -
Galvanized Steel Grating .Top Quality China Golden Supplier Hot Dip Galvanized Steel Grating FactoryUS$ 1 - 200MOQ: 10 Square Meters
-
Galvanized Steel Grating .Top Quality China Golden Supplier Hot Dip Galvanized Steel Grating FactoryUS$ 1 - 200MOQ: 10 Square Meters
-
Hot Galvanized ZINC Bar Grating.Hot Dip Galvanized Bar Steel Grating .Top Quality China Golden Supplier Steel Grating FactoryUS$ 1 - 200MOQ: 10 Square Meters
-
Hot Galvanized ZINC Bar Grating.Hot Dip Galvanized Bar Steel Grating .Top Quality China Golden Supplier Steel Grating FactoryUS$ 1 - 200MOQ: 10 Square Meters
Brand Name
BOLI
Place of Origin
China
Model Number
BOLI002 BOLI202
Technique
Welded
Application
Screen
Surface Treatment
Galvanized
Wire Gauge
20*3mm, 25*3mm, 30*3mm, 32*3mm, 40*3mm, 50*3mm, 60*3mm, 70*3mm 20*4mm, 25*4mm, 30*4mm, 32*4mm, 40*4mm, 50*4mm, 60*4mm, 70*4mm 20*5mm, 25*5mm, 30*5mm, 32*5mm, 40*5mm, 50*5mm, 60*5mm, 70*5mm
Material
Hot galvanized steel .Stainelss steel,Aluminum.brass.copper.titanium.Titanium plate
Mesh Size
30*100mm, 40*100mm, 50*100mm, 30*50mm, 40*50mm, 50*50mm, 30*30mm, 34*38mm
Hole Shape
Square

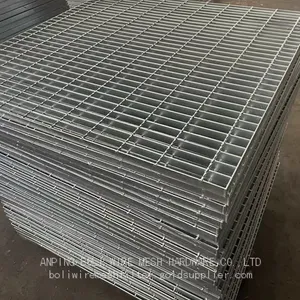

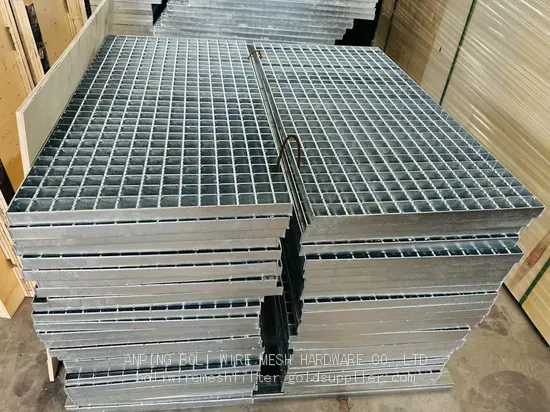

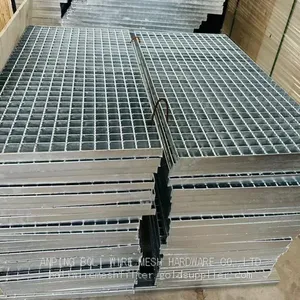

BOLI Steel grating typically consists of parallel and perpendicular steel bars, with the perpendicular bars welded or locked into place by various methods such as welding, riveting, or swaging. The design of the grating allows for the passage of air, light, and liquids while providing structural support.
Steel grating is extensively used for industrial flooring in factories, warehouses, manufacturing facilities, and industrial plants. Its robust construction provides a stable and safe walking surface for workers while allowing ventilation, drainage, and the passage of light and air.
Production name |
BOLI Steel grating |
Material |
Carbon steel, Stainless steel, Aluminum |
Surface treatment |
Hot dipped galvanized, Spray-painting, Polished and powder coated |
Bearing Bar type |
Flat bar, Serrated bar, I-bar, inserting steel grating etc |
Beaing bar size |
20*3mm, 25*3mm, 30*3mm, 32*3mm, 40*3mm, 50*3mm, 60*3mm, 70*3mm 20*4mm, 25*4mm, 30*4mm, 32*4mm, 40*4mm, 50*4mm, 60*4mm, 70*4mm
20*5mm, 25*5mm, 30*5mm, 32*5mm, 40*5mm, 50*5mm, 60*5mm, 70*5mm
|
Mesh size |
30*100mm, 40*100mm, 50*100mm, 30*50mm, 40*50mm, 50*50mm,
30*30mm, 34*38mm
|
Use to |
flooring, catwalk, decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and heavy equipment areas, etc. |
BOLI WIRE MESH As a manufacture, Cowan specializes in producing different kinds of wire mesh fence & Livestock fence & Wire Mesh Cages. Since already has 12 years of experience, now we can finish Cowan is well-equipped to complete International Government Big Tenders, even we have 4-years' experience to cooperate with the Fortune 500 Companies. Cowan Wire mesh fence like chain link fence, 358 anti-climb fence, 3D welded mesh fence belongs to the top selling products; Cowan Livestock fence like cattle yards, cattle crush, corral panels,sheep panels and field fence (Hinge type & Fixed knot type & Square deal type) are very famous; Cowan Wire mesh cages like Wire Mesh Container, Forklift Safety Cages, Dog kennels and Chicken cages selling very well. At Cowan Responsibility, Diligence, Wisdom, Humility, Innovation, Excellence, Introspection have always been our standards and guidelines for doing things, and we will do better and better.
steel grating specification- galvanized road drainage grates
panel size available(black grating): 1000x5800mm or 1000x6000mm
| Bearing bar pitch | Cross bar pitch | load steel size ( Width ×Thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing bar pitch | Cross bar pitch | load steel size (Width ×Thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
3. Anping metal walking grates introduction-- galvanized road drainage grates
| Bearing bar type | Flat bar | I bar | Serrated bar | |
| Cross bar type | Twisted bar | Round bar | flat bar | |
| Production process | welded | Pressure locked | ||
| Surface treatment | Self-colour | Galvanized | painted | |
| application | Platform | walkway&floor | Trench cover | Steel stair treads |
| Suspended ceiling | Barrier fence |
bearing bar types:
surface treatment: mill finish,hot dip galvanized,painted
steel grating standard-- galvanized road drainage grates
| Steel Grating Standard | |||
| Steel Grating Standard | Steel Standard | Galvanizing Standard | |
| China Standard | YB/T 4001.1-2007 | GB700-88 | GB/T13912-2002 |
| USA Standard | ANSI/NAAMM (MBG531) | ASTM (A36) | ASTM (A123) |
| U.K. Standard | BS4592 | BS4360 (43A) | BS729 |
| Australia Standard | AS1657 | AS3679 | AS1650 |
| Deutsche Standard | DIN24537 | DIN17100-80 | DIN50976 |
