Home > Industrial Equipment & Components > Engine & Part > Engine > 292F Double Cylinder Air-cooled Diesel Engine Optional Keyway Shaft & Tapered Shaft

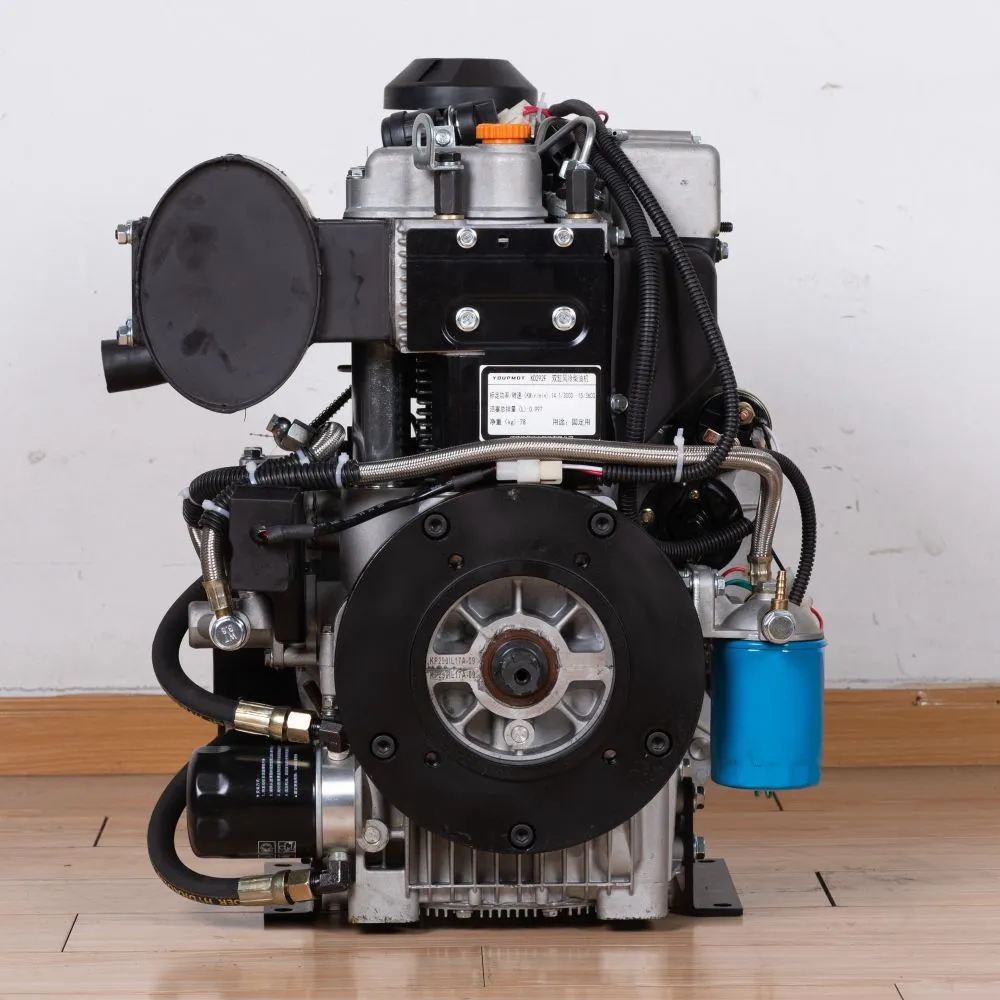

292F Double Cylinder Air-cooled Diesel Engine Optional Keyway Shaft & Tapered Shaft
Product Spotlights
1. 292F twin-cylinder air-cooled diesel, strong power & low fuel consumption
2. Two output shaft options: keyway shaft / tapered shaft for different machines
3. Direct injection combustion, stable operation with large torque reserve
4. Electric start available, easy startup in low temperature environment
2. Two output shaft options: keyway shaft / tapered shaft for different machines
3. Direct injection combustion, stable operation with large torque reserve
4. Electric start available, easy startup in low temperature environment
US$ 900
1 - 9 Set
US$ 880
10 - 49 Set
US$ 850
≥50 Set
Key Specifications
Get Latest Price
Type:
Combustion Engine
Warranty:
One year or 1000 hours of use
Fuel:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
30 days
Related Products
-
192F Diesel Engine 12hp Single Cylinder Air-cooled Diesel EngineUS$ 250 - 300MOQ: 10 Sets -
186FA Single Cylinder Air-cooled Diesel Engine 10hp Diesel EngineUS$ 220 - 230MOQ: 10 Sets
-
16HP 12KW 2V80F Water-cooled Double Cylinder Diesel EngineUS$ 800 - 850MOQ: 10 Sets
-
18hp Water-cooled Diesel Engine 2V80F Diesel EngineUS$ 850 - 900MOQ: 10 Sets
-
20hp Air-cooled Diesel Engine 292F Diesel EngineUS$ 850 - 900MOQ: 10 Sets
Type
Combustion Engine
Warranty
One year or 1000 hours of use
Fuel
Diesel
Speed
High Speed
After-sales Service
Send parts with next order
Ignition Mode
Ignition
Cooling Cylinder
Air-Cooled
Intake Pressure Impulse
Naturally Aspirated
Piston Movement
Reciprocating
Number of Strokes
Four-Stroke
Cylinder Arrangement Form
L
Number of Cylinders
Double-Cylinder
Transport Package
Carton
Specification
292FE
Trademark
Belon Power
Origin
Chongqing, China
292F Double Cylinder Air-cooled Diesel Engine Optional Keyway Shaft & Tapered Shaft
| Model | 292F |
| Type | 2 cylinders，V Type，Air Cooled，4 strokes |
| Bore*Stroke（mm) | 92x75 |
| Rated Power/Speed（KW/RPM) | 14/3000,15/3600 |
| Max. Power/Speed（KW/RPM) | 15.5(21)/3000,16.5(22.5)/3600 |
| Rated Speed（RPM) | 3000/3600 |
| Compression Ratio | 19:1 |
| Max Torque/Speed（Nm/Rpm) | 50.3/2700 |
| Displacement(cc) | 997 |
| Fuel Consumption(g/kw.h) | ≤270 |
| Oil Tank Capacity（L) | 2.75 |
| Fuel Grade | Diesel 0#（summer）；-10#（winter） |
| Oil Grade | SAE10W30(CD grade or above） |
| Start Mode | Electric |
| Output Model | Crankshaft output |
| Size（mm) | 582x462x582 |
| Net Weight（kg) | 78 |
