Paper Isolation Production Recycling Machine Insulation Fiber Making Production Line
US$ 4500 - 98500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
walle industry
Place of Origin:
China
Model Number:
WL-300 WL-500 WL-1000 WL1500 WL3000
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port,China
Delivery Detail:
30 days
Related Products
-
Waste Paper Insulation Fiber Making Machine Paper Insulation Fiber Making EquipmentUS$ 4500 - 98500MOQ: 1 Set -
Industrial Paper Shredder Paper Isolation Fiber Making Machine Paper Insulation Fiber Making EquipmentUS$ 4500 - 98500MOQ: 1 Set
-
PCB Cable Recycling MachineUS$ 18600MOQ: 1 Set
-
Waste Apper Cellulose Fiber Making Mahcine Paper Cellulose Isolation Fiber Making EquipmentUS$ 4500 - 98500MOQ: 1 Set
-
Walle Industry Tire Mulching Machine Tire Rasper Tire Rubber Shredder MachineUS$ 18500 - 56200MOQ: 1 Set
Brand Name
walle industry
Place of Origin
China
Model Number
WL-300 WL-500 WL-1000 WL1500 WL3000
Type
Other, waste paper
waste apper cellulose fiber making mahcine paper cellulose isolation fiber making equipment
Waste paper fiber making machines are widely used in various waste paper recycling. This is a new type of dust-free fiber making machine with low pollution and high efficiency.
Waste paper dry pulping equipment is mainly used in waste newspapers, books, cardboard, corrugated paper, etc., which can extract the fibers inside to improve resource utilization.
Pre-treatment of waste paper, waste paper crushing, dry beating output, pulse dust removal, magnetic separator, hydraulic packing.
Double Shaft Shredder
The dual shafts shredder is used for tearing the paper bulk , waste book, magazine scrap, used carton etc. the outcomes about 2-4 cm

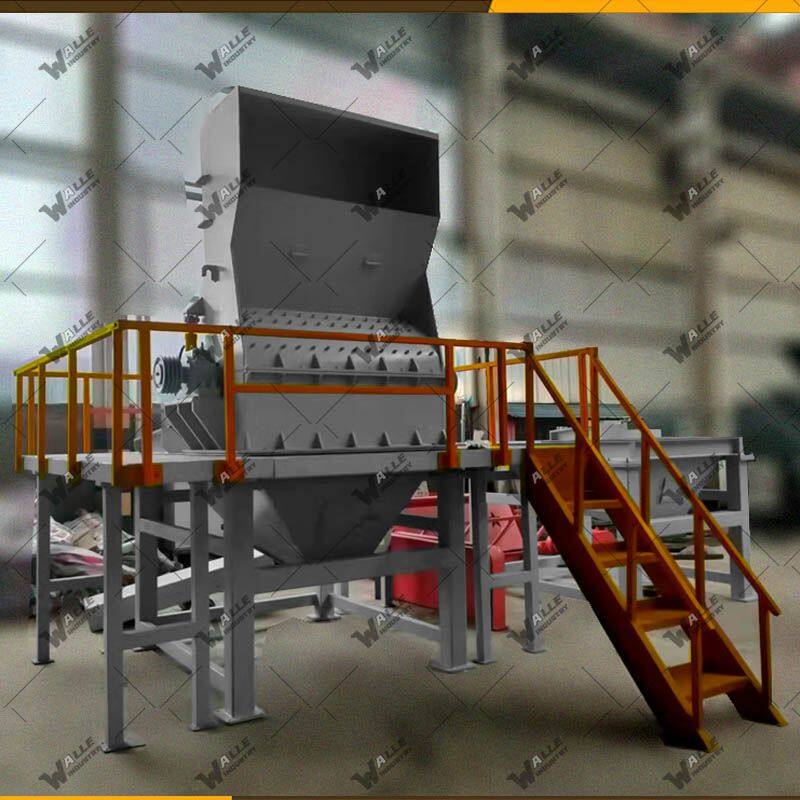

Fiber specialized crusher

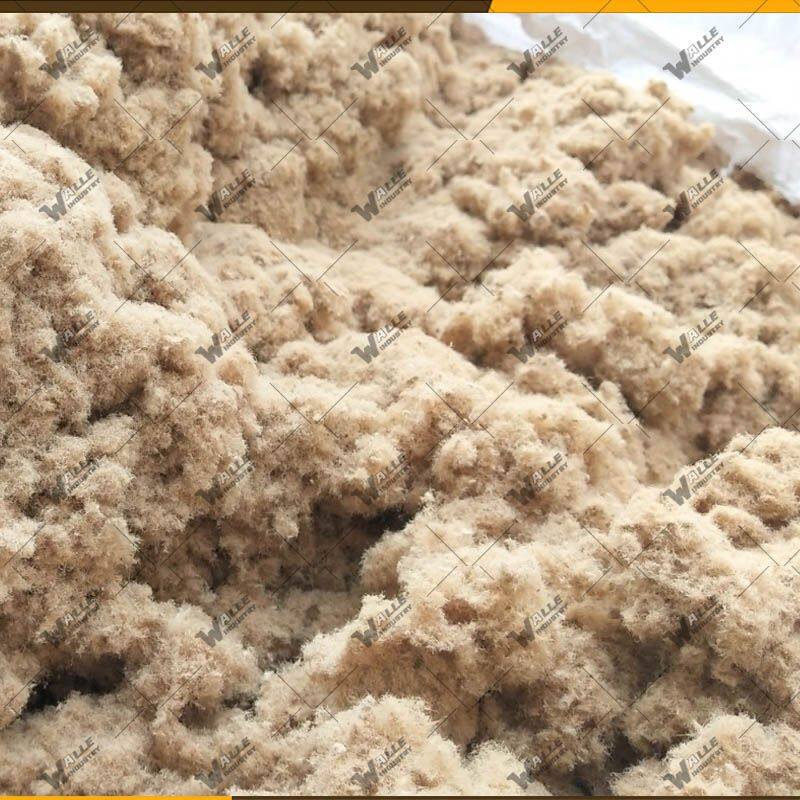

This machine is for the cellulose fiber making, the ends product as customer requirement. from 1-6 mm adjustable
Double screw conveyor and dust catcher system
The fiber outcomes is controlled by the double screw conveyors. meanwhile to avoid the dust fly in the air, the impulse dust catching system has been assembled with the system
1. The blade of the shredder is made of high manganese steel, which has a long service life
2. Adopt pulse dust removal system, no dust pollution
3. The size of the finished product can be adjusted according to the size of the screen hole
4. The whole production line has a compact structure, reasonable design, and reduces floor space.
Technical parameters:
| TYPE | 500 | 1000 | 1200 | 1300 | 1500 | 1800 |
| ROTAR DIA MM | 230 | 720 | 750 | 820 | 950 | 1200 |
| CUTTER QTY PCS | 34 | 70 | 98 | 126 | 140 | 160 |
| THICKNESS OF CUTTER MM | 8 | 8 | 8 | 8 | 8 | 8 |
| FEEDING PORT MM | 600*350 | 800*350 | 1150*400 | 1000*400 | 1300*450 | 1800*500 |
| ROTARY SPEED RPM | 2980 | 2200 | 2200 | 2000 | 2000 | 1600 |
| POWER KW | 55 | 75 | 75 | 90 | 110 | 180 |
| BLOWER POWER KW | 3 | 7.5 | 11 | 11 | 15 | 18.5 |
| CAPACITY KG/H | 600-800 | 1500-2000 | 2500-3000 | 3000-4000 | 4500-5500 | 5000-8000 |
