Line Tension Meter DB22-LTT

Line Tension Meter DB22-LTT thumbnail-1
Line Tension Meter DB22-LTT thumbnail-2
Line Tension Meter DB22-LTT thumbnail-3
Line Tension Meter DB22-LTT thumbnail-4
Line Tension Meter DB22-LTT photo-1

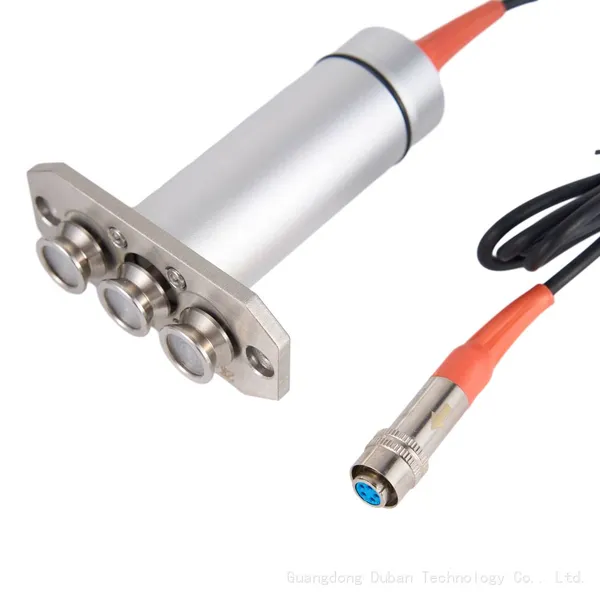

Line Tension Meter DB22-LTT photo-2
Line Tension Meter DB22-LTT photo-3
Line Tension Meter DB22-LTT photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
DUBAN
Place of Origin:
China
Model Number:
DB22-LTT
Contact Supplier Request Quote Chat Now
Guangdong Duban Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DUBAN
Place of Origin China
Model Number DB22-LTT

  • 【Product Descriptions】

    The DB22-LTT Line Tension Meter is a hand-held device which accurately measures the running as well as static tensions of a wide variety of process materials including yarns, fibers, wires, optical fibers, etc.


    【Product Features】


    * It employs the "three-roller principle" of tension measurement.

    * High accuracy and high resolution. Digital display with no guessing or errors.

    * With 4 measurement unit for selection and conversion, N, kg, lb, g.

    * Current Value, Max. Value, Peak Value, Min Value can be displayed at the same time.

    * With 10 minutes auto power off and manual power off.

    * The Meter takes 62 tension measurements per second and displays the average of these measurements over a user-       selected interval of 0.5, 1.0, 2.0 or 4.0 seconds, the Display Update Rate.

    * With data output function. Measurement data can be transmitted to computer by USB cable or Bluetooth adapter for various analysis.



  • 【Product Specifications】

    • Model
    		 DB22-LTT-200 DB22-LTT-500 DB22-LTT-1K DB22-LTT-2K DB22-LTT-5K DB22-LTT-10K DB22-LTT-20K

    DB22-LTT-50K
    Tension Range 0~0.2kgf 0~0.5kgf 0~1.0kgf 0~2.0kgf 0~5.0kgf 0~10.0kgf 0~20.0kgf 0~50.0kgf
    0~200gf 0~500gf 0~1000gf 0~2000gf 0~5000gf


    0~1.96N 0~4.9N 0~9.8N 0~19.6N 0~49N 0~98N 0~196N 0~490N
    0~0.44Lbf 0~1.1Lbf 0~2.2Lbf 0~4.4Lbf 0~11Lbf 0~22Lbf 0~44Lbf 0~110Lbf
    Resolution 0.001kgf 0.001kgf 0.001kgf 0.001kgf 0.01kgf 0.01kgf 0.01kgf 0.01kgf
    1gf 1gf 1gf 1gf 1gf


    0.001N 0.001N 0.001N 0.01N 0.1N 0.1N 0.1N 0.1N
    0.001Lbf 0.001Lbf 0.001Lbf 0.001Lbf 0.01Lbf 0.1Lbf 0.1Lbf 0.1Lbf
    Accuracy ±1.0% or better
    		 ±1.5% or better
    Gear spacing 40mm 105mm 210mm
    Unit
    		 kgf, gf, N, Lbf
    Measuring Principle Strain gauge
    Measuring Frequency 16 msec (62.5 samples/sec)

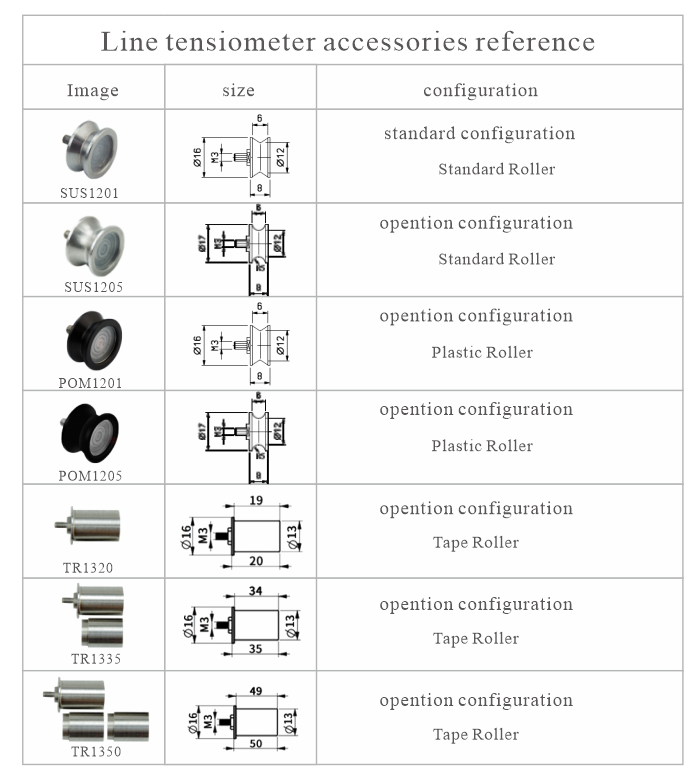

    Sensing Roller Deflection of Sensing Roller (max.) 0.2mm
    Overload Capacity 150% of Full Scale
    Temperature Coefficient Zero: less than +0.3% FS/°C Span: less than +0.01% FS/°C
    Display Blue Back light LCD
    Display Update Rate 0.5, 1.0, 2.0 or 4.0 seconds, dip-switch selectable
    Memory System Current Value, Max. Value, Peak Value, Min Value
    Over range Indicator Buzzer Alarm
    Power Off 10 Minutes Auto Power Off, Manual Power Off
    Data Output USB, Bluetooth
    Working Environment

    Temperature 0°C ~ 50°C
    Humidity
    Size 140×77×30 mm
    Power Supply
    		 4x1.5v AAA (UM-4) battery
    Host Weight
    		 130g (Not including Batteries)
    Probe Weight
    		 230 g



    Standard Accessories

    		 Main Unit

    Test Block

    Carrying Case
    Operation Manual

    Optional Accessories

    USB data output、Bluetooth
